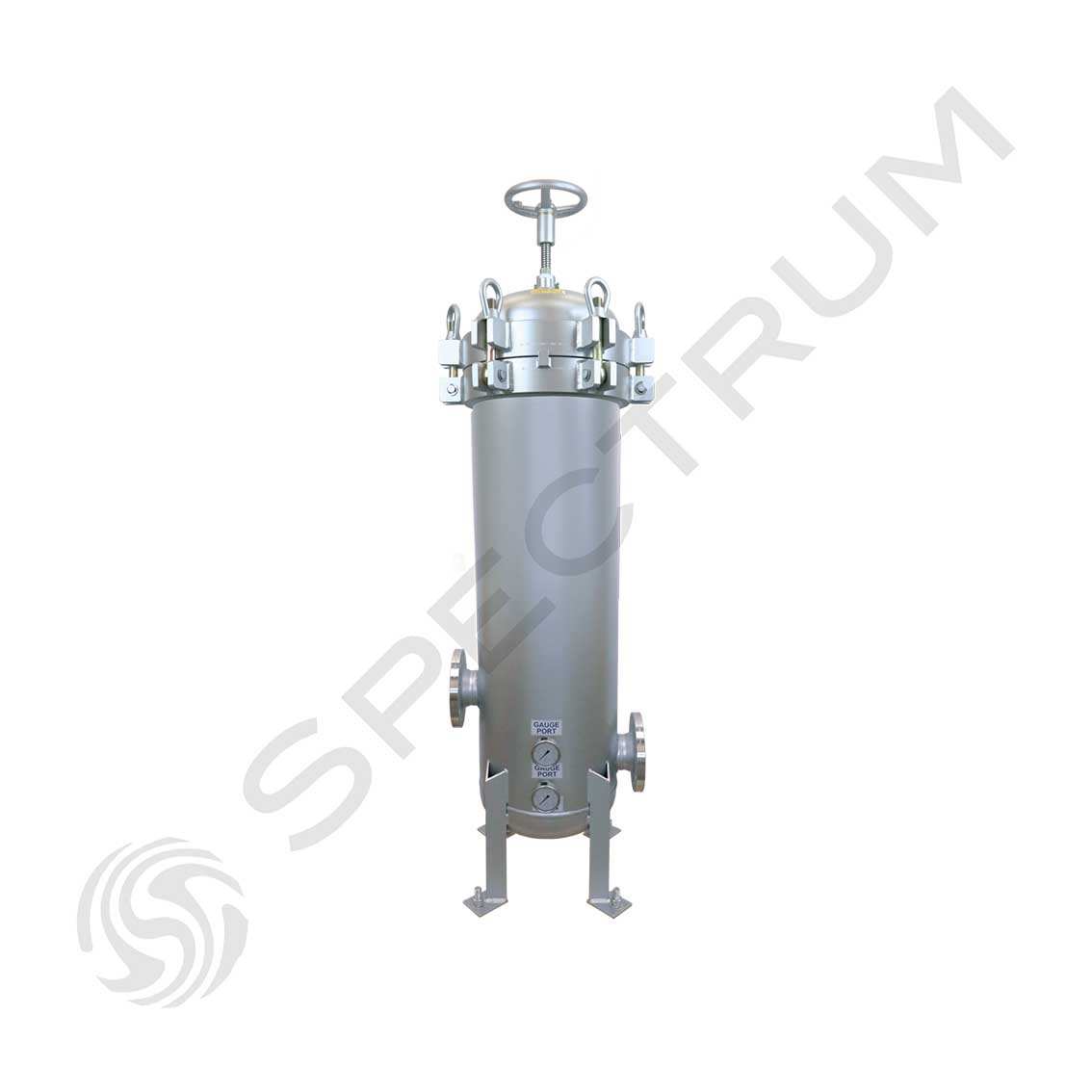

PFH-SPC-12-30-3F-GP-ML : SPECTRUM INOX Premier Filter Housing 12 X 30" 3" DN80 Flange 900 LPM

Product Description

* Flow rate based on 20 micron SPE pleated filter.

Material: 316L Stainless Steel
Configuration: 12 Cartridges (L: 30" x D: 2.5")
Port Size: 3" (DN80)
Seal: Buna-N
Temperature Rating (°C): 120
Max Pressure (bar):10
Flow Rate (lpm): 900
End-Cap Compatibility: AA / DOE / EH / EG

!Designed with the user in mind, the swing bolt and hinged lid or Davit arm assembly enables cartridge changeout to be achieved with no loose parts, heavy lifting or tools required. Manufactured with lids weighing up to 60 kg, these heavy-duty housings ensure all health and safety angles are covered by this Premier housing feature, whilst also providing reduced labour operation for engineers carrying out cartridge changeouts. Extensive stock holding, along with complete technical back up, ensures confidence in finding the correct housing for each application. All housings come complete with a universal plate which is capable of accepting both DOE and 222 fittings. The Premier range benefits operators with a swing bolts and hinged lid configuration which keep the head secured to the vessel during cartridge changeout. Additional drain ports also assist cartridge changeout allowing for complete emptying of the housing, while the supplied pressure gauges provide accurate differential pressure readings for filter monitoring. The 7 round housings accept seven cartridges in 30"" or 40"" with 2"" BSPM inlet and outlet connections with the 40"" being the first in the range to be available with 3"" flanged connection.

Key product features

•PED compliant and DWI approved
•PFH large multi-round housings with 4" or 6" flanges achieve flow capacities over 4100 lpm with minimal pressure loss
•Manufactured with heavy duty mounting legs which bolt to the floor for added security
•Swing bolt and davit arm head configuration for quick, easy and safe cartridge change-out
•Feature a top plate with tie rod threads to evenly spread compression over the spring seals making change-out easy.
•An optional universal housing adaptor will securely hold 222 and DOE cartridges
•Drains are 1/2" on 22 round and 3/4" on 36 and 52 round housings.
•The 22,36 and 52 round accept cartridges with an outer diameter of up to 2 5/8". For 2 3/4" diameter cartridges, change coding to 21,32 and 50 respectively.

Features & Information

•High Temperature installations
•High Pressure applications
•Industrial applications
•High flow capacity applications
