Water Flow Meter

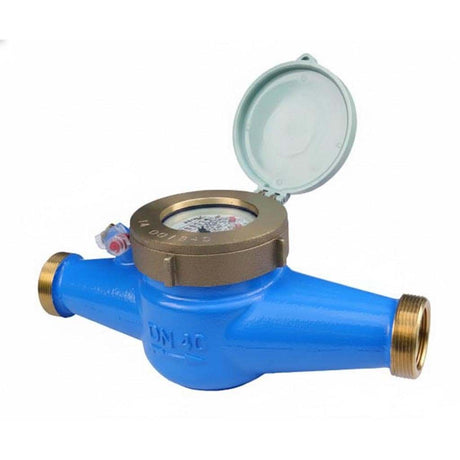

The MJ-SDC Multi-Jet Water Meter is a high-quality meter designed for cold water measurement. It comes with a dry dial, pulse output option, and 1/2" BSP fittings. Key features include:

• Frost-resistant dial and tamper-proof mechanism.
• MID Approved R80 T30 and WRAS Approved certifications.
• Capable of measuring up to 2.5 m³/hour.
• Includes nuts, tails, and washers for easy installation.
• Available with different pulse settings (1 litre/pulse, 10 litres/pulse, and 100 litres/pulse).

This meter is ideal for submetering, light industrial applications, and secondary billing.

The MJ-SDC is widely used in:

• Tenant billing for apartments and buildings.
• Monitoring filter life in water systems.
• Commercial building monitoring and connection to Building Management Systems (BMS).
• Municipal building water apportionment.
• Tracking water usage in industrial facilities.

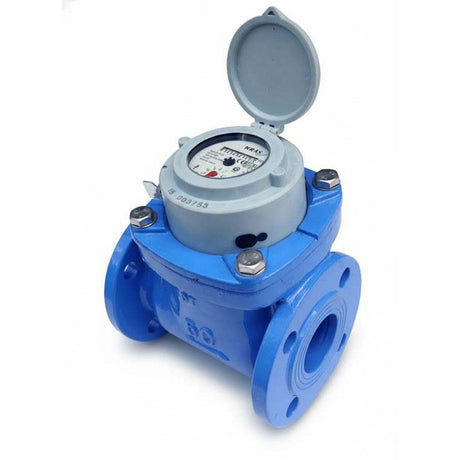

The WP-SDC Woltmann Helix Water Meter is a highly robust meter for bulk water measurement in higher flow rate applications. Its features include:

• Flanged PN16 epoxy-coated cast iron body.
• WRAS Approved and OIML MID Class 2 certified for accuracy and reliability.
• Wide measuring range with low starting flow and high overload capacity.
• Dry dial with large, visible digits, protected against condensation.
• Suitable for horizontal, vertical, and inclined installations.

Some standout specifications of the WP-SDC Meter include:

• Designed to handle up to 16 bar pressure.
• Approved for water up to 30°C (max 50°C).
• Features a removable measuring insert for easy maintenance.
• Allows for Reed Switch Pulser retrofitting with pulse settings of 10 litres/pulse, 100 litres/pulse, and 1000 litres/pulse.
• Minimal head loss and long-term measuring stability.

This meter is ideal for water distribution systems and industrial segment applications.

The choice depends on your application and water measurement needs:

• If you're measuring water for smaller-scale or secondary billing, the MJ-SDC Multi-Jet Meter is a great option. It’s compact, easy to install, and provides accurate readings in light industrial and submetering environments.
• For large-scale or bulk water measurement, the WP-SDC Woltmann Helix is the better choice. It handles higher flow rates, extreme pressure, and offers a broader measuring range.

Yes, both meters are designed for hassle-free installation:

• The MJ-SDC comes with nuts, tails, and washers, making it straightforward to connect to your system.
• The WP-SDC features a “drop-in design”, suitable for horizontal, vertical, and inclined positions. Its flanged connections ensure a secure and reliable fit in industrial applications.

Absolutely! Both meters meet stringent quality and safety standards:

• The MJ-SDC Multi-Jet Water Meter is MID Approved R80 T30 and WRAS Approved, ensuring it meets industry standards for water usage measurement.
• The WP-SDC Woltmann Helix Water Meter is OIML MID Class 2 certified, ensuring accurate bulk water measurement. It is also WRAS Approved, making it suitable for potable water.

Yes, both models are designed with durability in mind:

• The MJ-SDC has a frost-resistant dial to perform reliably in cold environments.
• The WP-SDC features an epoxy-coated cast iron body and anti-condensation dial, ensuring long-term functionality even in challenging industrial conditions.

Yes, both the MJ-SDC and WP-SDC meters offer a pulse output option:

• For the MJ-SDC, you can choose pulse configurations of 1 litre, 10 litres, or 100 litres per pulse.
• The WP-SDC offers pulse settings at 10 litres, 100 litres, and 1000 litres per pulse.

This feature is useful for connecting the meters to monitoring systems for real-time water usage tracking.

• The MJ-SDC Multi-Jet Water Meter is available starting at £80.60 (depending on size and specifications).
• The WP-SDC Woltmann Helix Water Meter starts at £327.47, ideal for bulk water applications.

Both meters offer excellent value for their specific applications.
