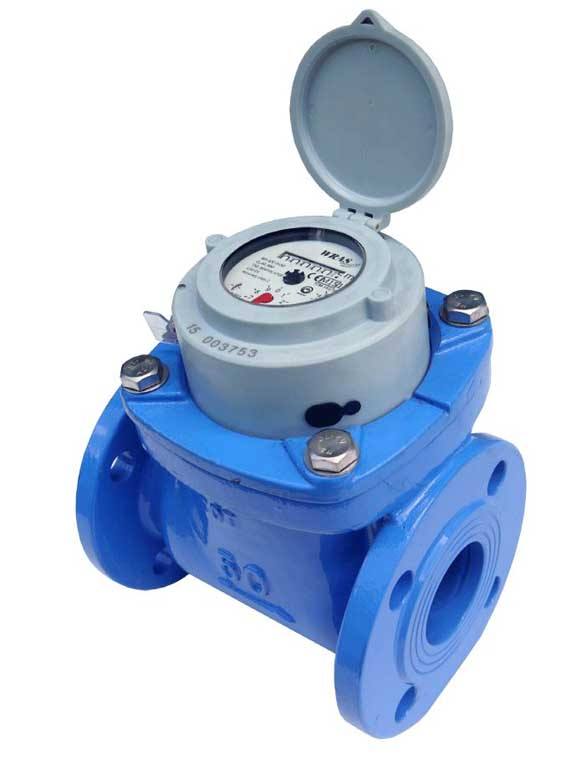

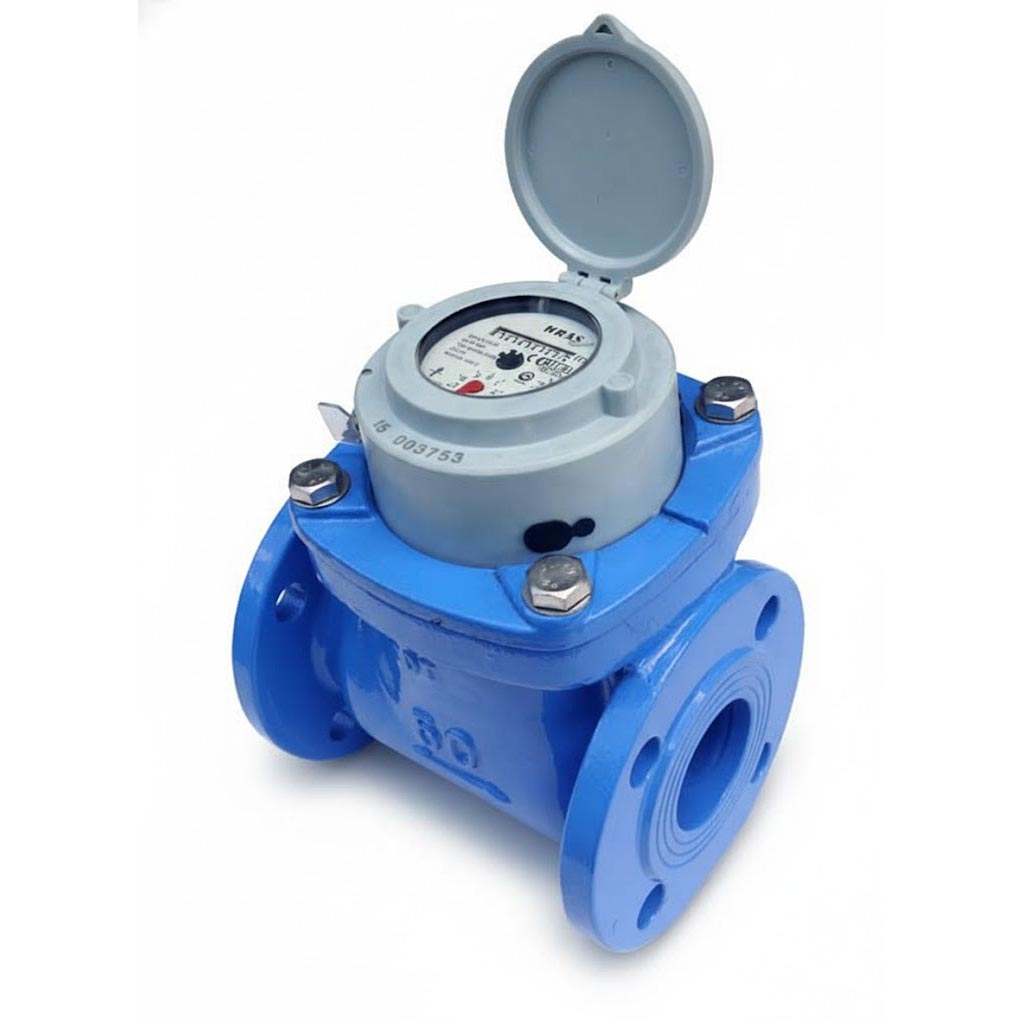

WP-SDC Woltmann Helix Water Meter (Cold) Dry Dial Flanged PN16

Product Description

DN50 Woltmann Helix Water Meter (Cold)
Dry Dial - Frost Resistant design
Flanged PN16
Epoxy Coated Cast Iron
WRAS Approved, OIML MID certified Cl 2

MODEL: OMEGA
METER TYPE WOLTMANN HELIX ( Bulk Meter)


Woltmann "Bulk" water meters are ideally suited to higher flow rate applications requiring an extended measuring range capable meter. Models feature a highly sensitive yet robust Helix insert mechanism which is capable of operation at relatively low flows with low velocity requirements, yet still able to cope with high overload flows. Meters are suitable for either horizontal, vertical and inclined installation position, depending on requirements.

Features

• Suitable for water distribution and industrial applications.
• Wide measuring range
• Portable Water Approved
• Maximum Pressure of 16 bar
• MID Approved R80 T30
• Suitable for water distribution and industrial applications
• Low starting flow, high overload capability
• Removable measuring insert "Drop in Design"
• Low head loss
• Long-term measuring stability
• Tamper Evident Seals
• Retrofittable with Reed Switch Pulser in two pulse value positions
• Dry Dial, counter protected from condensation
• Counter with large high visibility digits
• Approved for water up to 30º C (Max 50º C)
• Suitable for horizontal, vertical and inclined installation positions
