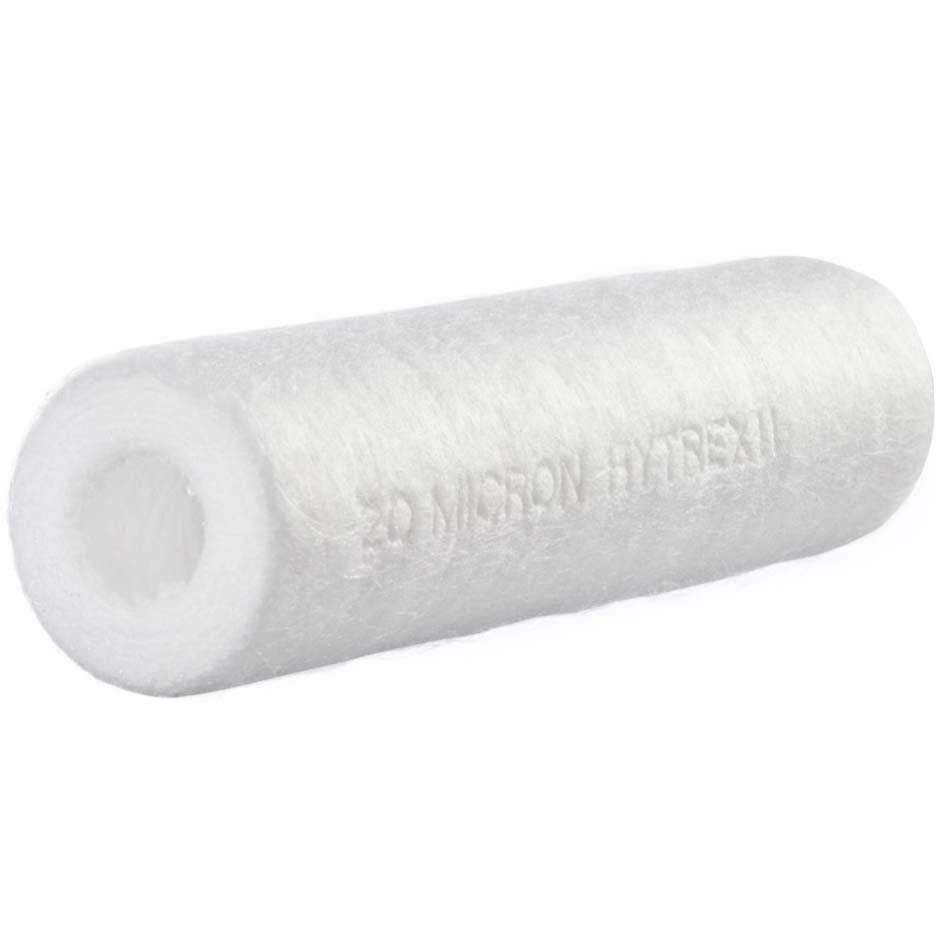

Veolia GX Hytrex II Filter

Product Description

The Hytrex depth cartridge filters are ideal for all-around industrial use in plating, chemical filtration, and potable water. Hytrex is popular for its robust design for applications where long life, high purity, and low change-out frequency are desired.

•True graded density media of polypropylene fibers to maximize particulate capture. Lower density at the surface of the filter with progressively higher density toward the center
•Exceptional performance in general applications with several end adaption options.
•No surface blinding (surface blinding causes flow reduction, which increases filter change outs)
•Broad chemical compatibility due to the Inert material.
•Exceptional dirt-holding capacity
•Pure 100% polypropylene construction
•No wetting agents, solvents, antistatic agents, or binders
•Made in the USA

Compliance

•US FDA 21 CFR compliant materials
•Article 3 of the EU framework Regulation No. 1935/2004/EC Safety requirements
•EU Plastics Regulation No. 10/2011 (may be used as intended in all compliant EU member states).
•Meets USP Class VI-121 C plastics criteria.
•NSF 61 and NSF 42 certified
•ISO 9001:2015 certified processes

For further details please see the product factsheet and/or product declaration.

Material of Construction
Filtration Media: Polypropylene
End caps and Adapters: Polypropylene
Dimensions
Nominal Outside Diameter: 2.50 inch (6.4 cm)
Nominal Inside Diameter: 1 inch (2.5 cm)
Operating Limits
Maximum Differential Pressure:35psi (2.4bar) at =100°F (38°C)
Maximum Temperature: 160°F (71°C) at =15psid (1.0bar)
Recommended Maximum Water Flow: 5 gpm (19L/min) per 10-inch length
