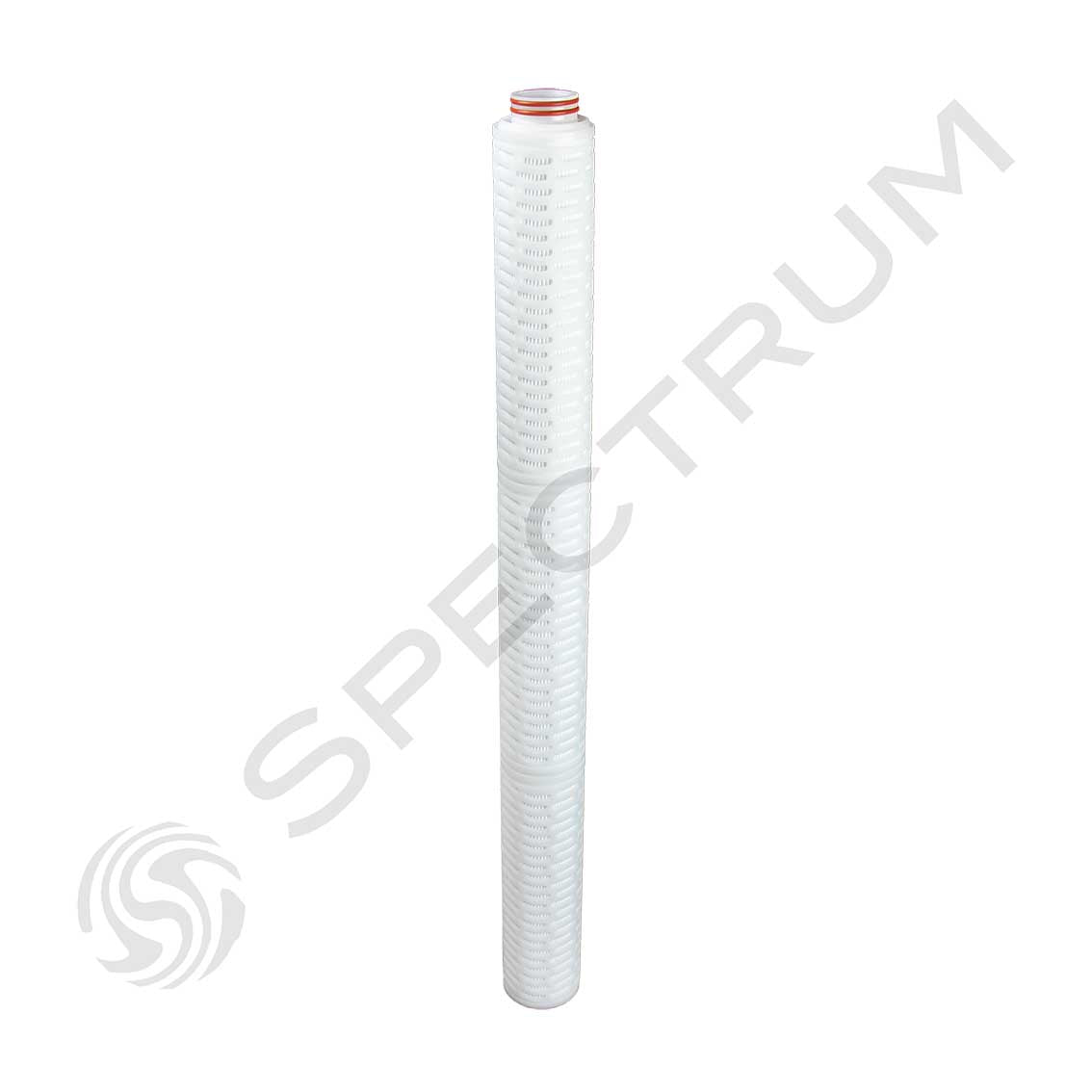

SPECTRUM PPG Premier Pleat Glass Fibre Cartridge

Product Description

Offering higher efficiency filtration than the PPP, the SPECTRUM Premier Pleat Glass Fibre combines absolute rated particle removal with high flow rate capabilities. Manufactured using only strong Borosilicate glass fibre media with two rigid support layers, the cartridge is able to meet demanding flow rate requirements without comprising the integrity of the media. Suitable for applications where known, consistent and absolute removal characteristics are required.Cryptosporidium and Giardia cysts as well as other parasites and micro-organisms are removed effectively using the SPECTRUM PPG Glass Fibre media cartridge. This meets the requirements of NSF/ANSI Standard 53, the absolute micron rated cartridges performed outstandingly when this protocol was applied.

Cryptosporidium ranges in size from approximately 1 to 5 micron, making the PPG 0.45 or 1 micron cartridges the right choice for applications in the food and beverage industries where Cryptosporidium, cysts or yeast cells need removing.

Manufactured using high purity Borosilicate Glass Fibre media with support layers for strength and rigidity ensures the pleat pack is clean and durable. The inherent hydrophilic nature of the media combined with the optimised surface area means high flows at very low-pressure drops are achieved.

The large surface area of the pleat pack is protected by an industrial strength polypropylene cage and core, with thermally welded polypropylene end-caps to ensure there is no leaching of undesirables into the filtrate stream.

FDA compliant and WRAS approval combined with NSF/ANSI test results make this cartridge the superior choice for Cryptosporidium parasite, cysts and yeast cell removal. Cleanliness is assured from the vacuum packed inner plastic wrap, which is then further protected by tough outer heat sealed plastic packaging. Each cartridge is individually labelled and boxed which prevents confusion during installation of multiple cartridges.

Features & Information

• FDA compliant and WRAS approved meeting the requirements of NSF/ANSI Standard 53
• 1 micron PPG for Cryptosporidium and Giardia cyst removal
• 99.98% absolute rated for critical filtration requirements (Beta 5,000)
• Constructed from borosilicate laboratory grade glass fibre for high purity
• Cartridges are formed around a polypropylene core with the glass fibre media protected by a polypropylene cage and thermally welded end caps
• Superior to polypropylene, glass fibre is a high flow, low pressure drop hydrophilic media
• The PPG media has a graded pore density for high dirt-holding capacity

Applications and Industries

•Potable water
•Cyst reduction
•Air and gas filtration
•Beverage clarification
