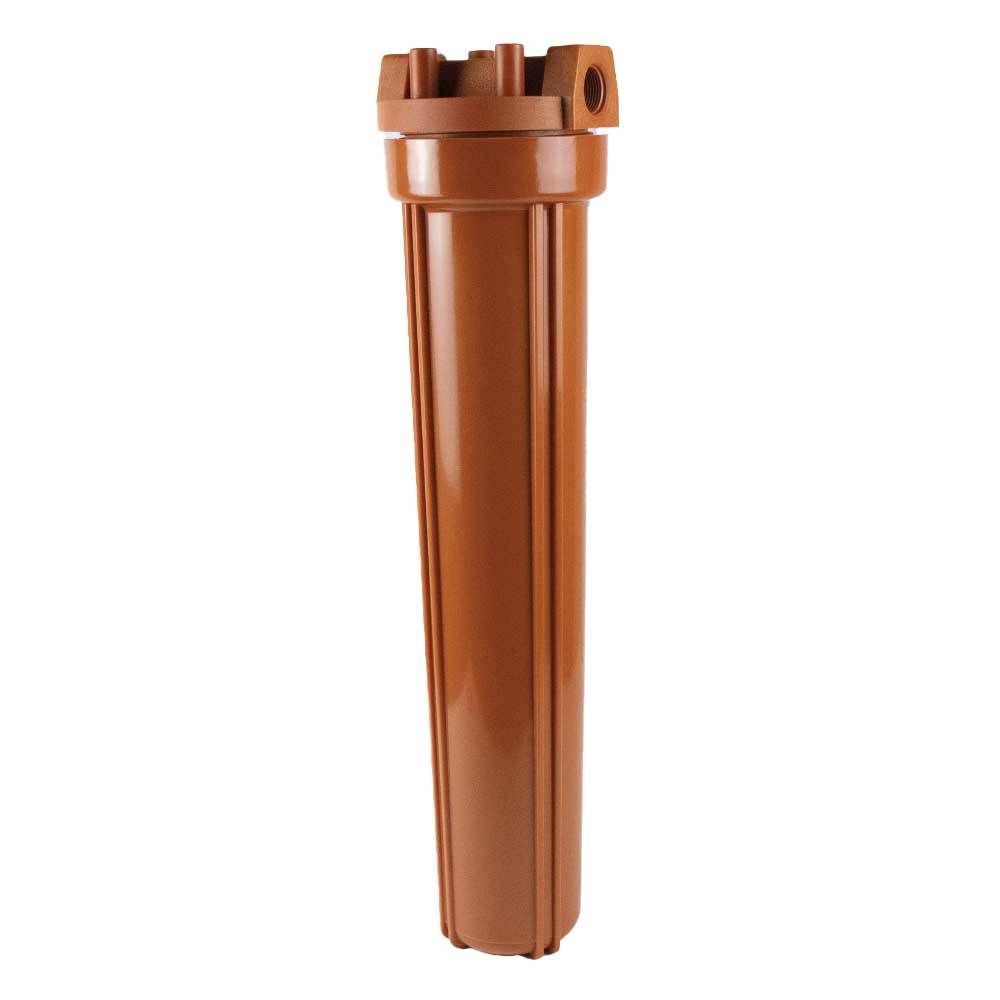

SPECTRUM High Temperature Plastic Filter Housing
The SPECTRUM High Temperature Plastic Filter Housing is purpose-built for demanding environments. Constructed using high-strength, glass-reinforced nylon, it offers a superior alternative to stainless and carbon steel options while maintaining exceptional chemical compatibility. Designed to operate at temperatures up to 72°C, this housing is ideal for industrial applications such as filtering organic solvents, seawater, alcohol, petroleum, and vegetable oils.
With its robust construction, durable Viton™ O-ring, and compatibility with standard inline pipework, this housing ensures consistent and reliable filtration performance across a variety of industries.
Features & Benefits
- Durable Construction: Built from glass-reinforced nylon for superior strength.
- High-Temperature Tolerance: Operates flawlessly at temperatures up to 72°C.
- Exceptional Chemical Compatibility: Resistant to organic solvents, alcohol, seawater, petroleum, and vegetable oils.
- Versatile Sizing: Available in 10” and 20” options, fitting standard inline pipework.
- Cost-Effective: A reliable and affordable alternative to steel housings.
Materials of Construction
The SPECTRUM High Temperature Housing is manufactured using premium materials to deliver exceptional strength and reliability:
| Component | Material |
|---|---|
| O-ring | Viton™ |
| Head | Glass-Reinforced Nylon |
| Sump (Red) | Glass-Reinforced Nylon |
These materials ensure chemical resistance, durability, and high performance under challenging conditions.
Technical Specifications
- Port Size: ¾" BSP for universal application.
- Cartridge Compatibility: Accommodates 10" and 20" cartridges, compatible with DOE, AA, and CG end caps.
- Pressure Rating: Handles up to 6.3 bar pressure.
- Temperature Rating: Functional within 4°C to 72°C.
- Chemical Compatibility: Resistant to a wide range of chemicals, including amyl alcohol, benzene, xylene, petroleum, and more.
Chemical Resistance Chart
| Chemical | Nylon | Viton™ |
|---|---|---|
| Amyl Alcohol | R | R |
| Benzene | R | R |
| Benzyl Chloride | R | R |
| Ethyl Chloride | R | R |
| Kerosene | R | R |
| Petroleum | R | R |
| Tetrachloroethylene | R | R |
| Xylene | R | R |
R = Resistant
Dimensions
| Housing Model | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| SFH-NR-10” | 132 | 135 | 317 |
| SFH-NR-20” | 132 | 135 | 578 |
Compact yet sturdy, the housings make installation easy and efficient in limited spaces.
Why Choose SPECTRUM High Temperature Plastic Filter Housing?
-
Superior Strength
The glass-reinforced nylon material ensures a robust design suitable for high-temperature and high-demand applications. -
Chemical Compatibility
Performs effectively across a variety of solvents and liquids, making it ideal for diverse industries. -
High-Temperature Operation
Supports temperatures up to 72°C, making it reliable for hot water and industrial processes. -
Cost-Effective Durability
Delivers the performance of steel housings at a fraction of the cost.
Accessories
Enhance your filter housing performance and installation with compatible accessories:
| Accessory | Code |
|---|---|
| Spanner | EFH-SW20 |
| Single Bracket | EFH-BK-1-10 |
| Double Bracket | EFH-BK-2-10 |
| Triple Bracket | EFH-BK-3-2 |
Upgrade to Reliable Filtration
The SPECTRUM High Temperature Plastic Filter Housing combines innovative design, robust materials, and excellent chemical compatibility to address your high-demand filtration needs. From industrial applications to specialized systems, it delivers consistent performance and outstanding value.
Invest in ultimate reliability today!
