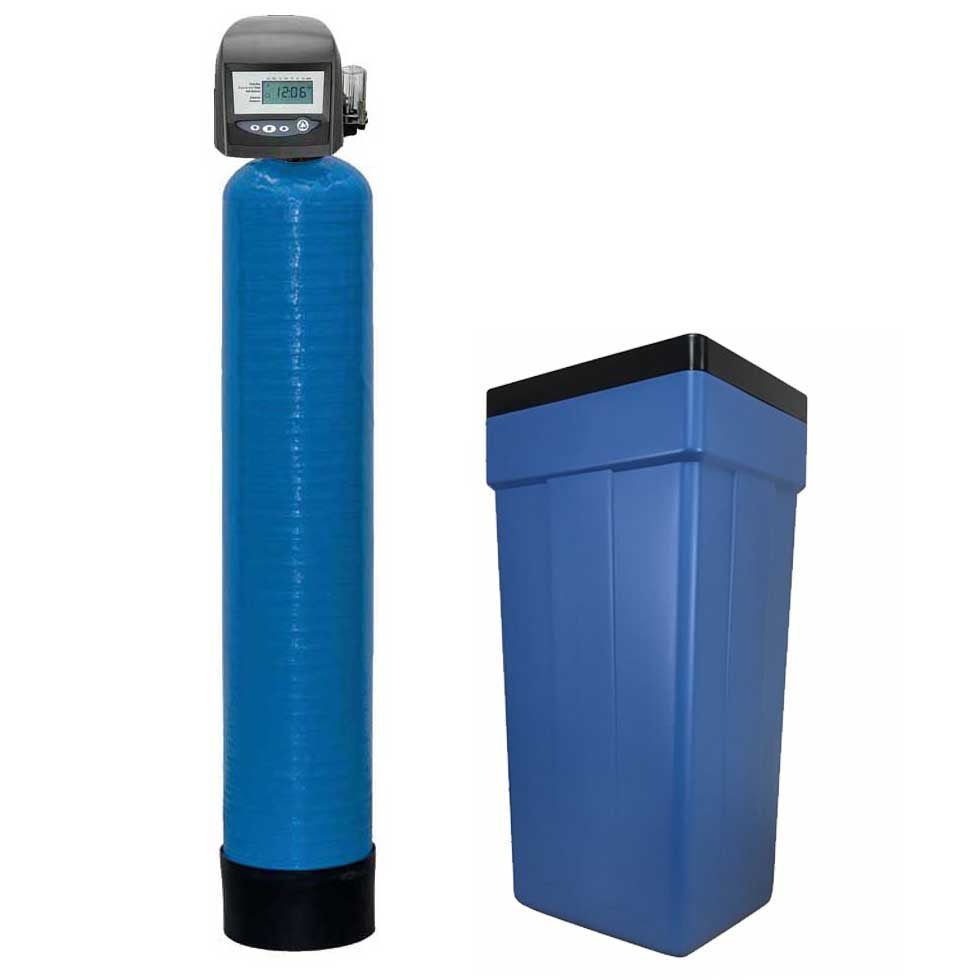

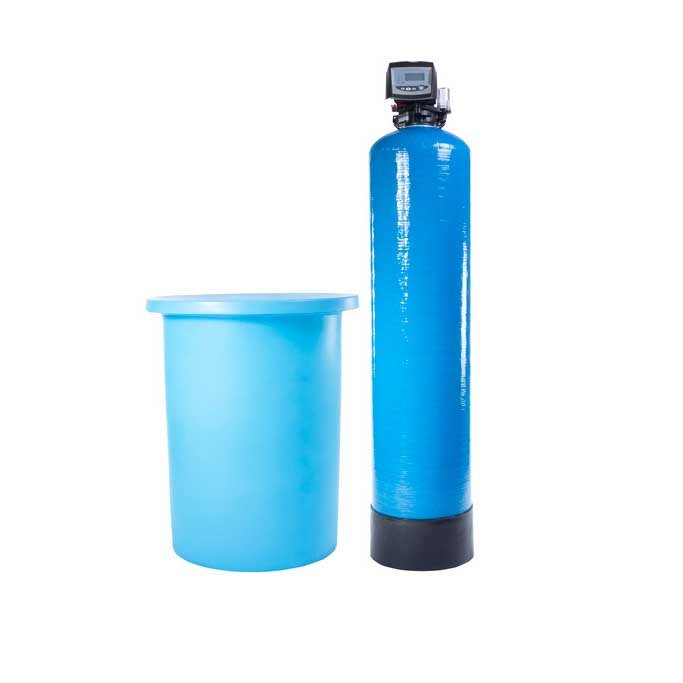

Simplex Water Softener with Autotrol Logix 268 and 278 Controllers 1" 3.0 - 5.7 m3/hr

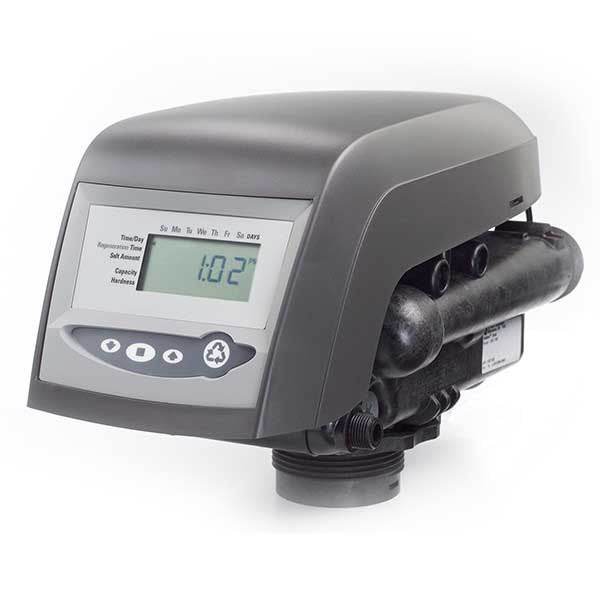

Simplex Water Softener with Autotrol Logix 268 and 278 Controllers 1" 3.0 - 5.7 m3/hr - 10" x 54" Autotrol Logix 268-762 Digital METERED Controller 50 Litre 2.0 m³/hr is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Simplex Water Softener with Autotrol Logix 268 and 278 Controllers ...
Description
Description
Product Description
This softener is supplied partially assembled for shipping. Some assembly will be required.
General Conditions for Installation
Connection IN & OUT: 1" BSPM
Drain connection: 3/4" BSPM or 19mm Barbed
Electrical Rating: 230 VAC 50/60 Hz, 12 VAC Transformer
Power Rating: 3 Watt Average
Minimum inlet pressure : 30 psi (2 bar)
Maximum inlet pressure: 90 psi (6 bar)
Vacuum: Not permitted
Average pressure loss: 1 bar under normal circumstances
Min-max water temperature: 5-35C
Maximum flow rate through valve 3.52 m³/hr
It is always recommended to install a 25 micron cartridge filter before a softener.
Resin
Type: Strong acid cation resin - softening, food grade quality
Life Span: 15 years under normal circumstances
All measurements can vary due to the colling process during manufacture of the vessels an brine tanks.
Estimated weight of the system without water or salt.
THIS KIT MUST BE PARTIALLY ASSEMBLED AND PROGRAMMED IN OUR WORK SHOP - CONTACT US FOR LEAD TIME
