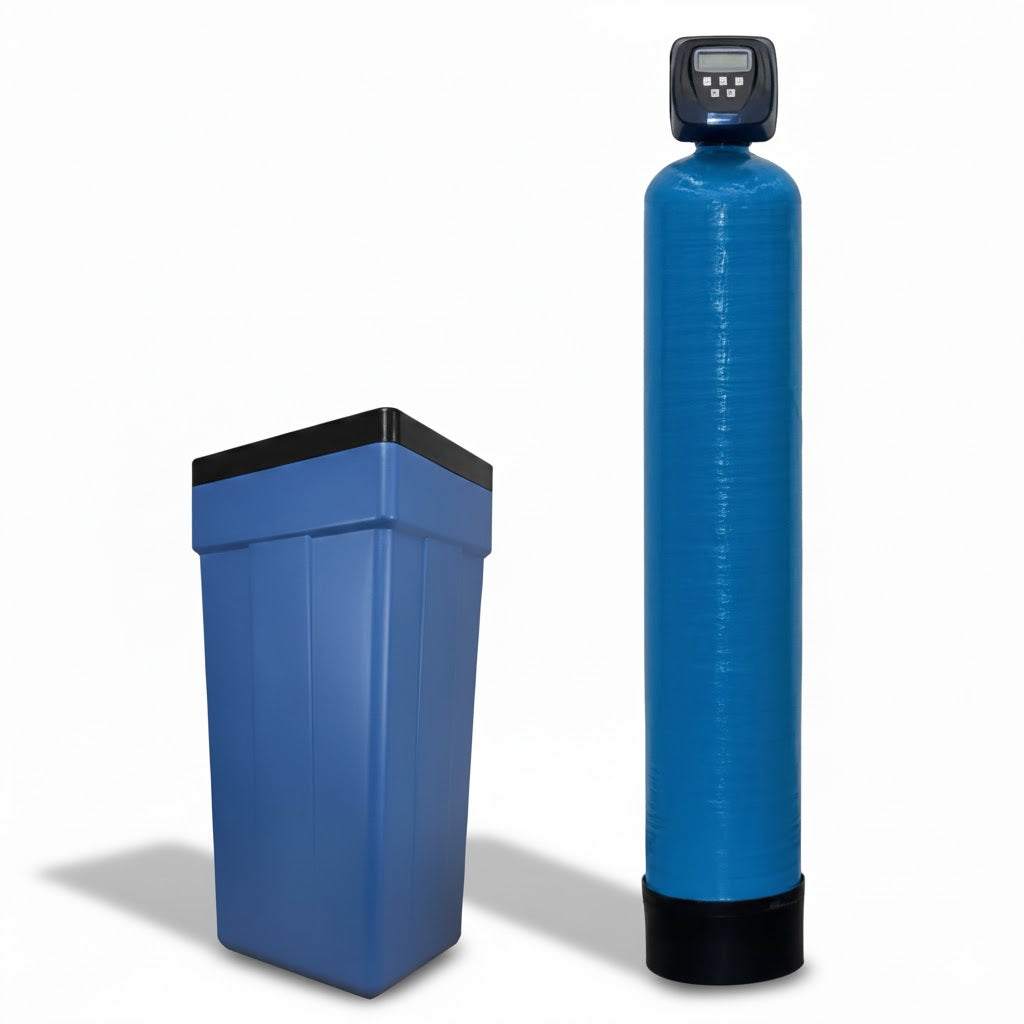

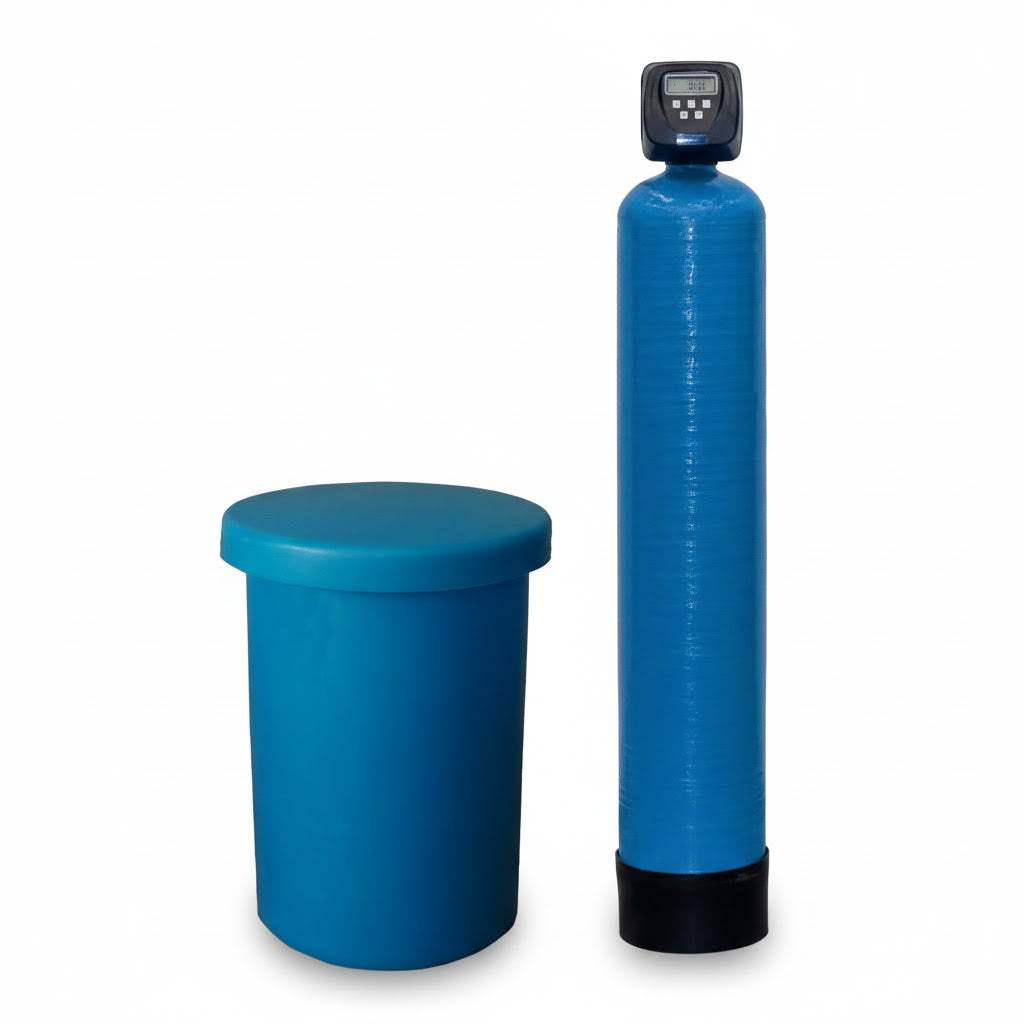

Low Fouling Resin Water Softener with Clack WS1 CI Valve (0.8 - 5.0 m3/hr)

SKU: 4302048904c2406
£564.60
Tax included Shipping calculated at checkout.


Product Description

USING MONOSPHERIC RESIN WHICH GIVES EITHER 10% EXTRA CAPACITY OR CAN BE USED WHEN IRON AND MANGANESE ARE A PROBLEM (LOW FOULING RESIN)

1" in/out connections

These Simplex water softeners use high quality vessels and superior softening resin. The units are controlled with a Clack WS1 CI multiport valve on top of the vessel allowing automatic regeneration.
Systems can regenerate after a given time (time) or quantity of water (metered).

Systems range in size from 500 l/ per hour to 50,000 litres per hour.

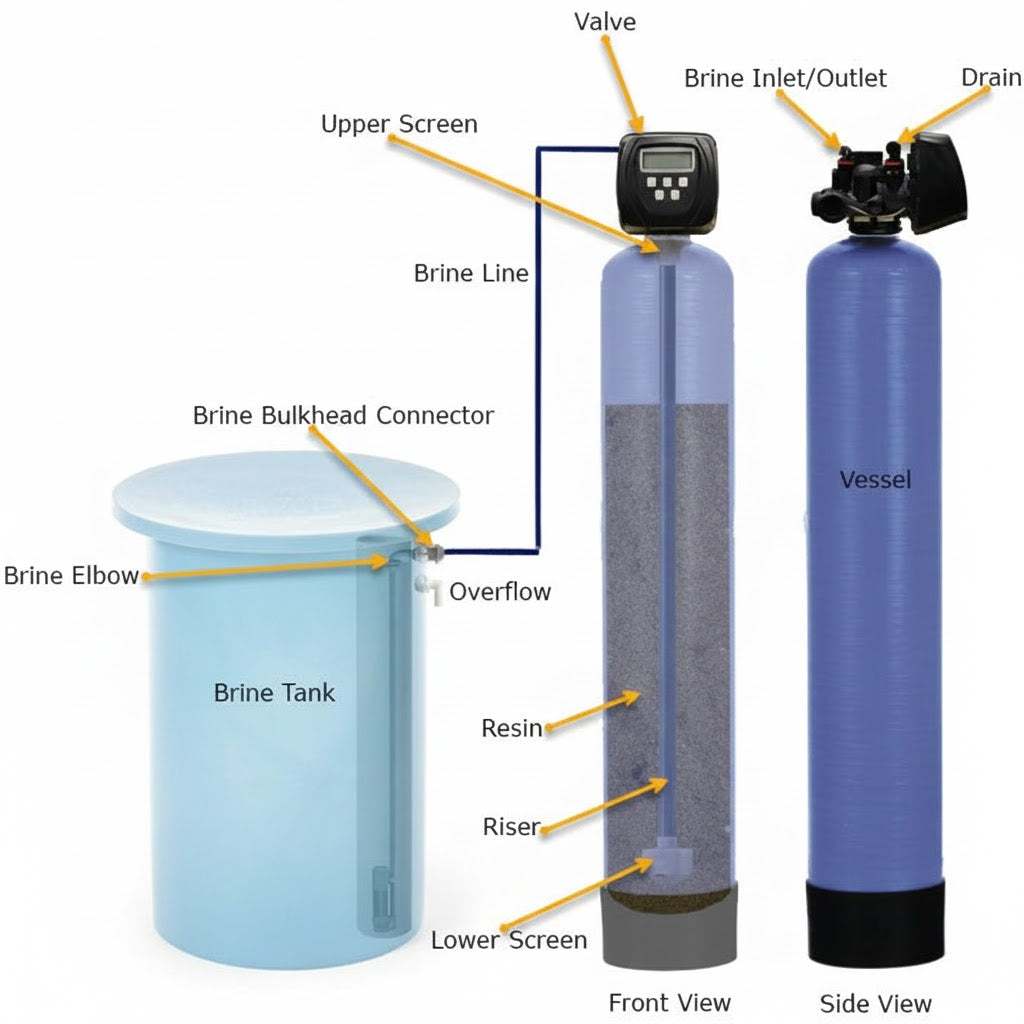

All systems come with vessel, valve, resin, brine tank and all fittings. In commercial softeners the brine tank sits next to the resin filled resin rather than the vessel sitting inside the brine tank. The very reliable multiport valve can record system information such as average and maximum flow rates.

Timed controlled models regenerate automatically every 2 or 3 days. Meter controlled versions monitor the amount of water used to regenerate when it needs to.
This softener is supplied partially assembled for shipping. Some assembly will be required. All components and instructions will be supplied.





THIS KIT MUST BE PARTIALLY ASSEMBLED AND PROGRAMMED IN OUR WORK SHOP - CONTACT US FOR LEAD TIME


Crystal Right CR200 should be considered where iron and or manganese and hardness need to be tackled or where higher backwashing rates can't be achieved as would be needed with Filox or Birm.



THIS KIT MUST BE PARTIALLY ASSEMBLED AND PROGRAMMED IN OUR WORK SHOP - CONTACT US FOR LEAD TIME

General conditions for installation

Connection IN & OUT: 1"
Drain connection(*): 3/4" or 1" for DLFC flows over 10 gpm
Electrical rating: 230V 50Hz 12V Transformer
Max power rating: 6W
IP protection class: Double isolated transformer
Minimum inlet pressure: 200 kPa (2 bar)
Maximum inlet pressure: 600 kPa (6 bar)
Vacuum: no allowance
Average pressure loss (**): 100 kPa (1 bar)
Min-max water temperature: 5-35°C

Remarks
(*) Dependant on Drain line flow control.
(**) Under normal circumstances.
It is always recommended to install a 25 micron cartridge filter before a softener.

Resin

Type: Strong acid cation resin - softening ,food grade quality
Life span: 15 years under normal circumstances

Ion exchange ( for average salt consumption of 150 g/L )




Regeneration

Start: Default Time 2:00 am, set on the timer as ( delayed regeneration )
Options: TIME - VOLUME - IMMEDIATE - DELAYED - DAYS OVERRIDE and manual regeneration.



Consumption of Rinse Water



***Figures based on 60PSI pressure.
