Coral 15 Litre Water Softener Clack ws1 CI metered 3/4" BSPM

Product Description

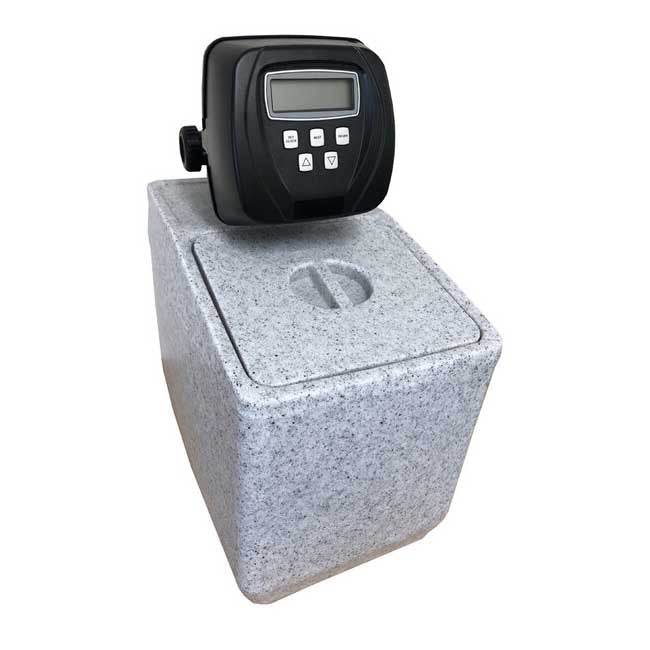

A compact cabinet using the Clack WS1 valve with 5 buttons and an LCD display. Designed for use in domestic and commercial environments.

Compact, fitting under modern sinks, specifically designed to fit even the smallest gaps but still have a high capacity.

Stylish, fitting equally well into any utility room or kitchen.

Designed to be simple to use.

Easy to install.

Specifications:
Inlet/Outlet: 3/4" BSPM
Drain Connection*: 1/2" hose
Electrical rating: 230V 50Hz 12V Transformer
Max power rating: 6W
IP protection class: Double isolated transformer
Minimum inlet pressure: 200 kPa (2 bar)
Maximum inlet pressure: 600 kPa (6 bar)
Vacuum: no allowance
Average pressure loss (**): 100 kPa (1 bar)
Min-max water temperature: 5-35°C
Minimum pressure: 1.5 bar
Maximum pressure: 8 bar
Maximum water temperature: 43°C
Capacity at 300 ppm Calcium Carbonate: 2500 litres
Salt used per regeneration: 2.2 Kg
Width: 333 mm
Height: 1091 mm
Depth: 467 mm

*Open drain required
