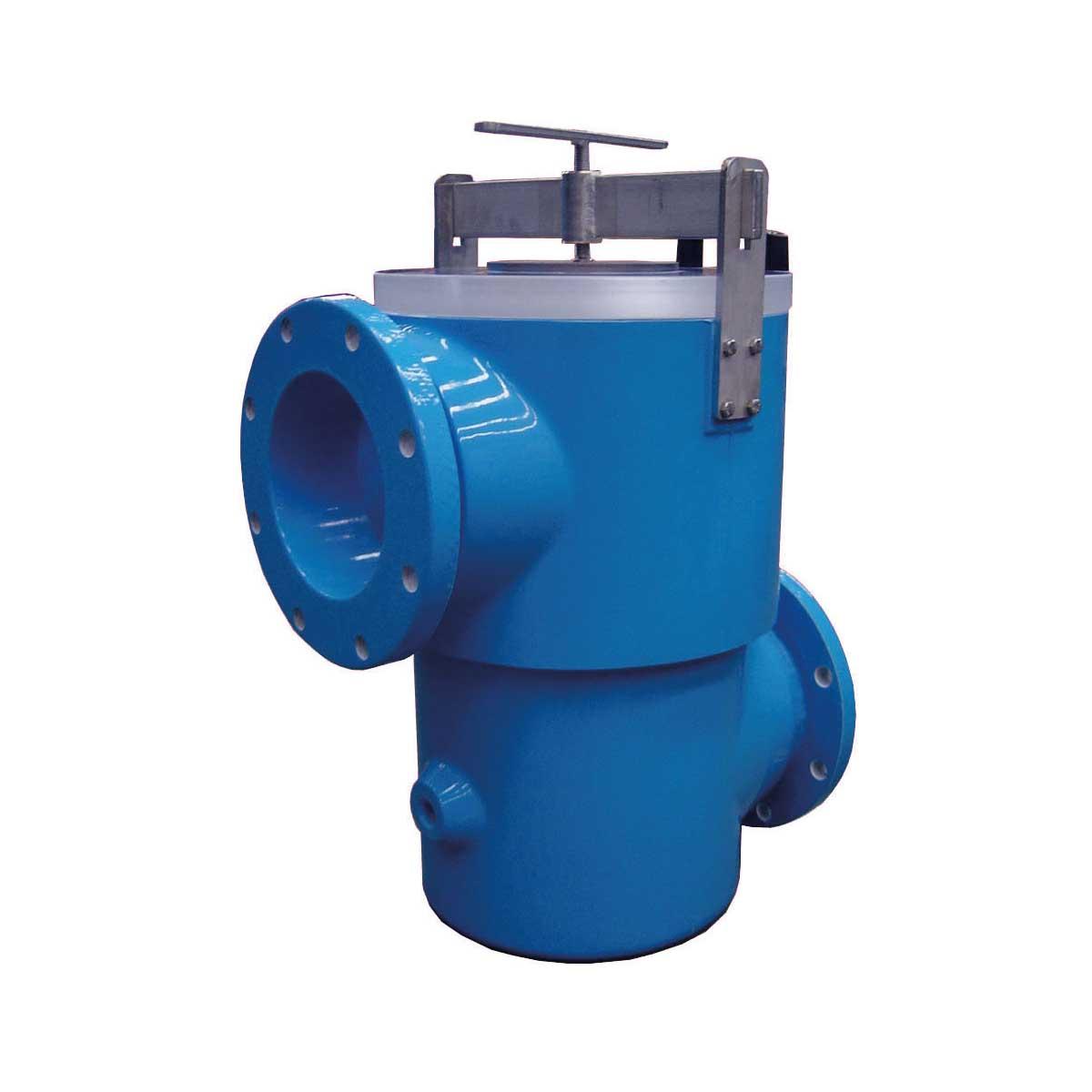

Calplas Standard Pump Strainers
The Calplas Standard Pump Strainers are engineered for superior performance, protecting pump systems while enhancing efficiency. Built with premium materials, these strainers deliver reliability and durability. Designed to prevent blockages and minimize wear, they offer remarkable functionality across various industries, including aquaculture, where robustness and adaptability are vital.
Key Benefits
1. Pump Protection
- Features a 316 stainless steel basket, ensuring excellent seawater resistance and durability.
- Comes with Ø2mm or Ø4mm hole options, effectively handling different debris sizes. Ø4mm is the preferred choice for most operations.
- Built for suction side applications, substantially prolonging pump life and optimizing performance.
- Offers 1 bar maximum pressure, ensuring safe operation within its design limits.
2. Cavitation Prevention
- Minimizes the risk of cavitation, which can occur due to low-pressure conditions.
- Safeguards vital components, such as the impeller, from damage caused by collapsing vapour bubbles.
- Maintains operational efficiency by reducing disruptive noises, like gravel-like sounds, in the piped system.
3. Plant Footprint Saving
- Features a customizable design, allowing you to adjust the inlet and outlet orientations for seamless integration into your setup.
- Compact construction saves valuable plant space, making it ideal for installations with tight spatial constraints.
- Extremely robust, ensuring reliability even under demanding conditions.
4. Enhanced Accessibility Features
- Equipped with a quick opening device, streamlining maintenance and reducing downtime.
- Customization options, such as sightglass and cylindrical height adjustments, are available for better adaptability.
- Designed to handle higher temperatures and chemicals for diverse industrial applications.
Technical Specifications
The following table highlights the technical details of the Calplas Standard Pump Strainers:
Model | Reference | Connection | Basket Volume | Max Pressure |
---|---|---|---|---|
P8/110 | 0128020001 | DN100 | 8 Litres | 1 Bar |
P15/110 | 0128020002 | DN100 | 15 Litres | 1 Bar |
P25/160 | 0128020003 | DN150 | 25 Litres | 1 Bar |
P25/225 | 0128020004 | DN200 | 25 Litres | 1 Bar |
P60/300 | 0128020005 | DN300 | 60 Litres | 1 Bar |
Features Designed to Last
- Manufactured according to EN 13121-3 standards for reliability.
- Steel-reinforced hand lay-up GRP construction offers exceptional strength.
- Threaded connections and closed legs are integrated into the filter structure for added robustness.
- The 316 stainless steel Ø4mm hole ensures durability and effective filtering.
- Tested at 1.5 times the design pressure and capable of handling a design temperature of up to 40ºC.
Additional Options
- Compatibility with anchorage systems and seismic calculations supports stable, secure installations.
- Specially designed for drinking water and food contact applications.
- Tailored high-temperature resistance and chemical compatibility to meet specific requirements.
- Multiple flange connection positions and cylindrical height customization available.
With 1 bar max pressure, robust construction, and versatile features like quick opening devices and suction-side design, the Calplas Standard Pump Strainers deliver exceptional value. These strainers are your perfect solution to protect pumps, prevent system damage, and enhance efficiency, especially in aquaculture and other demanding fields. Invest in reliability and performance today!
