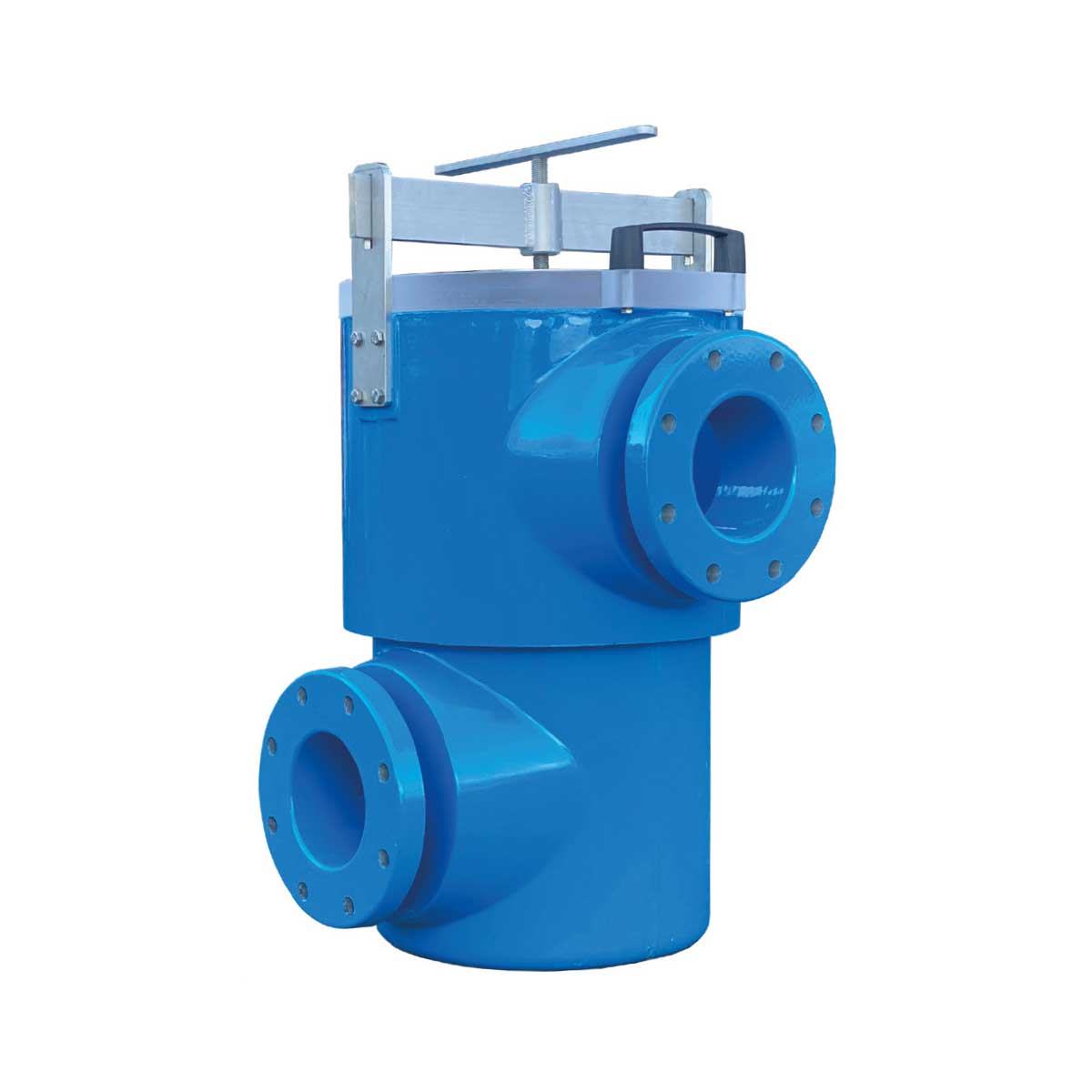

Calplas Customized Pump Strainers
Calplas Customized Pump Strainers
The Calplas Customized Pump Strainers are the ultimate solution for industrial pump protection. These strainers are designed for flexibility, durability, and efficiency, offering tailored features to meet diverse operational needs. Whether in aquaculture or other demanding industries, they deliver robust performance and long-lasting reliability.
Key Features
1. Built for Reliability
- Flanged Connections for INLET/OUTLET ensure secure setup and adaptability.
- Constructed with all connections as part of the GRP structure, providing strength and seamless integration.
- Engineered to be highly robust and designed specifically for the suction side, ensuring reliable operation.
2. Precision and Adaptability
- Equipped with a quick opening device for easy maintenance and minimal downtime.
- Includes a 316 stainless steel Ø4 mm hole basket, offering superior durability and effective debris management.
- Provides customizable flange positions to suit specific installation requirements.
3. Flexible Design Options
- Features a design temperature of 40°C, suitable for a wide range of industrial operations.
- Optional basket hole sizes are available (Ø2 mm), allowing finer filtration when required.
- Offers varied INLET/OUTLET flange sizes in the same strainer for additional flexibility.
Technical Specifications
The following table summarizes the technical specifications of the Calplas Customized Pump Strainers:
| Model | Ref. | Connections | Flow | Basket Volume | Max Pressure |
|---|---|---|---|---|---|
| P4/C | 0128020010 | DN25 - DN80 | 30 m³/h | 4 Litres | 1 Bar |
| P8/C | 0128020011 | DN40 - DN150 | 80 m³/h | 8 Litres | 1 Bar |
| P15/C | 0128020012 | DN65 - DN200 | 120 m³/h | 15 Litres | 1 Bar |
| P25/C1 | 0128020013 | DN80 - DN150 | 250 m³/h | 25 Litres | 1 Bar |
| P25/C2 | 0128020014 | DN175 - DN250 | 250 m³/h | 25 Litres | 1 Bar |
| P60/C1 | 0128020015 | DN110 - DN200 | 350 m³/h | 60 Litres | 1 Bar |
| P60/C2 | 0128020016 | DN200 - DN350 | 350 m³/h | 60 Litres | 1 Bar |
| P75/C1 | 0128020017 | DN250 - DN350 | 600 m³/h | 75 Litres | 1 Bar |
| P75/C2 | 0128020018 | DN400 - DN500 | 600 m³/h | 75 Litres | 1 Bar |
Dimensional Details
| Model | D | d | H | L | A | B |
|---|---|---|---|---|---|---|
| P4 | 250 | 200 | 500 | 370 | 100 | 290 |
| P8 | 305 | 250 | 635 | 450 | 130 | 370 |
| P15 | 355 | 300 | 760 | 500 | 150 | 455 |
| P25 | 415 | 355 | 785 | 580 | 165 | 495 |
| P60 | 530 | 480 | 1030 | 700 | 260 | 695 |
| P75 | 530 | 480 | 1260 | 700 | 300 | 850 |
Additional Options
- Varied Basket Hole Sizes: Optional Ø2 mm hole baskets available for finer filtration.
- Custom Flanged Connections: Different INLET/OUTLET flange sizes available in the same strainer.
- Enhanced Durability: Stainless steel 316 components ensure resistance to corrosive environments.
With their robust structure, customizable features, and reliable performance, Calplas Customized Pump Strainers are a smart investment for industrial pump protection. Specifically crafted to meet the needs of demanding applications, they are a trusted choice in environments like aquaculture. Choose precision, durability, and flexibility with Calplas Customized Pump Strainers.
