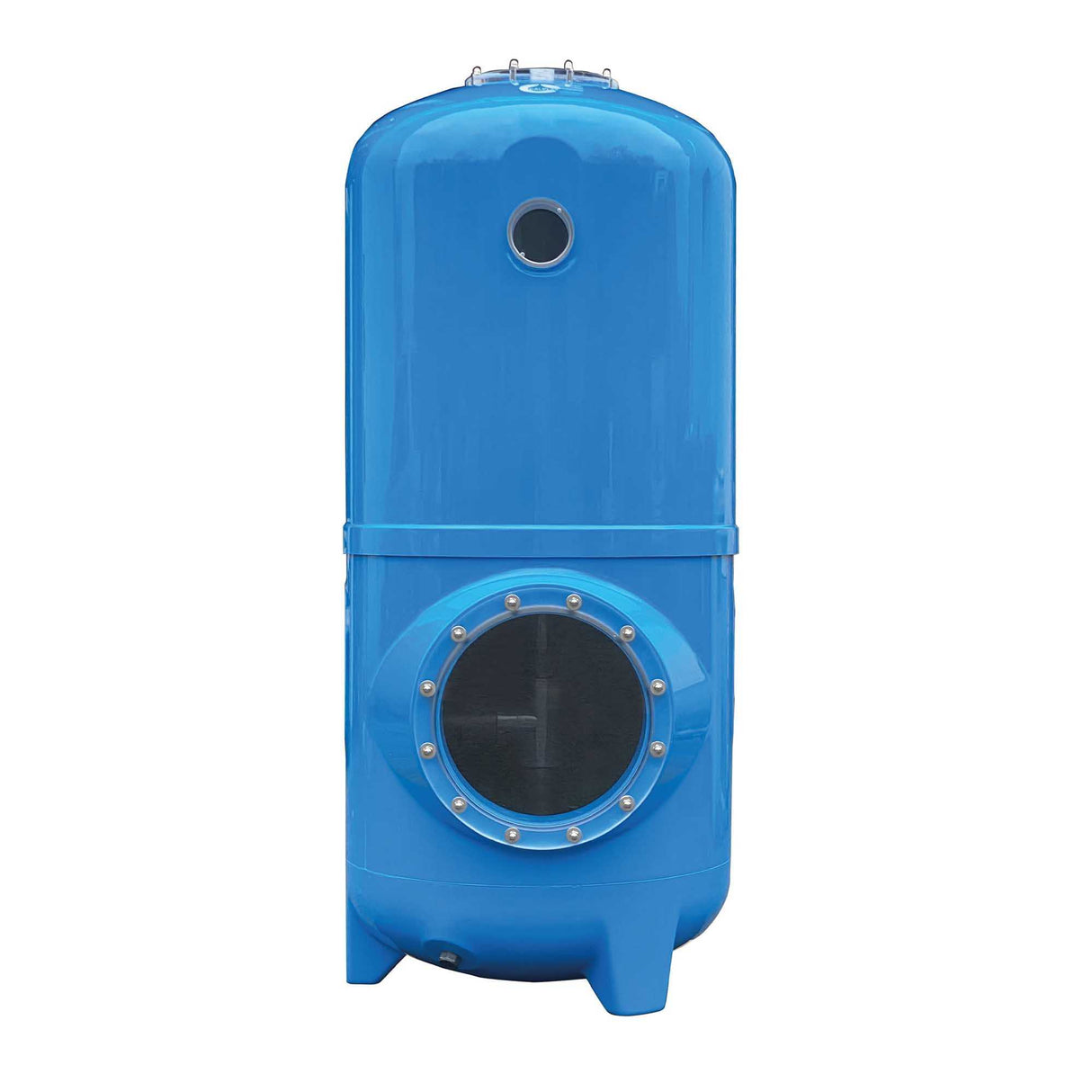

Calplas AFM Series Steel Reinforced GRP Vessel Ø 520T - 960T
Calplas AFM Series Steel Reinforced GRP Vessel Ø 520T - 960T
The Calplas AFM Series Steel Reinforced GRP Vessel Ø 520T - 960T delivers robust, high-quality filtration for demanding industrial applications. Designed with precision and manufactured to EN 13121-3 standards, this series combines durability, functionality, and adaptability to meet the toughest requirements.
Built to last, the AFM Series allows for enhanced efficiency and seamless integration into various filtration systems.
Key Features
-
Premium Build Quality
Made from hand lay-up GRP (glass-reinforced polyester) reinforced with steel, ensuring long-lasting strength and reliability. -
Integrated Connections
Threaded connections are a structural part of the vessel, eliminating leaks and guaranteeing robust performance. -
Advanced Design Specifications
Closed, integrated legs, a top access point, lateral manhole access, and a special top distributor adapted for sand/AFM filtration media. -
Temperature & Pressure Resistance
Operates at a design temperature of 40°C, with a design pressure range of 2.5, 5, or 7 bar. Each vessel is rigorously tested at 1.5 times its design pressure. -
Enhanced Functionality
Equipped with a sightglass for monitoring filtration efficiency and media condition.
Additional Customization Options
The AFM Series is highly customizable to meet specific needs:
- High-Chemical Resistance for compatibility with various substances.
- Higher Temperature Tolerance for more demanding processes.
- Flexible Flange Connections for versatile system integration.
- Anchorage System & Seismic Calculations, ideal for installation in earthquake-prone zones.
- Compatibility with Drinking Water & Food Contact Applications, ensuring safety in sensitive environments.
- BESGO Valve Integration (available separately for advanced automation).
Orientation Options
The AFM Series offers two customizable orientations:
- Position 6 (Standard)
- Position 2 (Alternative)
This flexibility ensures the vessel adapts seamlessly to your setup.
Specifications Table
| Model | Diameter (mm) | Height (mm) | Top Access (mm) | Manhole Access (mm) | A (mm) | B (mm) | E (mm) | I/O Connection | Filtration Surface (m²) |
|---|---|---|---|---|---|---|---|---|---|
| AFM-520T | 520 | 1400 | 190 | 215 | 405 | 190 | 5 | 2" | 0.20 |
| AFM-640T | 640 | 1440 | 190 | 305 | 420 | 190 | 5 | 2" | 0.30 |
| AFM-720T | 720 | 1440 | 190 | 305 | 420 | 190 | 5 | 2" | 0.40 |
| AFM-840T | 840 | 1460 | 190 | 305 | 440 | 190 | 5 | 2" | 0.52 |
| AFM-960T | 960 | 1520 | 205 | 355 | 405 | 250 | 5 | 2 ½" | 0.70 |
Why Choose the AFM Series?
-
Complete Filtration Performance
Offers unique features like a lateral manhole, increased filtration depth, and a sightglass for easy monitoring. -
Unparalleled Durability
With steel reinforcement and advanced GRP manufacturing, the vessel stands up to intense industrial demands. -
Customizable Design
Tailor the vessel’s specifications to your unique requirements, ensuring a perfect fit for any application. -
Enhanced Safety Standards
Each vessel is designed and rigorously tested to meet high safety and operational benchmarks.
The Calplas AFM Series Steel Reinforced GRP Vessel Ø 520T - 960T is a reliable, versatile, and durable solution for optimized filtration across industries. Customize it to suit your needs and invest in superior performance for your operations.
