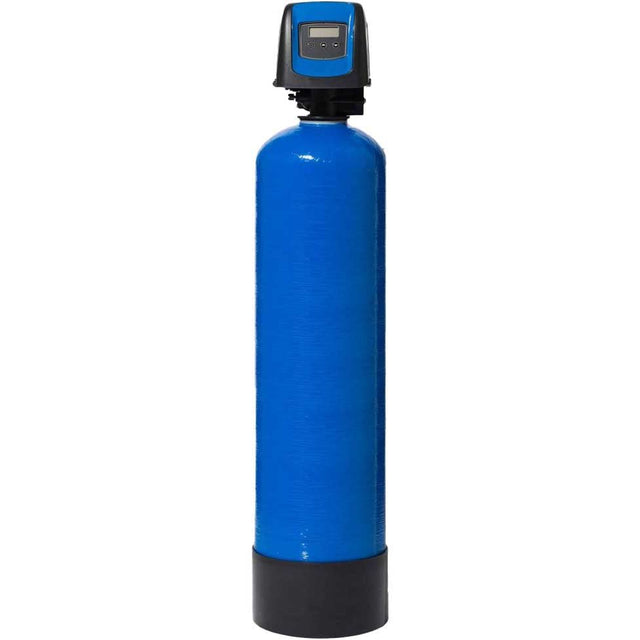

Birm Iron and Manganese Filter with Fleck Valve (0.6 to 14.5 m3/hr)

Efficient Iron and Manganese Removal

The Birm Iron and Manganese Filter with Fleck Valve is designed to effectively remove iron and manganese through catalytic oxidation. This cost-effective solution is perfect for enhancing water quality, offering a flow rate capacity from 0.6 to 14.5 m3/hr.

Key Features

• Catalytic Oxidation: Utilizes Birm media for efficient iron and manganese removal.
• Optimal pH Conditions: Requires a pH of 7 or more for iron and 8 for manganese removal.
• Cost-Effective Media: Birm is an affordable option, although it may not last as long as other natural media.

Removal Criteria

• Iron Removal: Effective within a pH range of 7 to 8.5. High pH may cause colloidal iron formation.
• Manganese Removal: Best within a pH range of 8 to 9.
• Water Conditions: Requires water to be free of oil, hydrogen sulphide, and polyphosphates, with a dissolved oxygen level at least 15% of the iron or manganese content.

Additional Specifications

• Temperature Tolerance: Operates efficiently at a maximum temperature of 38°C.
• Assembly Details: Ships partially assembled, requiring some setup on-site for full installation.
• Media Longevity: Birm media has a life expectancy of 2 to 3 years, offering reliable performance over time.

Installation and Maintenance

• Alkalinity Requirements: Alkalinity should be greater than twice the combined sulphate and chloride levels.
• Organic Matter: Should be less than 4-5 ppm for optimal filtration efficiency.

Choose the Birm Iron and Manganese Filter with Fleck Valve for a dependable and economical solution to your water treatment needs, ensuring cleaner and safer water for a variety of applications.

THIS KIT MUST BE PARTIALLY ASSEMBLED AND PROGRAMMED IN OUR WORK SHOP - CONTACT US FOR LEAD TIME

General conditions for installation

Electrical Rating : 230-24V / 50 Hz
Power Rating : 55 watts
Minimum Inlet Pressure : 200 kPa ( 2 Bar )
Maximum Inlet Pressure : 700 kPa ( 7 Bar )
Vacuum : Not permitted
Average Pressure Loss : 100 kPa ( 1 Bar )
Maximum Water Temperature : 43ºc
Operating Conditions : Dissolved Oxygen (DO) content must be equal to at least 15% of the iron (or iron and manganese) content

Media
Type : Birm
Life Span : Dependent on frequency of backwashing and site conditions
