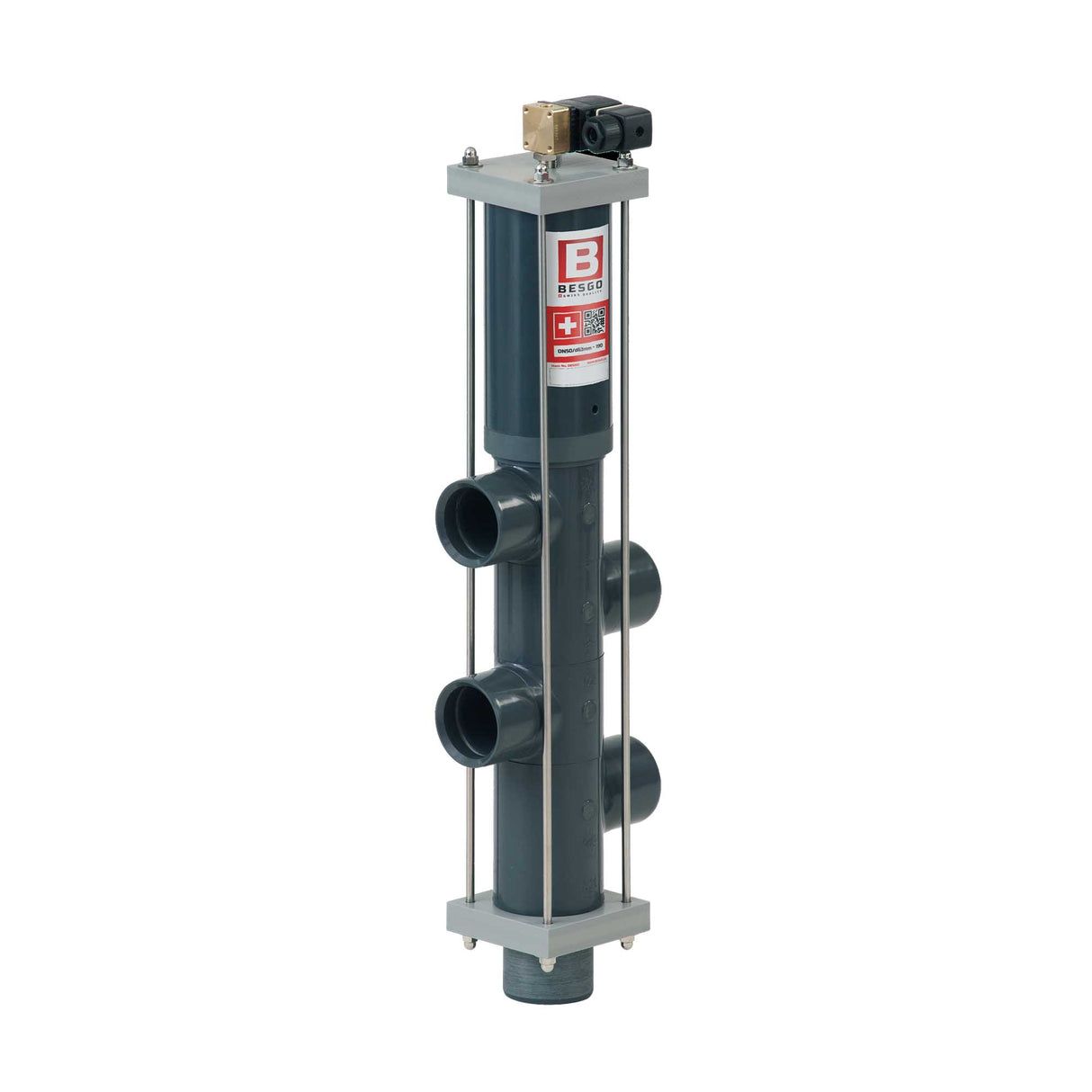

Besgo 5-Way Backwash Valve
Besgo 5-Way Backwash Valve
Manufactured in Switzerland since 1980, the Besgo 5-way valve is a pneumatic valve that automates your sand filter backwashes in a simple, efficient and safe way. Thanks to a higher backwash speed than traditional 6-way valves, the Besgo 5-way valve guarantees superior backwash results and allows you to take full advantage of your pool by reducing the time spent on maintenance.
- Fully automated backwashes
- 2x less pressure drop than 6-way valves
- High safety and backwash efficiency
- Outstanding reliability
BESGO 5-WAY VALVES BENEFITS:
- Low Pressure Drop: Delivers superior backwash velocity and efficiency compared to traditional 6-way valves.
- Flexible Installation: Can be installed directly on the filter or mounted on a wall, thanks to 90° rotating connections.
- Enhanced Safety: Automatically returns to "Filtration Mode" in the event of an electrical failure.
- Quick Switchover: No need to stop the filtration pump during mode transitions.
- Swiss Precision: Crafted with exceptional quality and reliability, TÜV Rheinland certified for assurance.
- Universal Compatibility: Designed to work seamlessly with all AFM® and sand filters.

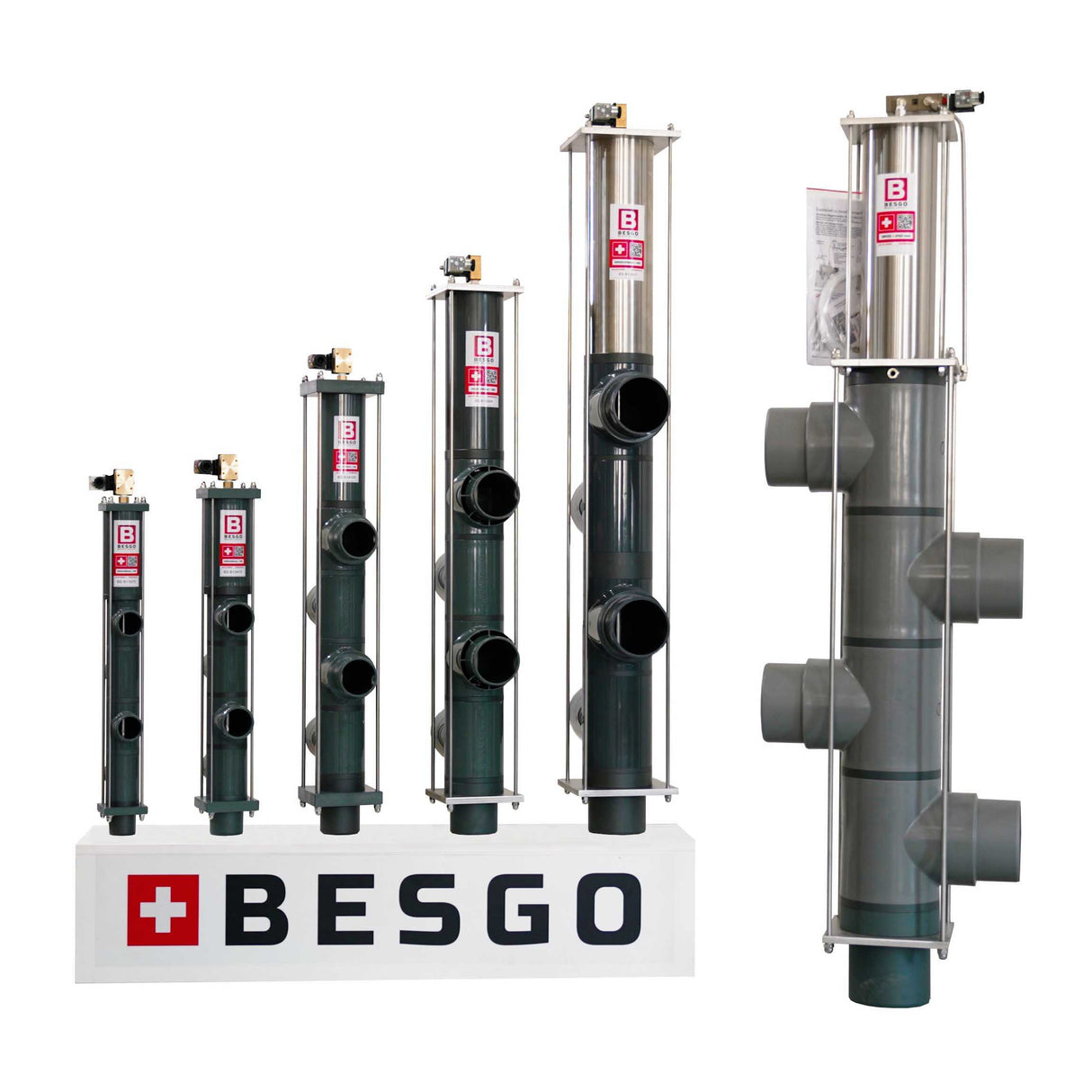

Valves are available in sizes ranging from DN40 (50mm) to DN125 (140mm).
OPERATION OF THE BESGO 5-WAY VALVE
The Besgo 5-way valve operates automatically, powered by either water or air pressure. It requires a connection to a water supply or a small air compressor to maintain the necessary 3.5 bars of pressure.
Programming and activating the solenoid valve is straightforward and only requires a standard 230V electric controller or timer.

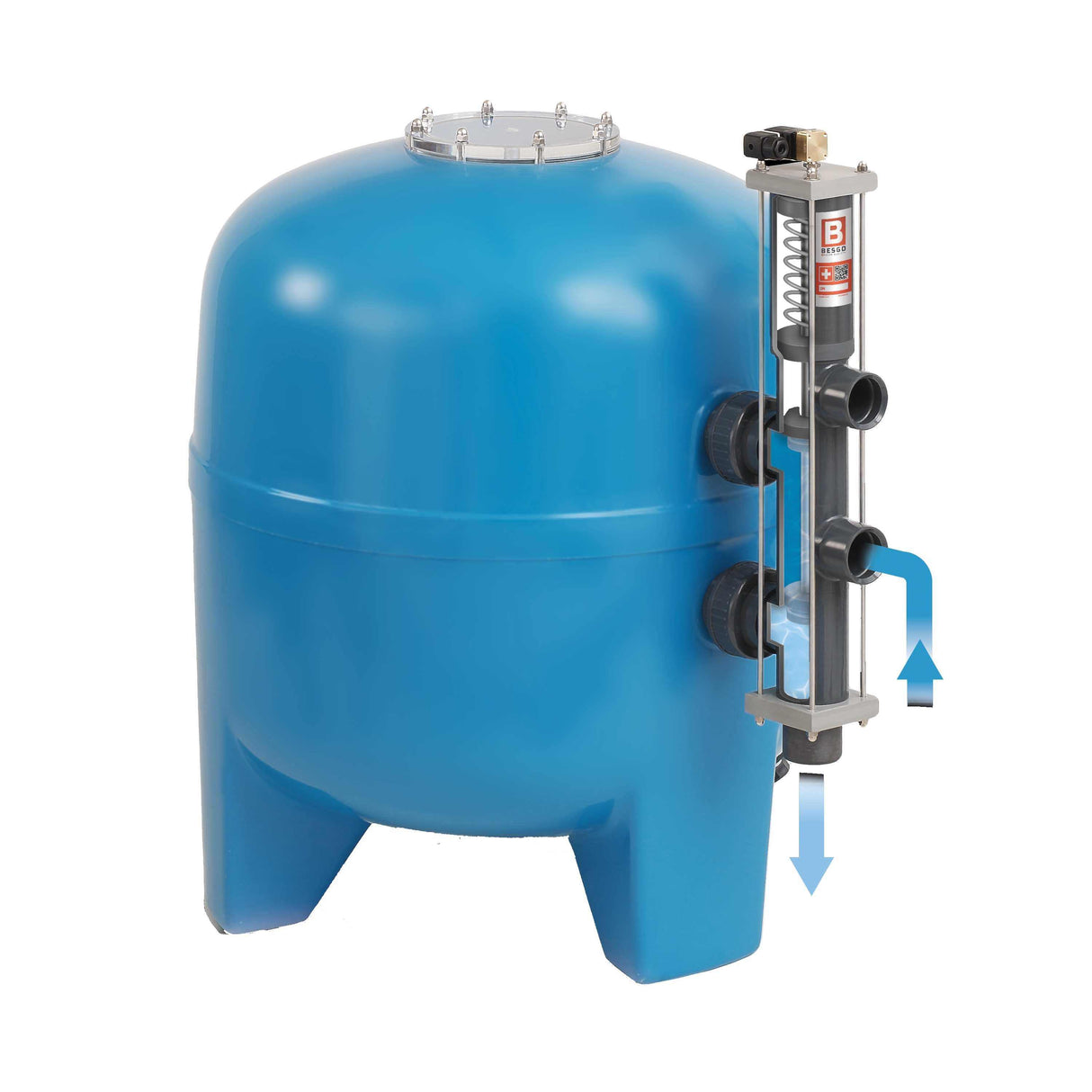

The solenoid valve activates upon receiving an electrical current, allowing the incoming pressure to compress the spring inside the Besgo valve, initiating the backwash process. This process continues as long as the solenoid valve remains powered. In the event of a power failure, the Besgo valve automatically reverts to its "Filtration" position, ensuring the pool cannot be drained accidentally.
INSTALLATION FLEXIBILITY
Besgo connection unions are designed for flexibility, allowing a 90-degree rotation for easy adjustments. Additionally, they offer fine-tuning of +/-4°, ensuring a tension-free installation. All Besgo valves must be glued externally and should always be installed with detachable connections, such as screw fittings or flanges. This approach simplifies maintenance and makes replacements quick and hassle-free.
The best backwash results
The low pressure loss allows a high backwash speed offering better backwash results than traditional 6-way valves or butterfly valves of similar size.
Besgo 5-Way Valve Technical Specifications
| Features | Details |
|---|---|
| Operating Pressure | Requires 3.5 bars (water or air supply) |
| Operational Modes | Filtration, Backwash, Safety mode (auto-return during power failure) |
| Connection Types | Glue-on connections with detachable unions or flanges |
| Pressure Drop | 2x less than traditional 6-way valves |
| Available Sizes | DN40 (50mm) up to DN125 (140mm) |
| Compatibility | Designed for AFM®, sand filters, and mainstream pool equipment brands |
| Certifications | TÜV Rheinland certified for safety and performance |
| Durability | Corrosion-resistant materials for a long lifespan |
| Power Requirements | 230V connection for electric timer or controller |
Enhanced Compatibility
The Besgo Valve integrates smoothly with a wide range of sand filter brands and systems, ensuring universal usability. Top compatible brands include but are not limited to:
- Astralpool
- Hayward
- Pentair
- Waterco
- Kripsol
- Behncke
- Fiberplast
- Calplas
Its unmatched performance and adaptability make it the ideal choice for any pool system requiring reliable and efficient maintenance solutions.
Upgrade Your Pool Maintenance Today
Optimize your pool’s performance with the precision-engineered Besgo 5-Way Backwash Valve. With its outstanding reliability, state-of-the-art features, and Swiss-certified quality, it delivers cleaner results with less hassle. Choose Besgo for professional-grade maintenance simplified!
