Atlas AUVS-L UV Sensor For L22 L41 & L57 Units

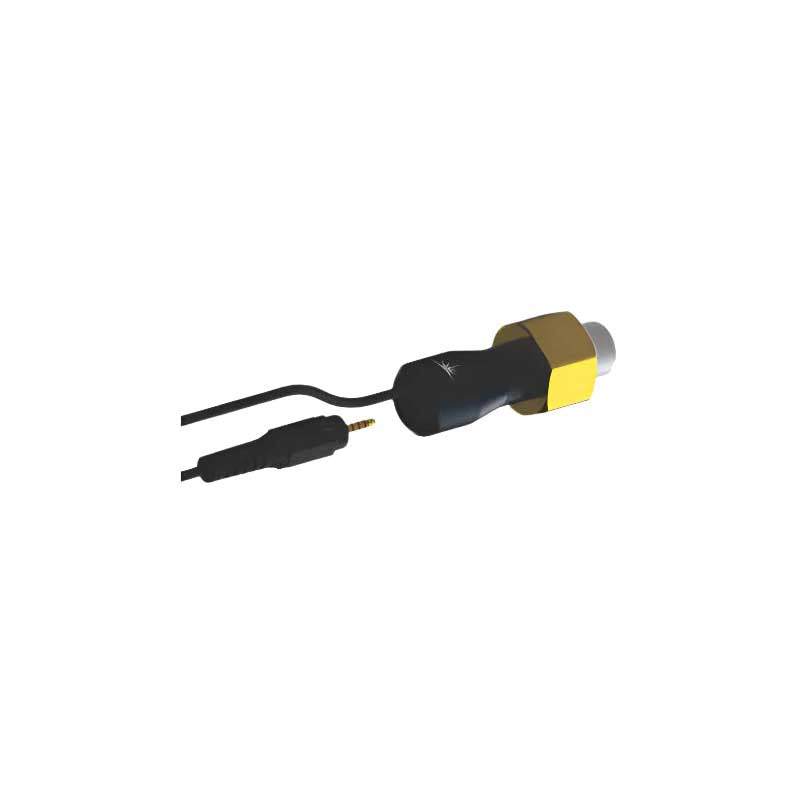

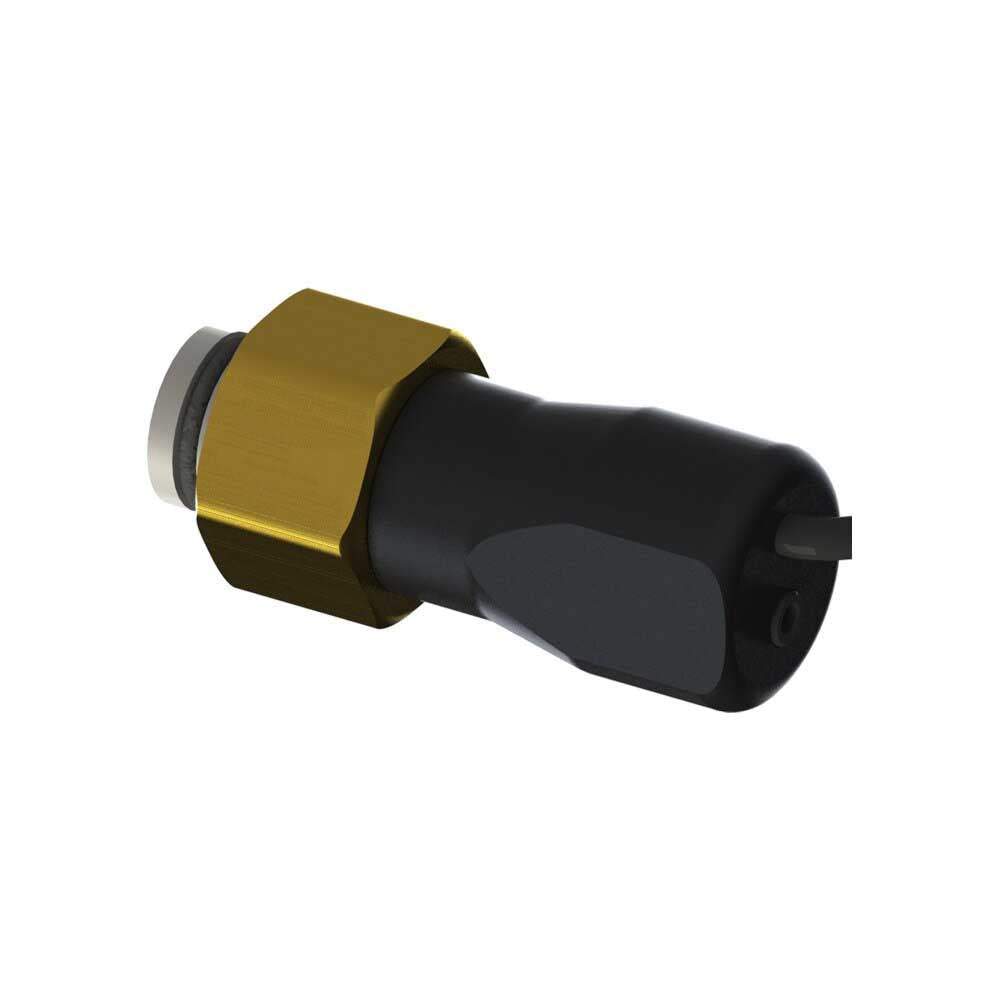

Atlas AUVS-L UV Sensor for L22, L41 & L57 Units

The Atlas AUVS-L UV Sensor is a reliable and efficient solution designed to enhance water treatment systems. Specifically engineered for seamless integration with L22, L41, and L57 units, this sensor offers superior performance while maintaining user-friendly installation and maintenance.

Key Features

• Precision Monitoring: Delivers accurate UV intensity readings for optimized water disinfection.
• Durable Design: Built with high-quality materials for long-lasting performance.
• Infinite Expandability Port (IEP) compatibility: Easily integrates with the system's controller and additional modules.
• Hassle-Free Maintenance: Simple cleaning process ensures consistent functionality.

Easy Installation

Installing the Atlas AUVS-L UV Sensor is quick and straightforward. Follow these steps for proper setup:

1. Align the flat portion of the sensor to face the gland nut, matching the half metal lip on the sensor port.
2. Insert the sensor fully into the port and hand-tighten the sensor nut.
3. Connect the sensor to the Infinite Expandability Port (IEP) located on the controller or Solenoid Connection Module (SCM).
4. Use the built-in male and female connections to daisy-chain additional devices for a streamlined configuration.

With its daisy-chain compatibility, you can connect multiple modules seamlessly, maximizing expansion and operational efficiency.

Simple Cleaning Procedure

To maintain optimal performance, clean the UV sensor periodically or as needed based on water quality. Here’s a step-by-step guide for basic cleaning:

1. Shut off the water supply by closing the inlet valve or turning off the water pump.
2. Disconnect the UV system's power cord from the electrical outlet.
3. Release water pressure by opening a downstream faucet, then close the outlet valve to prevent backflow.
4. Place a container under the reactor to capture any residual water.
5. Unscrew the sensor nut counterclockwise and slowly remove the sensor from the port.
6. Wipe the sensor face (flat portion) using isopropyl alcohol and a clean, lint-free cloth.
7. Reinstall the sensor by following the installation steps.

We recommend performing this cleaning process at least annually to ensure consistent UV intensity readings and system efficiency.

Compatibility with IEP Technology

The Infinite Expandability Port (IEP) makes the Atlas AUVS-L UV Sensor a versatile addition to your water treatment system. Its male and female connectors allow for easy expansion, enabling you to connect various devices in a daisy-chain setup. Whether pairing with a single controller or multiple modules, this sensor integrates effortlessly to enhance overall system functionality.

Why Choose the Atlas AUVS-L UV Sensor?

For users of L22, L41, and L57 units, the Atlas AUVS-L UV Sensor offers unmatched reliability, simple operation, and future-ready compatibility with modular expansion. Depend on this sensor for efficient UV monitoring and streamlined system management.

Enhance your water treatment process today with the Atlas AUVS-L UV Sensor! Ideal for ensuring cleanliness, safety, and a hassle-free user experience.
