PRISM POU-ET VALUE RANGE : Twist-Lock Cartridge

Product Description

Designed for single-use or in parallel offering multiple filter combinations, the PRISM Twist-Lock range of cartridges deliver outstanding performance and flexibility. Suitable for a wide variety of applications from vending to potable water to RO, they are an ideal solution for point-of-need applications. The ultra efficient 1 micron carbon block cartridge offers superior chlorine taste and odour reducing capabilities in addition to improving the water clarity. Protecting expensive / sensitive equipment from particulate build-up, this carbon block is ideal for prolonging the life of down stream appliances and guaranteeing the quality of end products. The cartridges together with the head, form a system which utilises a clever and simple 'twist and lock' design for installing and remove cartridges, requiring no tools to perform filter changeouts.

Carbon

Technology: POU Twist Lock Carbon Block Cartridge
Material: Polypropylene/Coconut Activated Carbon
Performance: Chlorine, Taste & Odour
Micron: 1
Length: 10"
Diameter: 2.5"
Temperature Rating (°C): 38
Max Pressure (bar): 6.9
Flow Rate (lpm): 3.8

Sediment

Technology: POU Twist Lock Depth Cartridge
Material: Polypropylene/Polypropylene
Performance: Sediment Reduction
Micron: 5
Length: 10"
Diameter: 2.5"
Temperature Rating (°C): 38
Max Pressure (bar): 6.9
Flow Rate (lpm): 3.8

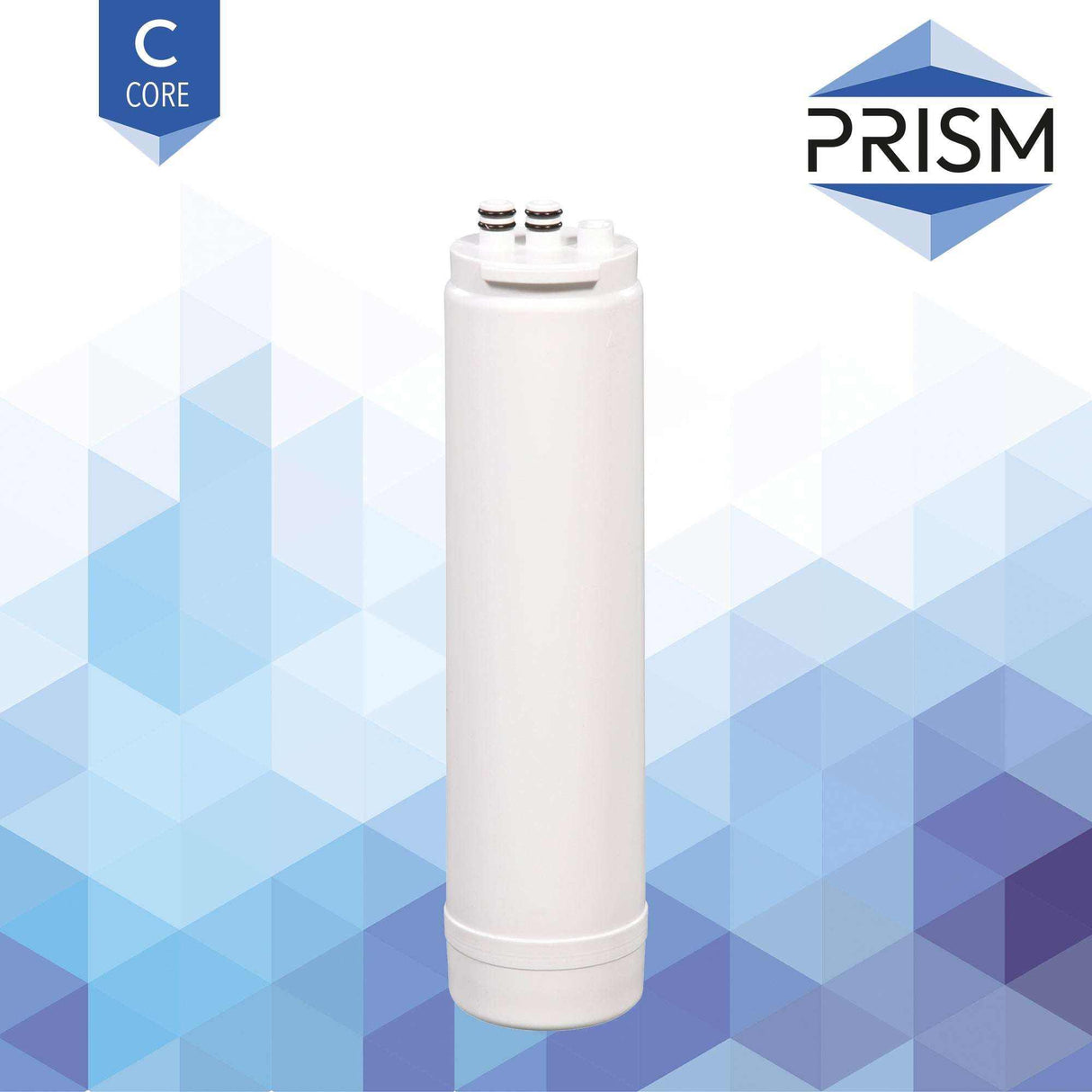

Reverse Osmosis Membrane

Technology: Twist Lock Reverse Osmosis Membrane
Material: Thin Film Composite Polyamide
Avg Rejection (%): 97
Performance: Purified Drinking Water
Length: 10"
Diameter: 2.5"
Temperature Rating (°C): 38
Max Pressure (bar): 6.9

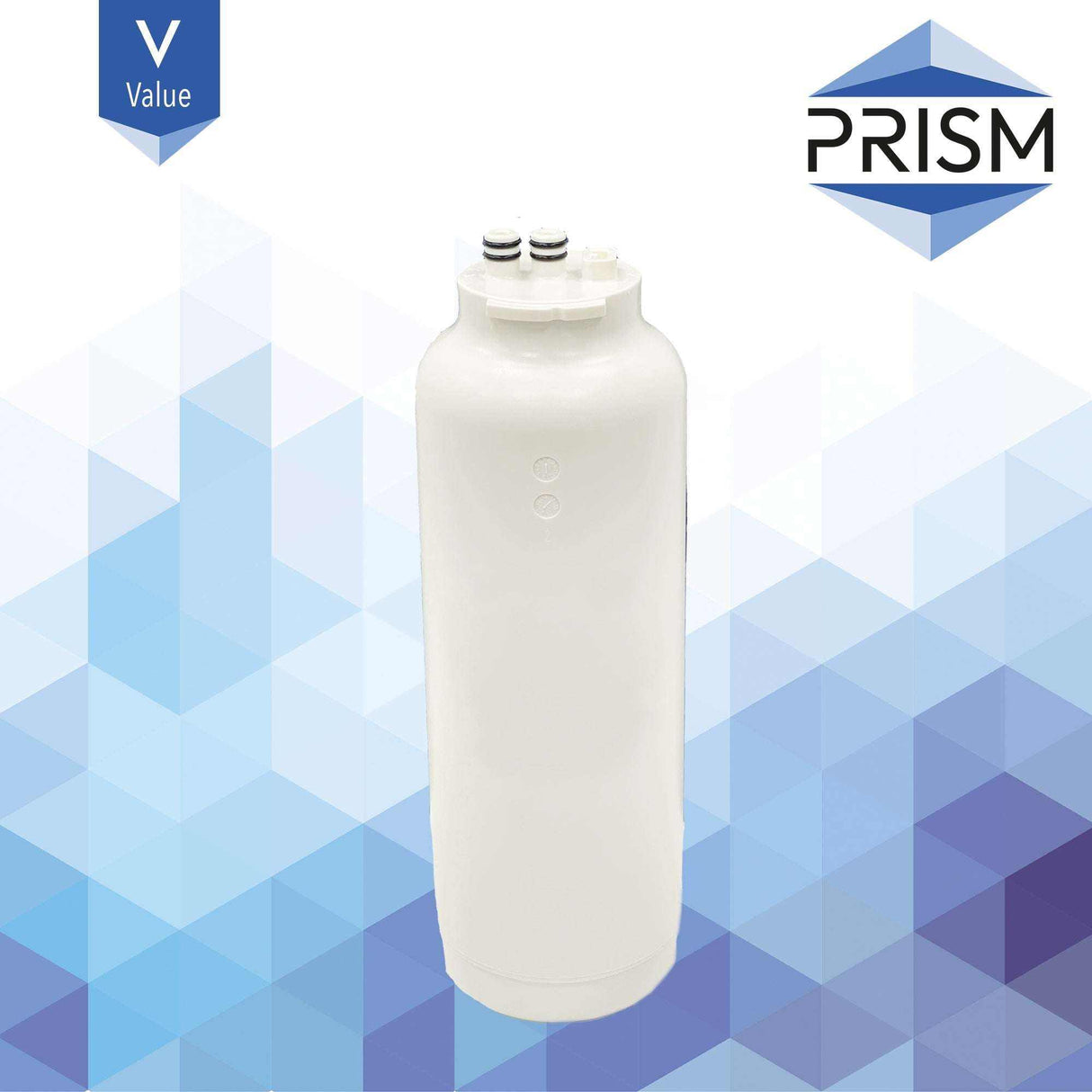

Hollow Fibre Membrane

Technology: POU Twist Lock Hollow Fibre Cartridge
Material: Polypropylene/Polyethersulfone Hollow Fibre
Performance: Cyst Reduction
Micron: 0.025
Length: 10"
Diameter: 3.5"
Temperature Rating (°C): 38
Max Pressure (bar): 6.9
Flow Rate (lpm): 2.6

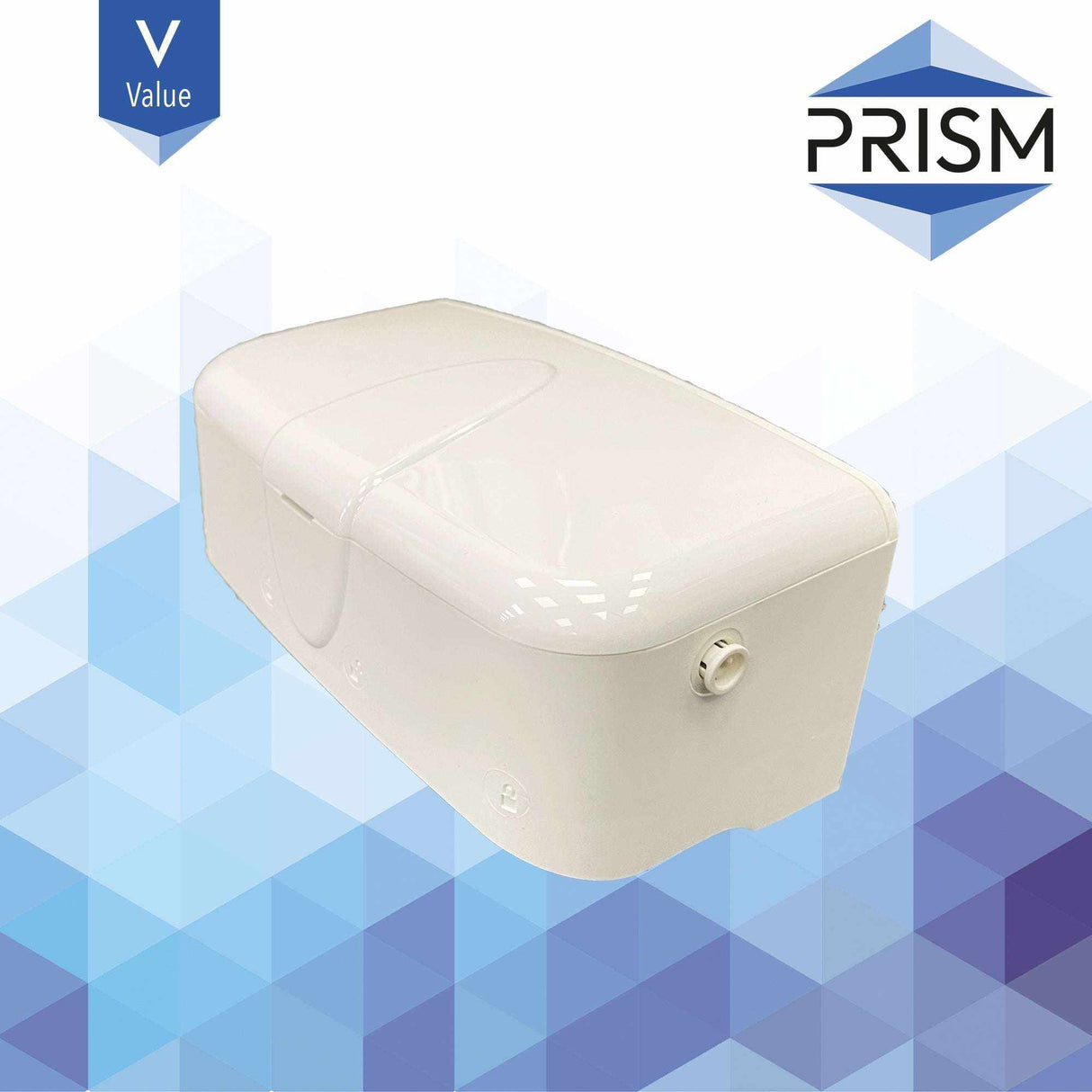

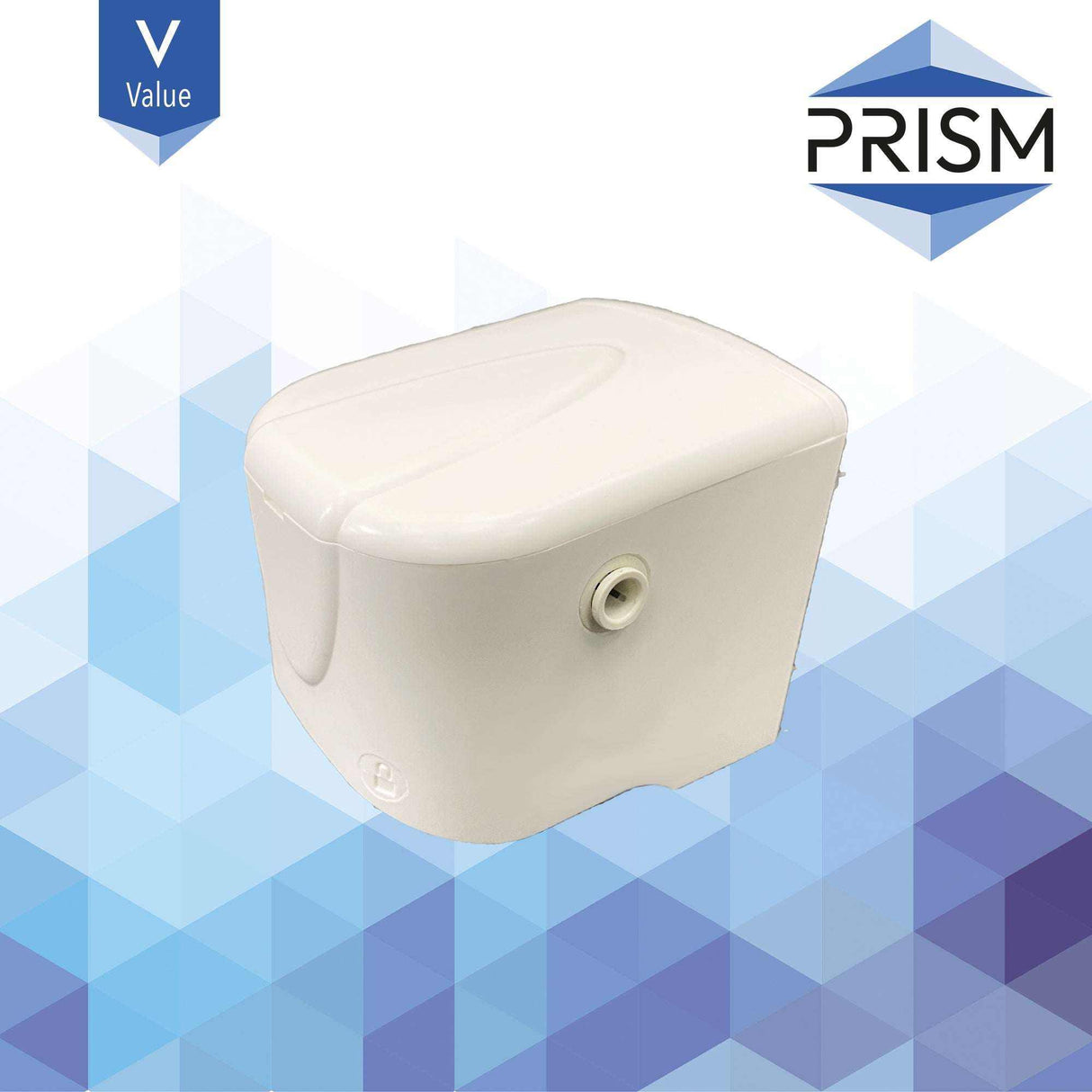

Head

Technology: Twist Lock Filter Cartridge Head
Material: Polypropylene
Port Size/Type: 1/4" Push Fit
Max Pressure (bar): 6.9
Configuration: 1 x or 2 x PTL cartridges
