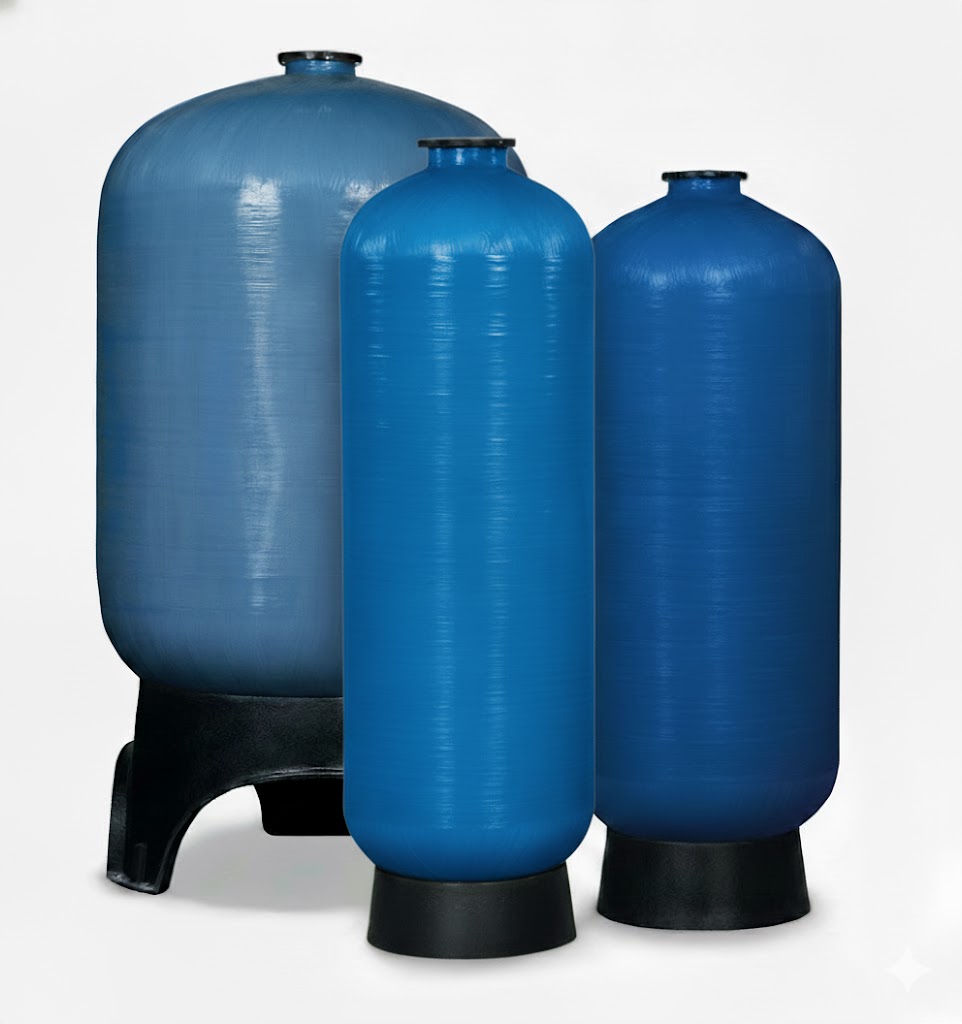

Composite Vessel 6" Flanged Top and Bottom Hole
Composite Vessel 6" Flanged Top and Bottom Hole - C-3078-F7 30" x 78" 710 Litres is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Composite Vessel 6" Flanged Top and Bottom Hole
Description
Description
Product Description
The non-corrosive, cost-effective solution for commercial/industrial water treatment and storage. Structural Composite Pressure Vessels offer fiberglass construction for outstanding performance and durability in harsh chemical environments. With capacities up to 1600 gallons and a variety of options, we can tailor a vessel to meet your needs.
Features & Benefits
• 100% composite fiberglass construction
• Outstanding performance and durability in harsh chemical environments
• Absolutely will not - and cannot - rust
• Requires little or no maintenance
• Capacities up to 2500 gallons
• Factory-backed 5-year warranty
•Materials of construction: Polyethylene inner shell
Pentair
• Safety factor: 4:1
• Minimum burst at 600psi
• Tested to 250,000 cycles without leakage
NSF
• Safety factor: 4:1
• Minimum burst at 600 psi
• Tested to 100,000 cycles without leakage
ASME
Top/bottom flange:
• Safety factor: 5:1
• Minimum burst at 750 psi
• Tested to 33,000 cycles without leakage
Side flange:
• Safety factor: 6:1
• Minimum burst at 900 psi
• Tested to 100,000 cycles without leakage
• Maximum operating pressure: 150 psi
• Maximum operating temperature: 150° F (flanged), 120° F (threaded)
