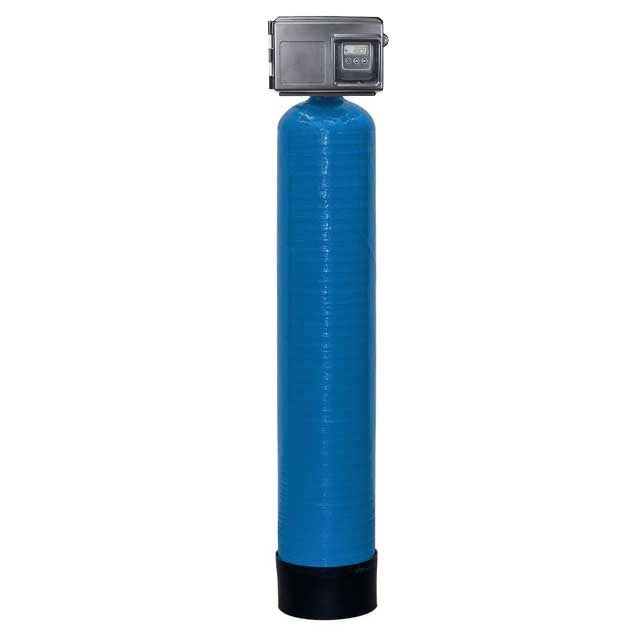

Turbidex Sediment Filter with Fleck Valve (1.5 to 19.0 m3/hr)

Superior Sediment Filtration Solution

The Turbidex Sediment Filter with Fleck Valve is designed to deliver high-quality sediment filtration, catering to flow rates from 1.5 to 19.0 m3/hr. This advanced system is ideal for applications requiring efficient and reliable sediment removal.

Key Features

• Efficient Media: Utilizes Turbidex media for exceptional sediment filtration performance.
• No By-Pass Option: Ensures water doesn't bypass the filter during the flush cycle, maintaining consistent filtration quality.

Technical Specifications

• Connection Inlet & Outlet: Equipped with 1" BSP connections for easy integration into existing systems.
• Electrical Requirements: Operates at 230-24V / 50 Hz with a power consumption of 55 watts.
• Pressure Conditions: Functions effectively with a minimum inlet pressure of 200 kPa (2 Bar) and can handle up to 700 kPa (7 Bar).

Operating Conditions

• Temperature Capacity: Can operate efficiently at a maximum water temperature of 43ºC.
• Average Pressure Loss: Maintains a pressure loss of about 100 kPa (1 Bar).

Installation and Maintenance

• Media Longevity: The lifespan of the Turbidex media depends on the frequency of backwashing and site-specific conditions.
• Assembly Requirements: Ships partially assembled and requires programming in our workshop—contact us for lead time.

Opt for the Turbidex Sediment Filter with Fleck Valve to ensure optimal sediment removal, enhancing water quality and system longevity in your water treatment applications.
