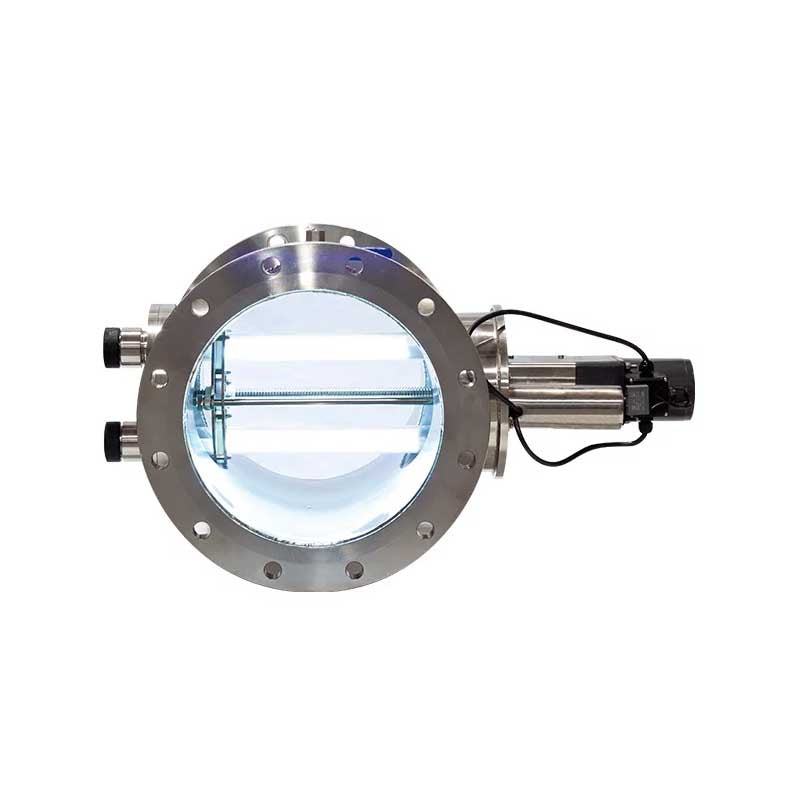

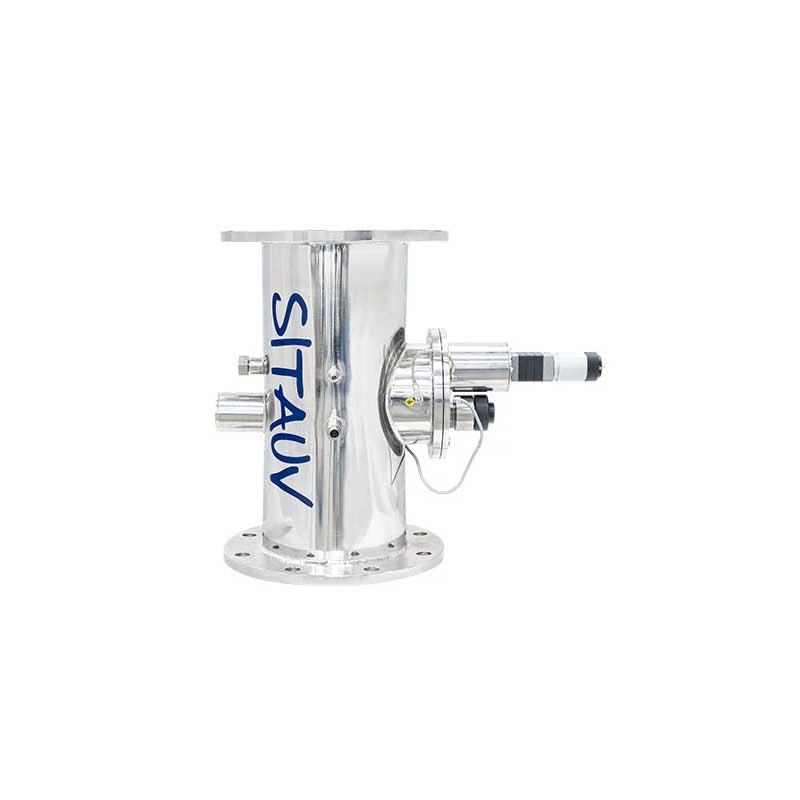

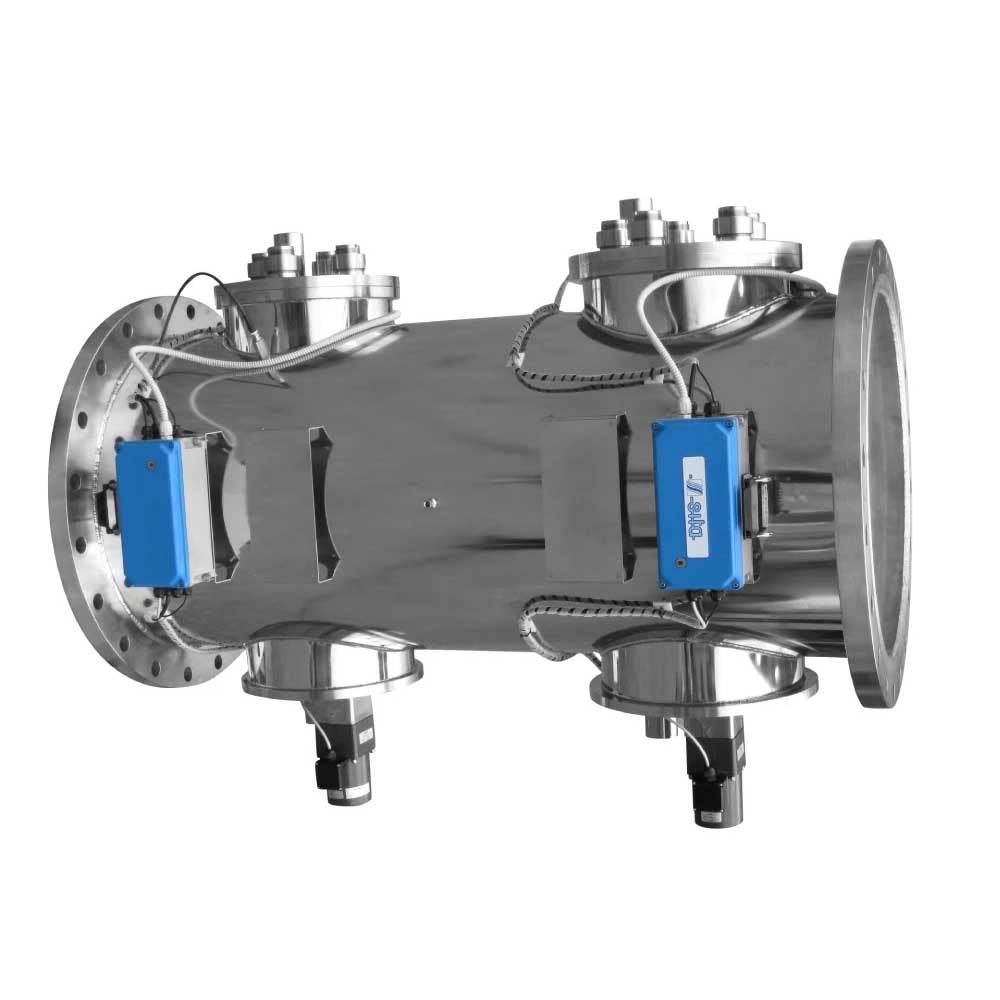

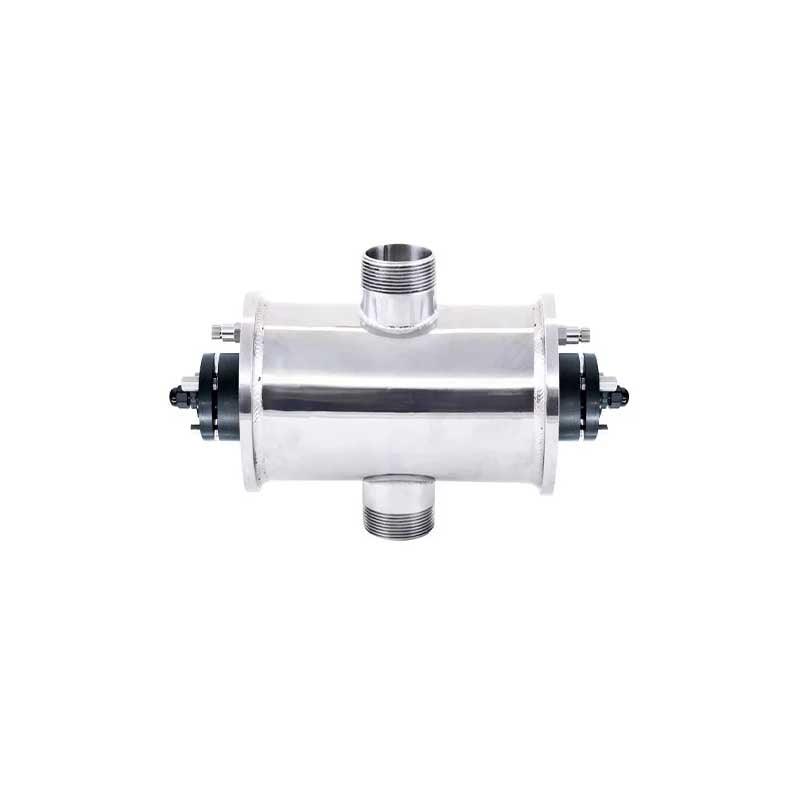

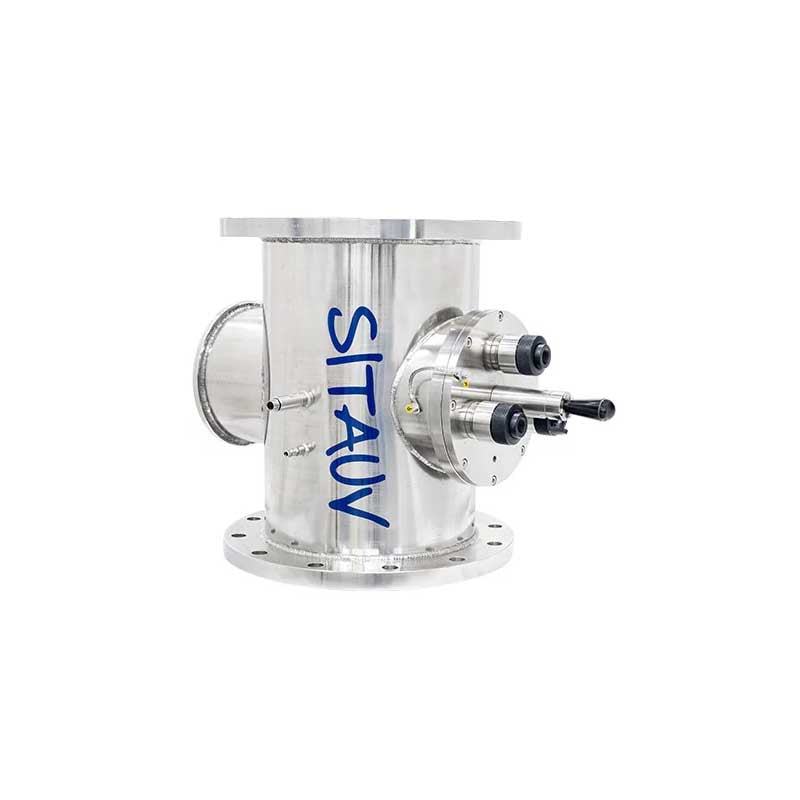

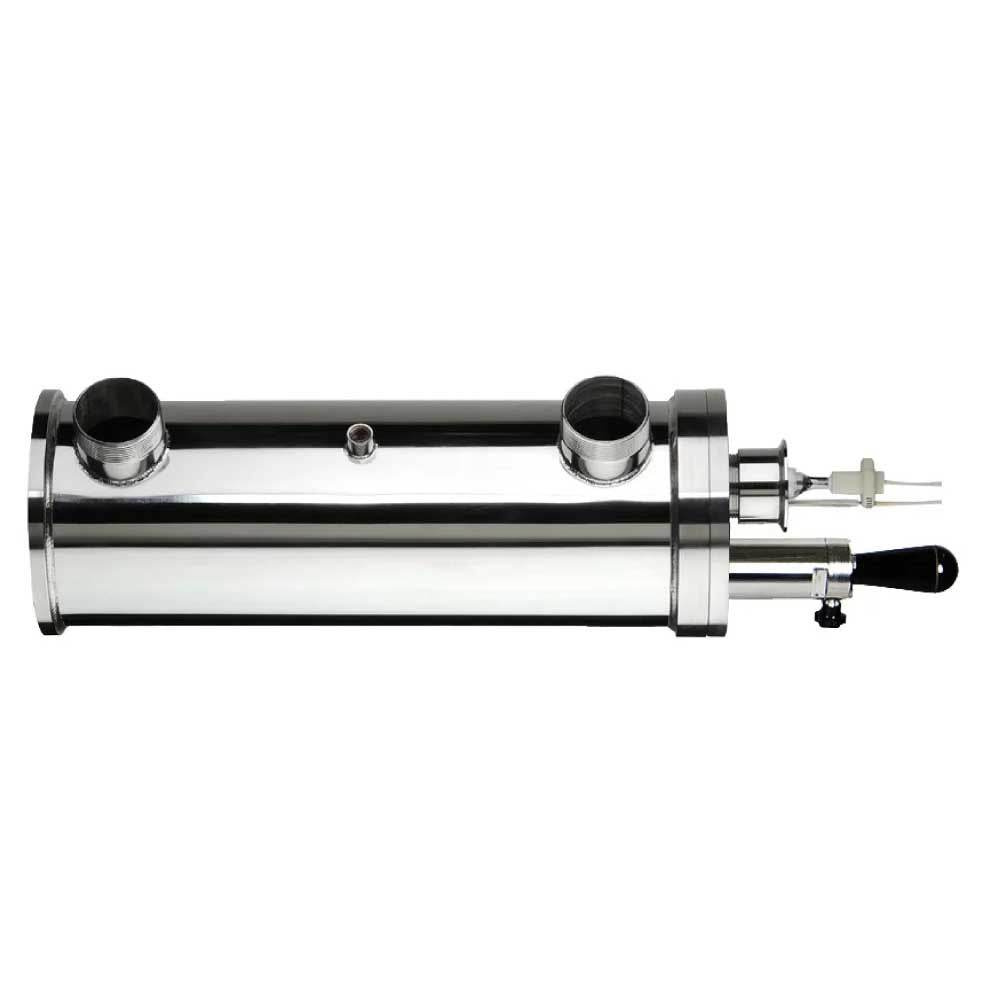

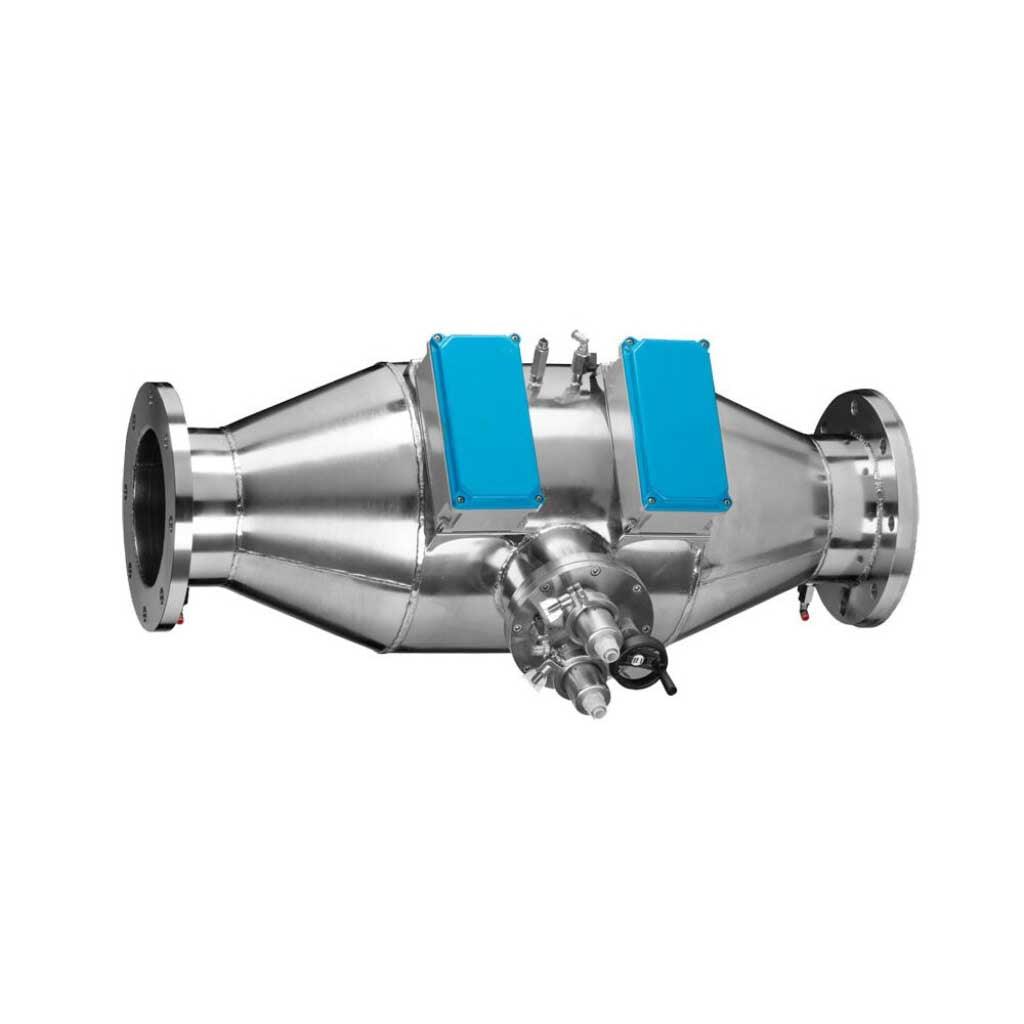

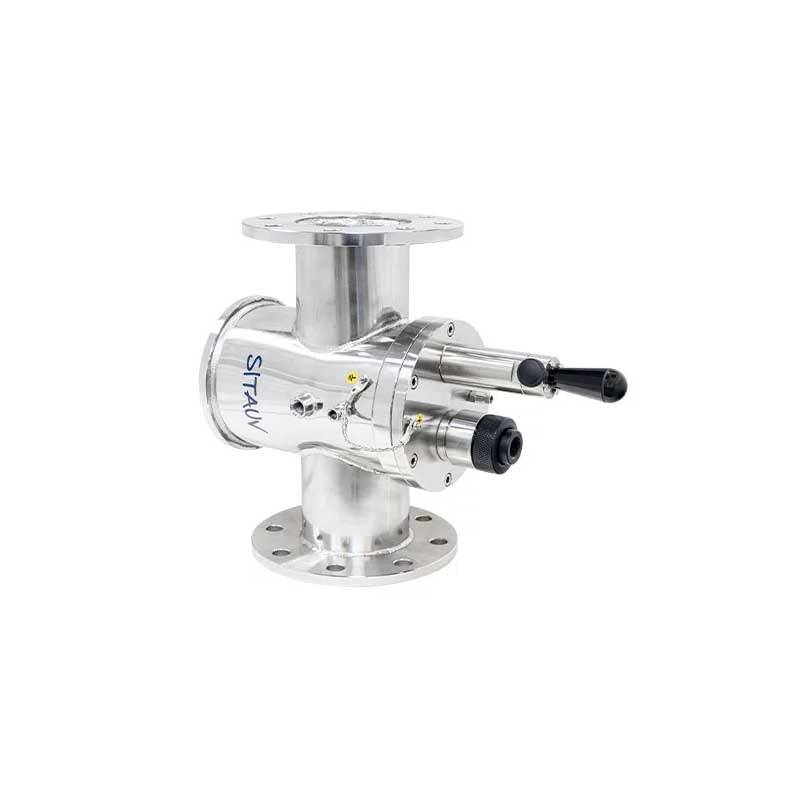

Sita SMP Medium Pressure Range UV System

Sita Medium Pressure UV systems use medium-pressure lamps ranging from 300W to 12kW. Their key feature is the highly compact configuration, requiring minimal space for installation.

FLOW RATE: Up to 20 m3/h (depending on the recirculation frequency)

LAMPS: Medium-pressure UV lamps

LAMP LIFE: Up to 10.000 hours

UV CHAMBER MATERIAL: 316L stainless steel

HYDRAULIC CONNECTIONS: From 2"M to DN600

MAX PRESSIONE: 10 bar

SYSTEM CONFIGURATION: In-line

WATER QUALITY: UV Transmittance Range: 85-99% - 1 cm

Life Span Lamps: 6000 hours

The UV systems by SITA MEDIUM PRESSURE, given the higher power emitted by the lamps, can treat large water flows while maintaining compact dimensions and with a modest number of lamps.

Thanks to the powerful medium-pressure UV lamps with polychromatic emission (180-600 nm), SMP systems are able to break chemical bonds and therefore achieve a good reduction of unwanted chemical substances in water.

Such UV systems find interesting application in SWIMMING POOLS as they reduce the high concentration of combined chlorine, the main cause of irritations and unpleasant odours. They can also be conveniently applied in water treatment plants and as a post-treatment for wastewater.

Entirely constructed in 316L stainless steel, these very compact systems can be installed both vertically and horizontally. To facilitate maintenance operations, the systems can be opened from one side.

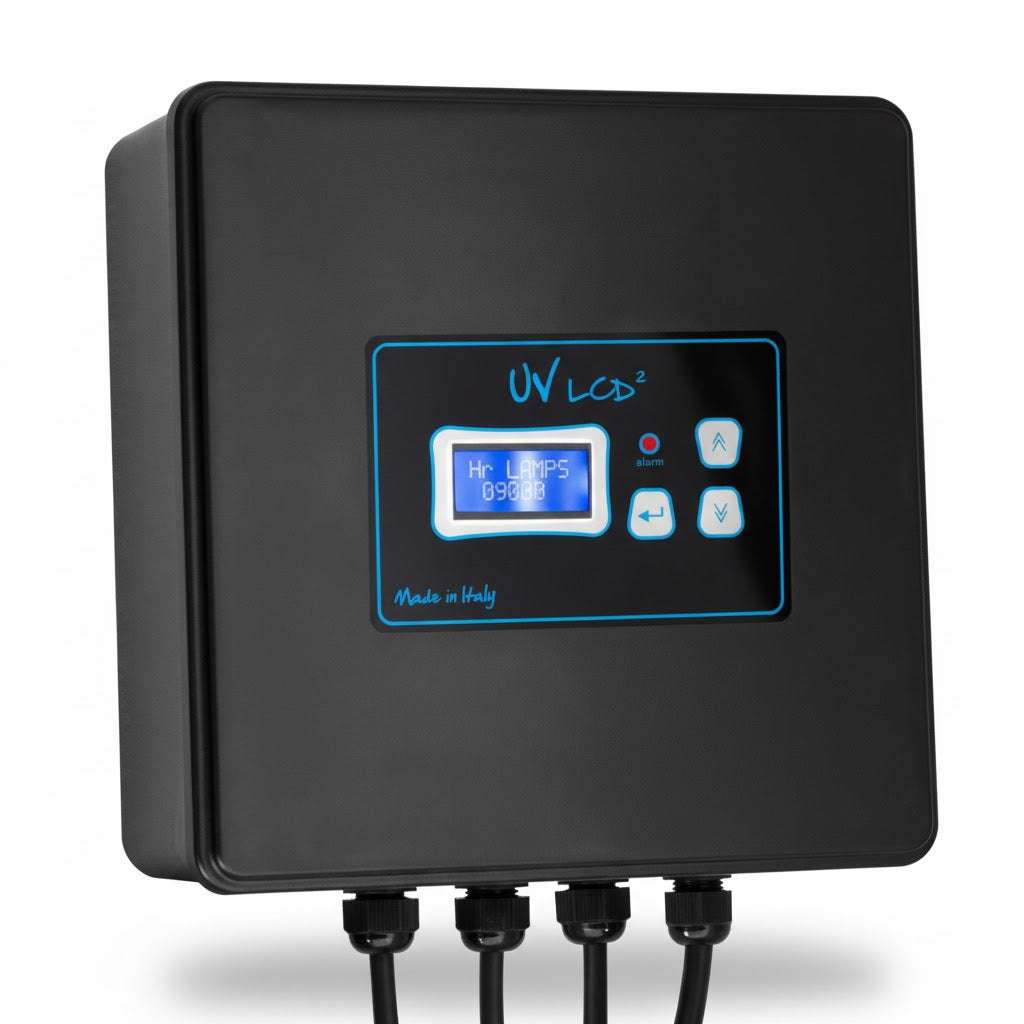

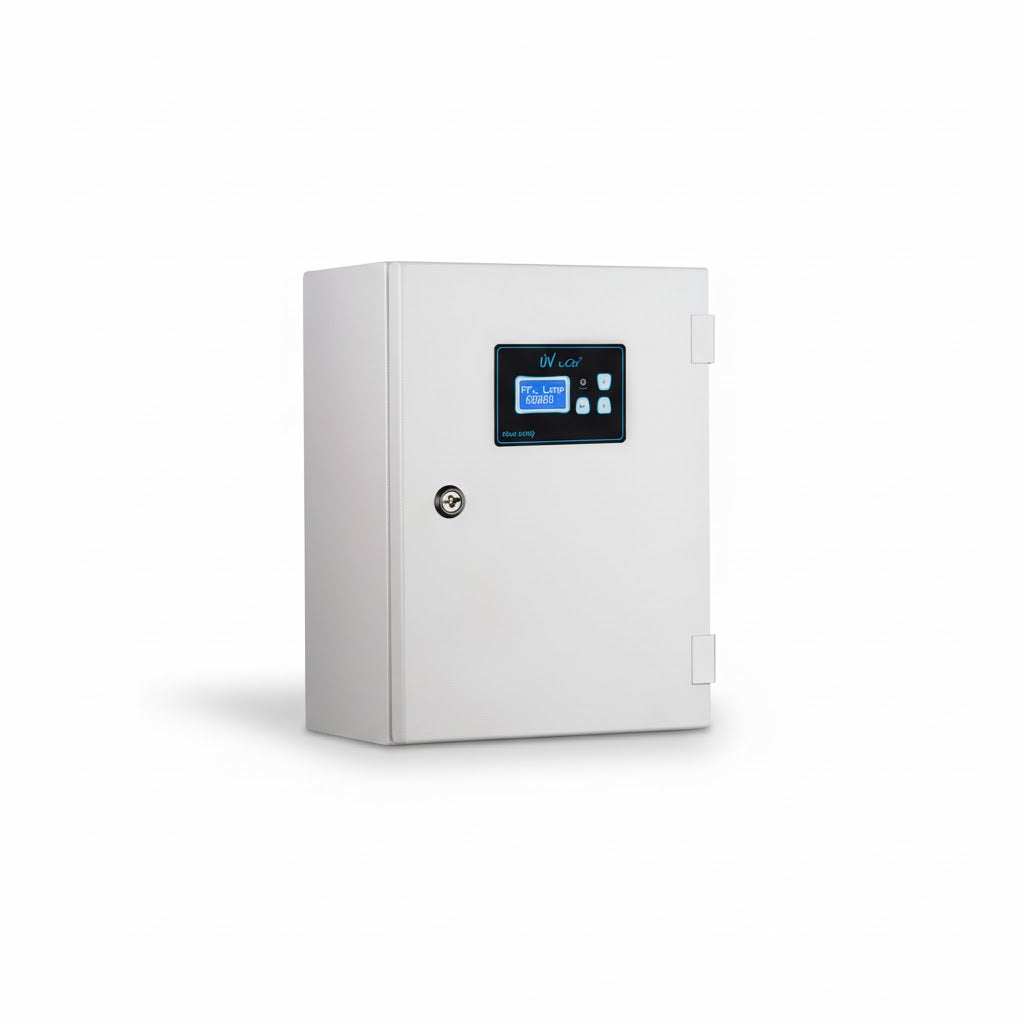

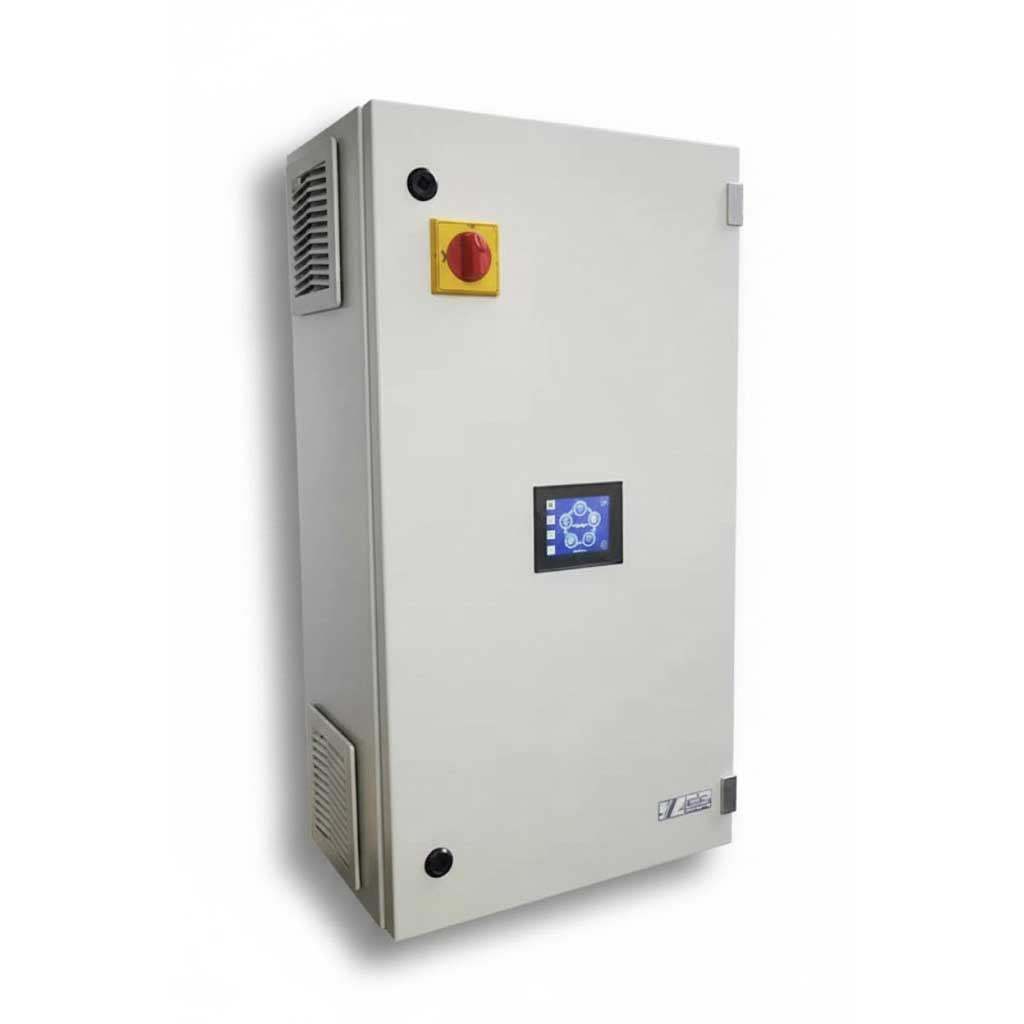

ELECTRICAL PANEL

MODEL: ECOLINE - TC

DISPLAY: LCD - TOUCH SCREEN

IP PROTECTION: 54 (more on request)

LAMP POWER REGULATION: 50-100% (on TC version)

PANEL MATERIAL: Painted steel (more on request)

POWER SUPPLY: 230V - 50-60Hz / 400V 50-60Hz (more on request)

Finally, it is possible to eliminate the annoying problems caused by chlorine by-products:

• red eyes
• smell of chlorine
• skin irritation
• allergies
• asthma
