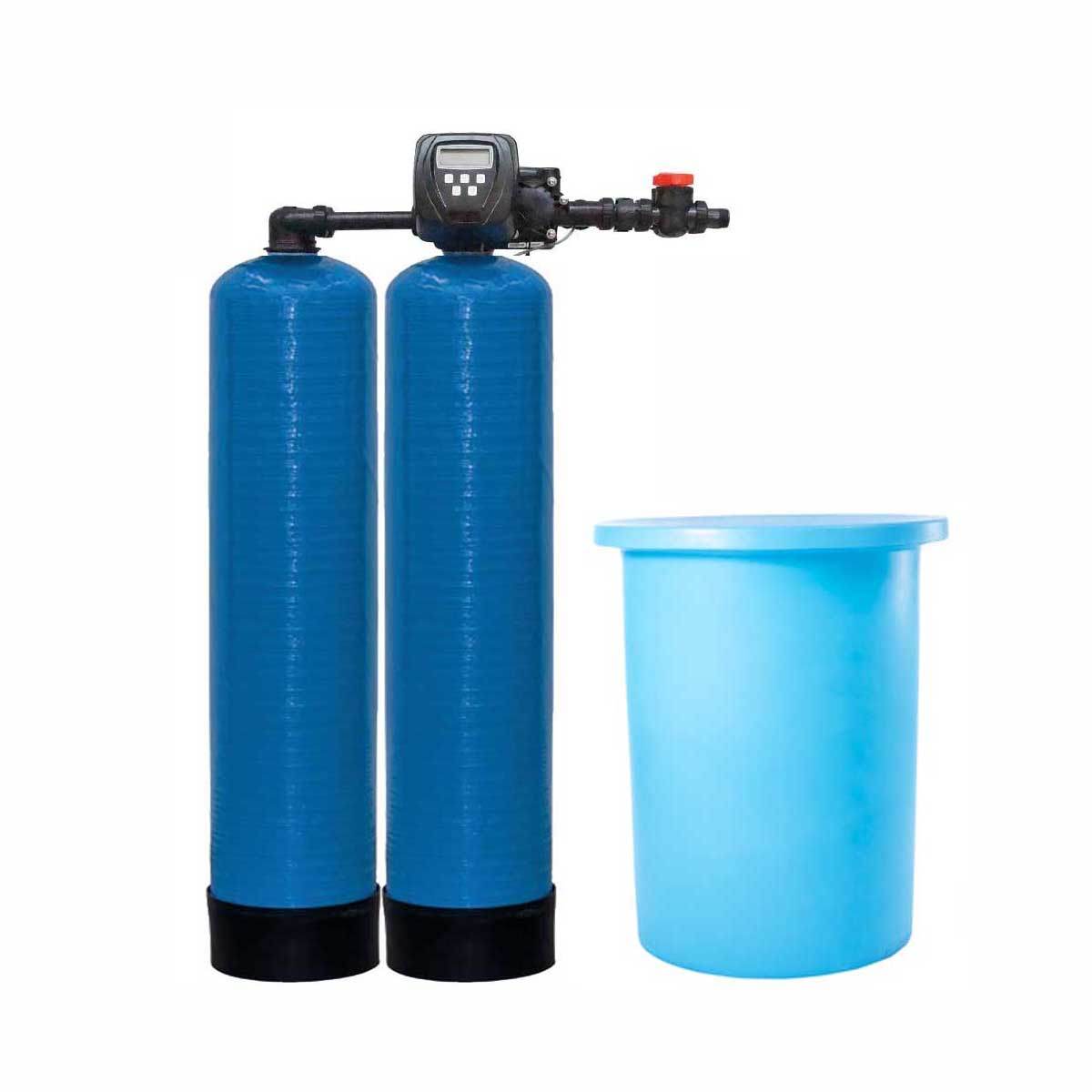

Duplex Nitrate Reduction System with Clack WS1CITT (1.7 - 6.2 m³/hr)
Duplex Nitrate Reduction System with Clack WS1CITT (1.7 - 6.2 m³/hr)
Duplex Nitrate Reduction System with Clack WS1CITT (1.7 - 6.2 m³/hr)
The Duplex Nitrate Reduction System with Clack WS1CITT is a high-capacity solution for efficiently removing nitrates from water using advanced ion exchange resin technology. With a flow rate of up to 6.2 m³/hr, this system ensures reliable and consistent water treatment for homes, businesses, and agricultural operations.
Built for durability and precision, the system guarantees nitrate-free water with seamless performance.
Features at a Glance
- Clack WS1CITT Valve for precise meter-controlled operation.
- Duplex Configuration enables uninterrupted water supply during regeneration cycles.
- Nitrate Selective Resin for effective nitrate removal.
- Wide Operating Range to accommodate varying flow rates and applications.
- Flexible Design that supports residential, commercial, and agricultural needs.
Why Choose a Nitrate Reduction System?
Excess nitrates in water can cause serious health risks, such as "blue baby syndrome" in infants. The Duplex Nitrate Reduction System ensures water meets safe nitrate limits by using ion exchange technology to replace nitrates with safe chloride ions, offering clean and healthy water.
Benefits of the Duplex Nitrate Reduction System
- Continuous performance with no downtime during regeneration.
- Cost-effective operation with salt-based resin regeneration.
- Robust, reliable, and designed for long-term use in demanding environments.
System Specifications
| Resin Volume | Max Flow Rate | Salt Usage per Regen (kg) | Capacity @ 50 mg/l (m³) | Vessel Size | Connection Size |
|---|---|---|---|---|---|
| 42L | 1.7 m³/hr | 7 kg | 17 m³ | 10" x 54" | 1" |
| 75L | 3.2 m³/hr | 13 kg | 30 m³ | 13" x 54" | 1" |
| 100L | 4.0 m³/hr | 17 kg | 40 m³ | 14" x 65" | 1" |
| 150L | 6.0 m³/hr | 25 kg | 60 m³ | 16" x 65" | 1" |
| 200L | 6.2 m³/hr | 34 kg | 70 m³ | 18" x 65" | 1" |
Dimensions and Notes
- Smaller systems (42L to 100L) are compact and ideal for homes or small businesses.
- Larger systems (150L to 200L) suit commercial or agricultural applications with higher water demands.
- Duplex configurations ensure uninterrupted performance during regeneration.
Applications
The Duplex Nitrate Reduction System is perfect for:
- Homes: Provides clean, nitrate-free water for drinking, bathing, and cooking.
- Commercial Premises: Ensures quality water for restaurants, offices, and food processing units.
- Farms & Agriculture: Keeps water safe for livestock, irrigation, and crops.
How the System Works
- Ion Exchange Process: The water passes through a vessel filled with nitrate-selective resin, where nitrates are removed and replaced by chloride ions.
- Regeneration Cycle: The resin is periodically cleaned with salt to restore its capacity for nitrate removal.
- Duplex Design: One unit remains active while the other regenerates, ensuring continuous water flow.
Key Considerations for Sizing
When selecting the right size for your system, consider your daily and peak water usage. Here’s a guideline:
- Each person typically uses 160 liters of water daily.
- For a family of four, an average of 700 liters is used daily, with peak usage being around 300 liters in the morning or evening.
- Larger households or commercial setups with higher demands should opt for systems with greater capacity.
Why This System is a Great Investment
The Duplex Nitrate Reduction System with Clack WS1CITT combines cutting-edge engineering with reliable performance. It offers:
- Healthier, safer water by reducing harmful nitrates.
- Continuous supply of clean water thanks to the duplex design.
- Long-term cost savings with minimal operational costs.
Ensure your water meets safe drinkable standards with this dependable nitrate removal system. Reach out to us today for expert advice and sizing recommendations!
