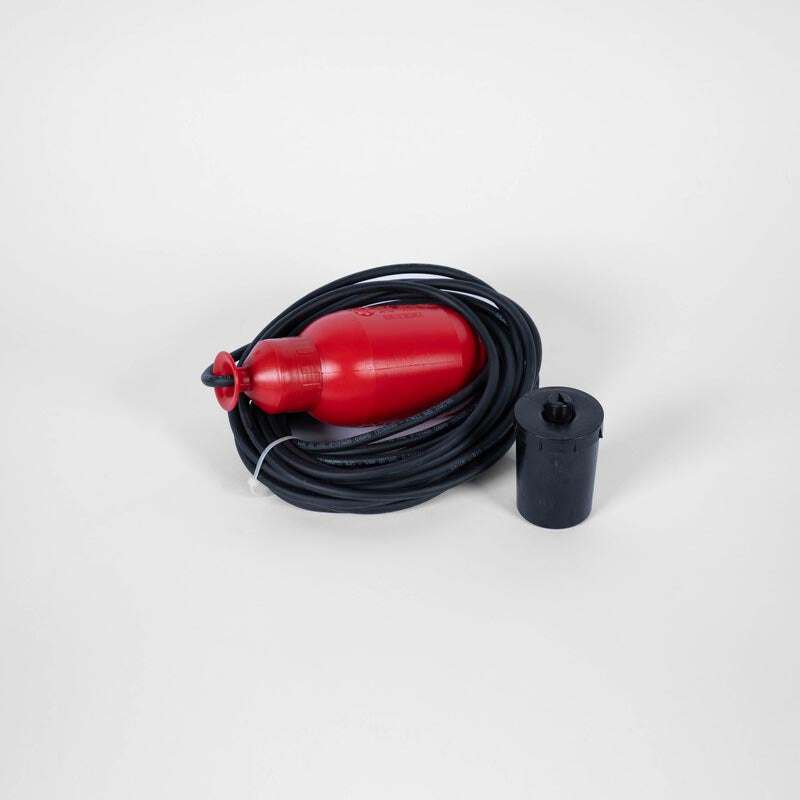

Fantini Cosmi A95 Electromechanical Submersible Level Control 10 m cable
SKU:
5209001691
£114.00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Fantini Cosmi A95 Electromechanical Submersible Level Control 10 m cable is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fantini Cosmi A95 Electromechanical Submersible Level Control 10 m ...
£114.00
Unit price
/
Unavailable
Description
Description
Suitable for monophase pumps with direct control to adjust levels of clear or contaminated water, acid or alkaline aqueous solutions of any density. Do not use for ketonic and aromatic hydrocarbons.
General features
- Blow molded moplen outer casing, chemical resistant and shockproof.
- Intermediate casing filled with polyurethane foam.
- In the inner side is located a two-channel electrical device with two positions.
- Working area of the electrical device is made of lead to prevent blocking and oxidation.
- Adjustable counterweight position to select the level differential.
- Moplen blow molded cable gland on the electrical cable.
- Double insulation.
- Test class: II.
- Storage and transport temperature: -25 ÷ 60°C.
- A95A Unit weight 0.7 Kg.
- A95B Unit weight 1.3 Kg.
Electric features
- Electrical SPDT switch with one way and 2 positions.
- Electrical cable type AØ5VV-F 3×1 RF60 CEI-UNEL 35746.
- Double insulation: 4kW.
Homologation
- Conformity with EN 60730-1, 60730-2-16.
- Homologation TÜV
Installation and use
- Suitable for water
- Waterproof float
- Level control by mean of floats to be made by setting the counterweight position
