Crystal-Right CR200 Highest capacity for removing hardness iron and manganese 1 CuFt (28 litres)

Product Description

Crystal-Right is the ideal media for well water because it can address multiple issues all at once …

Removes manganese and iron
Softens water
Balances pH levels
Reduces ammonia

This means Crystal-Right can do the job of multiple pieces of equipment. Systems using Crystal-Right media can function like an iron filter, a water softener, and an acid neutralizer. It almost seems too good to be true … but that’s what makes Crystal-Right unique.

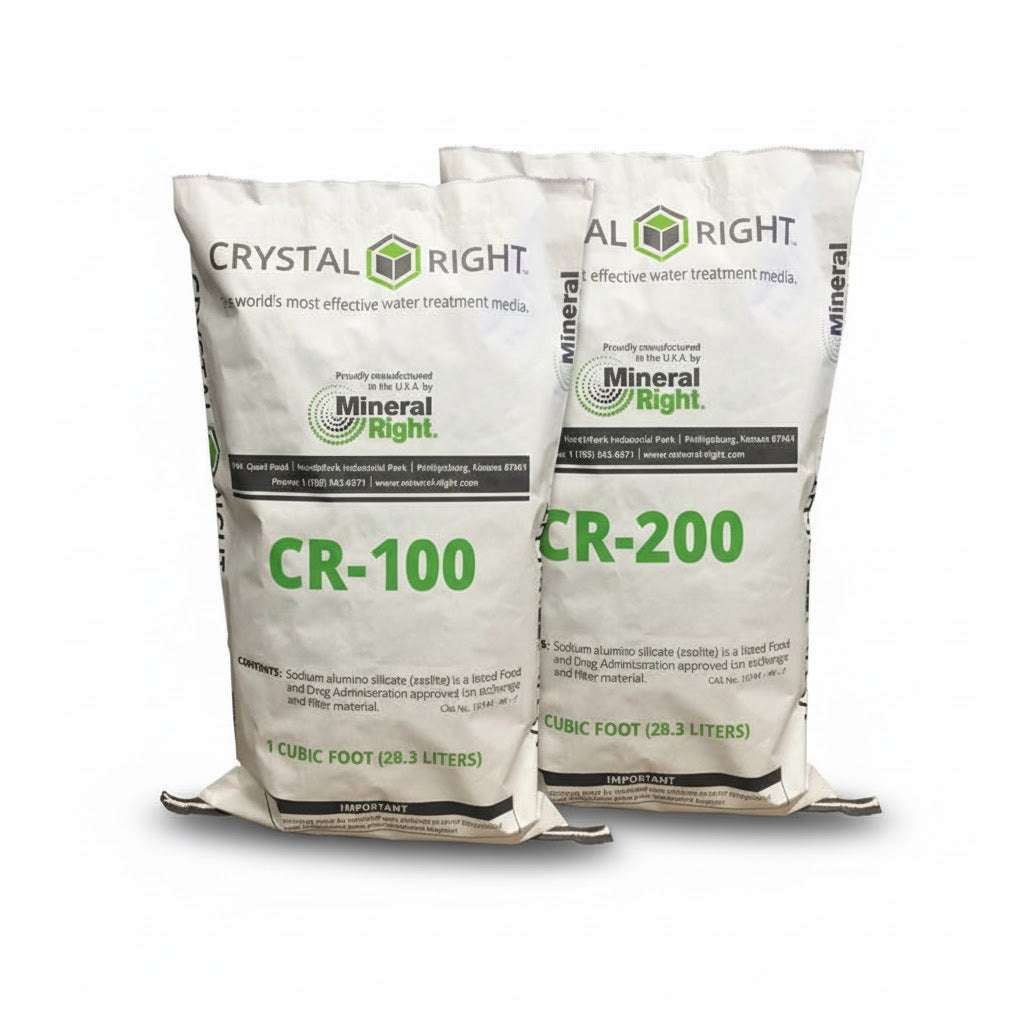

Mineral-Right produces two types of Crystal-Right:

CR100 – High capacity for reducing iron and manganese. Has a lower capacity for reducing hardness. Also, able to balance pH levels of water.
CR200 – High capacity for reducing iron and manganese. Has a comparatively higher capacity for reducing hardness from calcium and magnesium.

The potential for using Crystal-Right to treat municipal water is growing. That’s because many cities are disinfecting water with chloramines (chlorine and ammonia). While carbon filtration can reduce chlorine content, it does not filter ammonia. However, when Crystal-Right media and carbon filtration work together, we can remove both chlorine and ammonia from city water.

Yet another benefit of Crystal-Right is that it can be sanitized during the backwash cycle of regeneration using chlorine. Chlorine will not damage the media. This allows us to use our patented Chlorine Generator along with Crystal-Right units.

Advantages

• Removes at the same time iron, manganese and hardness by ion exchange
• Removes manganese, difficult to remove by classic oxidation
• Absorption of NH3
• Increases the pH (absorption H+)
• Excellent filtration of non-dissolved particles
• A regeneration needs 30% less NaCl than when using classic softeners resins
• Chlorine has no negative impact on Crystal Right and is strongly advised when regenerating to counterattack the proliferation of bacteries.
• No specific requirements for pumps as the backwash flow is lower than the service flow
• Delivered in convenient bags of 22,7kg (28,3L)
• When used appropriately, Crystal Right has a lifetime of 10 year

TERMS OF USE

Crystal right is used for the treatment of non-oxidized iron and manganese (water originating from wells and boreholes.)

CR 100: minimal hardness (50mg/L); TDS > 80 mg/L; pH between 5.7 - 14.
Maximum content of iron- and manganese:15 mg / L

CR 200: minimal hardness (50mg/L); TDS > 80 mg/L; pH between 7 - 14.
Maximum content of iron- and manganese:15 mg/L

Capacity CR100: 30g/L resin; CR200: 40g/L resin.

For the removal of NH3, CR100 is to be used.
Crystal Right cannot be rinsed with classic resin cleaners, CR Clear Out is to be used.

Aluminium should not be present in water

30% -50% freeboard
Density: 1.2 Kg/litre

Crystal Right cannot be rinsed with classic resin cleaners, CR Clear Out is to be used.
