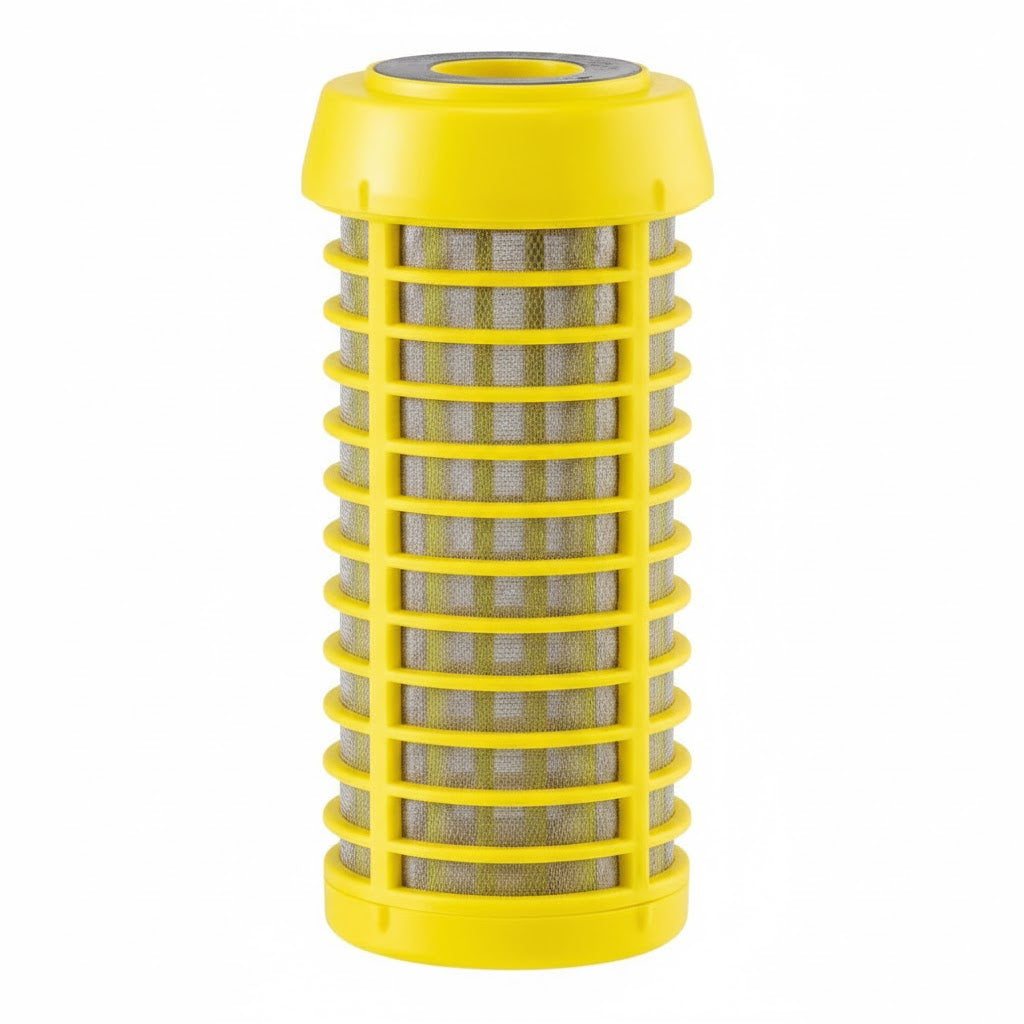

RAH Stainless Steel Cartridge 90 Micron (RA5000020)

Product Description

WASHABLE RAH CARTRIDGES WITH REINFORCED POLYPROPYLENE FRAME AND STAINLESS STEEL NET ARE SUITABLE FOR COARSE FILTRATION WITH WATER LOADED WITH IMPURITIES AND SEDIMENTS, AND ARE DESIGNED EXCLUSIVELY FOR FILTERS OF THE HYDRA AND HYDRA RAINMASTER SERIES.

The AISI 316 stainless steel mesh enables to maintain the filtration efficiency unchanged, eliminating medium-large sediments thanks to countercurrent filter washing: simply open the valve and the inverted water flow will drag impurities away from the surface of the cartridge. The RAH cartridge is available with 7” height, 90 micron nominal filtration and capacity up to 8000 l/h with reduced pressure drops.

Technical Features

• Stainless steel cartridges to remove coarse sediments
• Single open end with flat gasket treated with antimicrobial agent
• Designed for all HYDRA and HYDRA RAINMASTER series filters
• Filtering media: AISI 316 stainless steel net
• Frame and plate: reinforced polypropylene
• Maximum operating temperature: 45°C (113°F)
• Average duration: 24/36 months
• Maintenance: periodically carry out counter-current washing
• Use with potable water. Do not use with microbiologically impure water or of unknown quality

Benefits

• Selected materials, suitable for potable water
• Washable and reusable
• Highly resistant structure thanks to the stainless steel filtering net
• The gasket is protected from bacterial spreading
• High capacity and low pressure drop
• Suitable for well water filtration
