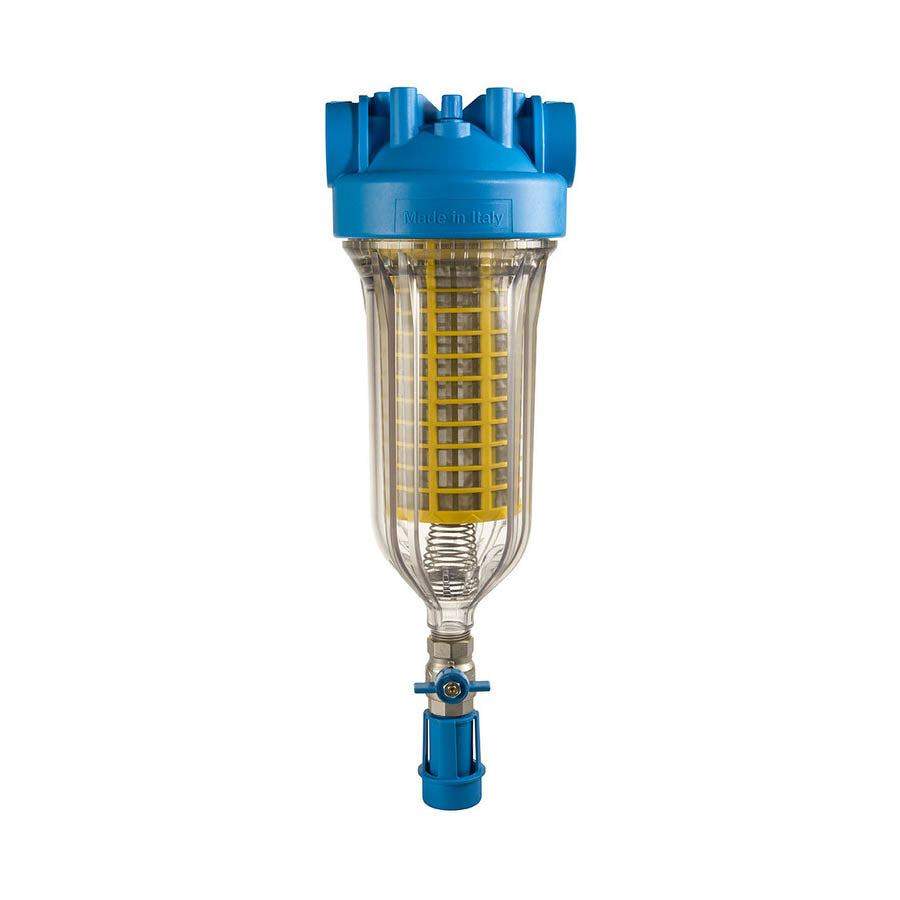

Hydra Single Big RAH Self Cleaning Filter System c/w Stainless Steel 90 Micron Filter 1.5" RA6000012 15 m3/hr

Hydra Big RAH Self Cleaning Filter System

Introducing the Hydra Big RAH Self Cleaning Filter System c/w Stainless Steel 90 Micron Filter 1.5" RA6000012, supplied by GAPS Water Treatment. This advanced filtration system features innovative technology for efficient self-cleaning and superior performance.

Key Features:

• Hydra Big: Utilizes Atlas Hydra self-cleaning filters for optimal filtration.
• Self-Cleaning Operation: The newly designed back-wash system in counter-current ensures the highest particle removal from the filter cartridge.
• Easy Maintenance: Cleaning is activated by opening the discharge valve at the filter bottom. The resulting pressure drop pushes the specially designed cartridge downward, reversing water flow and washing away trapped sediments.
• Sediment Discharge: Sediments are expelled through the bottom valve, which has a drain funnel to prevent backflow contamination, compliant with European Standard UNI EN 1717/2002.
• Filter Cartridges: Available in three models:
  • RAH: Stainless steel net cartridge, filtration at 90 microns.
  • RLH: Plastic net cartridge, filtration at 90 microns.
  • RSH: Pleated plastic net cartridge, filtration at 50 microns.
• Antimicrobial Protection: Features grey flat gaskets with silver-based antimicrobial agents included in the gasket plastic matrix.

Premium Materials and Certification:

The Hydra Big RAH Self Cleaning Filter System is manufactured using the finest and most advanced materials, ensuring the highest quality. Certified under the most stringent standards:

• ACS (France)
• ANSI/NSF (USA)
• GOST (Russia)

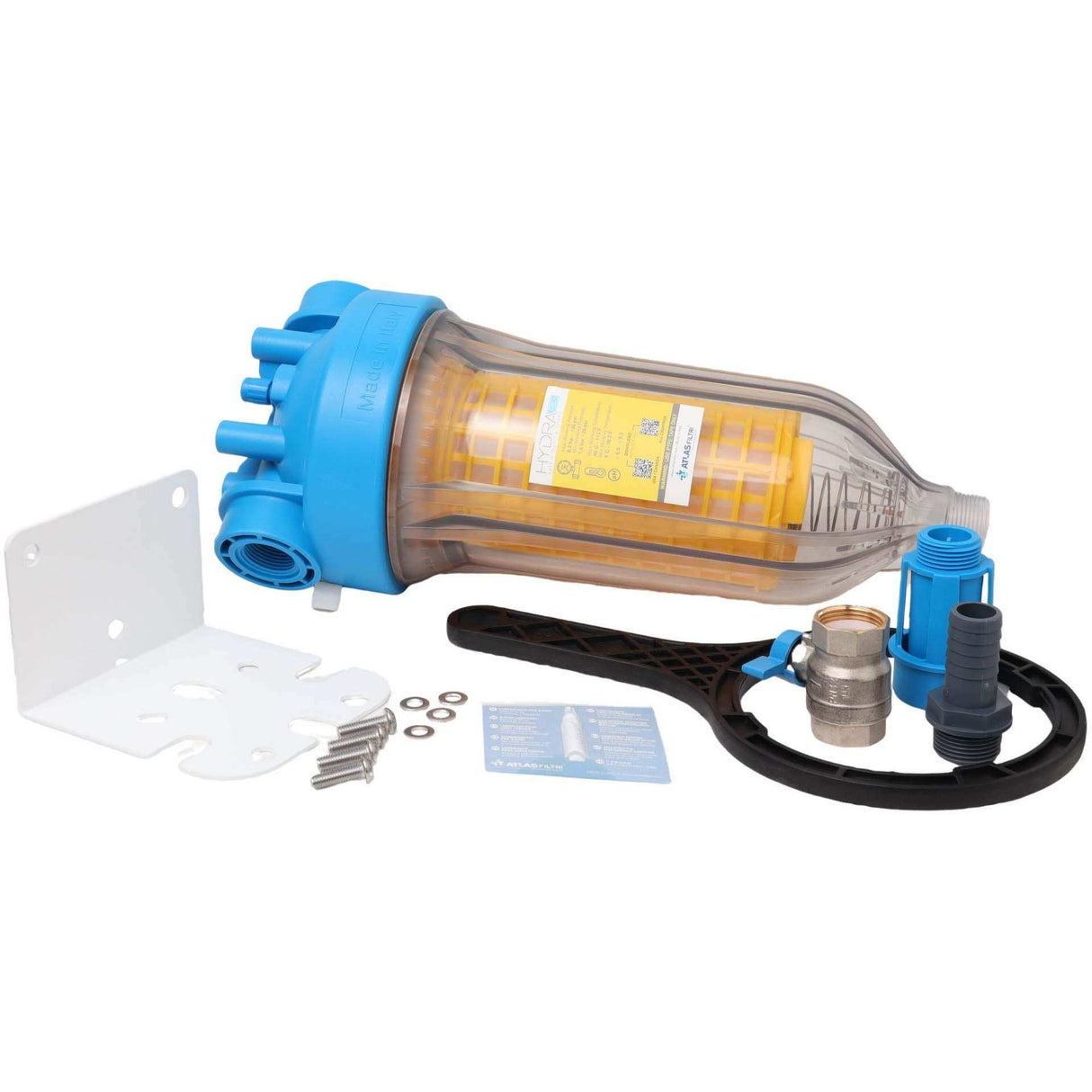

Complete with Accessories:

Each HYDRA filter system is supplied with a full set of accessories, including:

• Wall bracket
• Opening spanner
• Discharge hose-holder
• Drain funnel
• Complete discharge valve kit

Optimize your water filtration with the Hydra Big RAH Self Cleaning Filter System, supplied by GAPS Water Treatment. Experience innovation and reliability with Hydra Big.
