Pump Panel with Differential Pressure (Magnetic Filter Fouling Box)
Description
Description

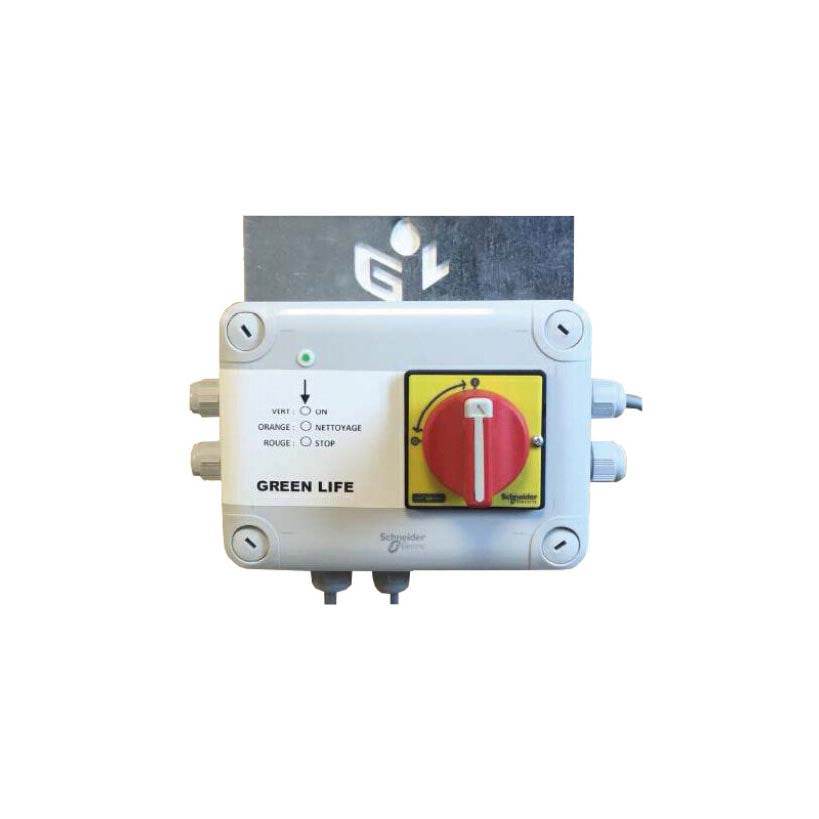

The Pallas magnetic filter fouling box allows the measurement of the pocket's soiling.
This kit is installed in addition to your pocket filter. It allows you to transmit the status of the pocket filter in real time via a dry contact.
The box can be installed either on the filter or on the protective cover. It is inserted between the two manometer tappings. This connection allows the manometers to be fitted for visual reading of the value and to transmit the information to the sensor box.
- Can be used with all of the bag filters
- Reduces the risk of bag clogging
- Allows the circulator to be electrically controlled
- Filter and / or circulator defect carry over alarm
- Light to indicate the status of the filter on site
- Opportunity to set the pressure engagement threshold from 0.4 bat (defect 0.6)
- Two pressure sensors in 4-20 mA
- Panel controller easier mounting on the nameplate
- Belt option available if used with insulating jackets
