GreenLife Magnetic Bag Filter DN20 3/4" 1 Magnet 5-7m³/hr
£781.00 Excl. VAT
QUESTIONS AND ANSWERS

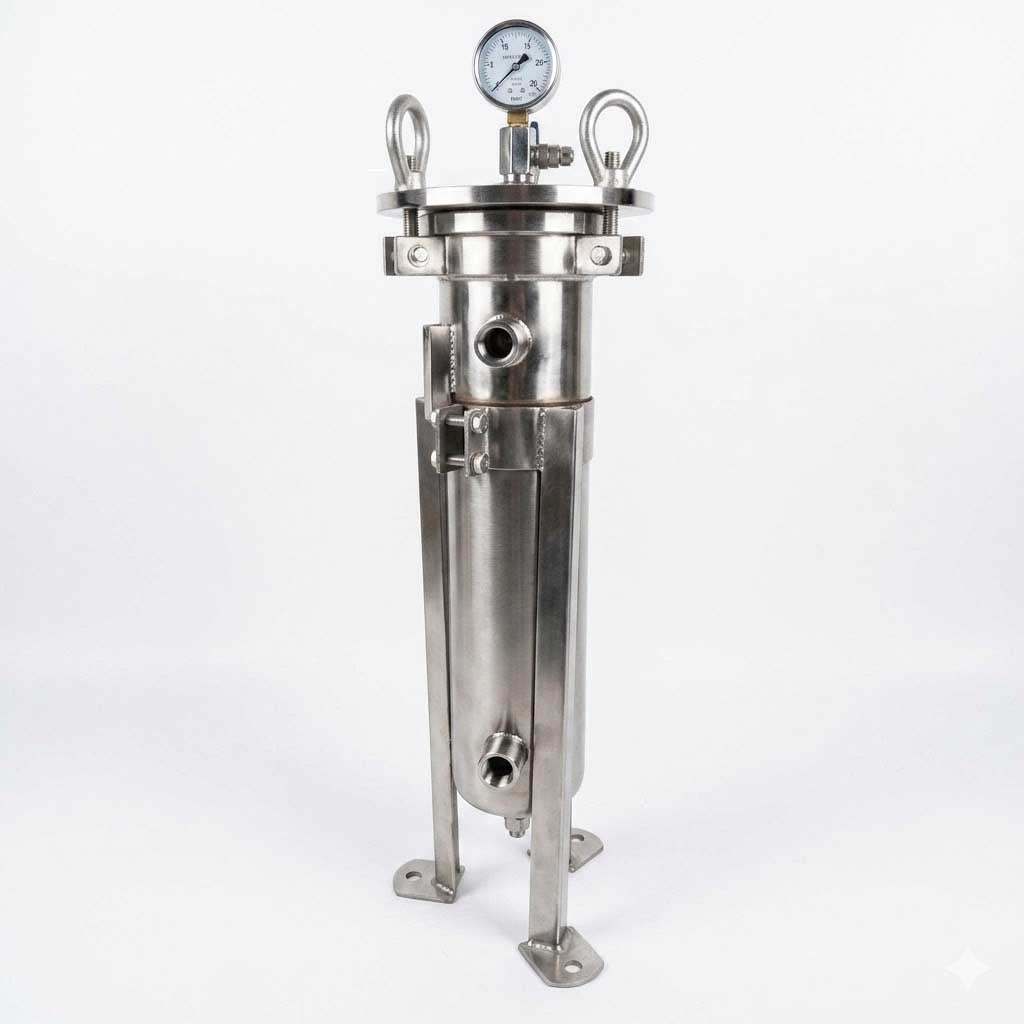

GreenLife Magnetic Bag Filter DN20 3/4" 1 Magnet (5-7m³/hr)
The GreenLife Magnetic Bag Filter DN20 is a compact and efficient solution for maintaining the clarity and efficiency of water systems. Designed for smaller-scale heating and cooling applications, this filter offers superior protection against corrosion, clogging, and sludge formation. Its durable stainless steel construction and advanced features make it a reliable addition to any water treatment setup.
Key Features
-
Superior Water Clarification
Captures metallic particles, sludge, and sediments that can damage your system. -
50-Micron Filtration
A robust filter bag stops particles larger than 50 microns, while the magnetic bars trap ferrous contaminants. -
Durable Stainless Steel Body
Polished 304 stainless steel ensures long-lasting durability and resistance to corrosion. -
Adjustable Feet for Flexibility
Stainless steel adjustable feet provide stability and simplify installation across a variety of setups. -
Enhanced System Protection
Prevents energy loss, efficiency decay, and equipment wear by maintaining clean water circulation. -
Built-in Conditioning Product Compatibility
Allows for the dosing of corrosion inhibitors or antiscalants to protect your system further.
Dimensions and Technical Specifications
Specification | Details |
---|---|
Flow Rate | 5-7 m³/hr |
Filtration Thickness | 50 microns |
Pressure Drop | 0.15 Bar |
Max Pressure | 10 Bar |
Max Temperature | 90°C |

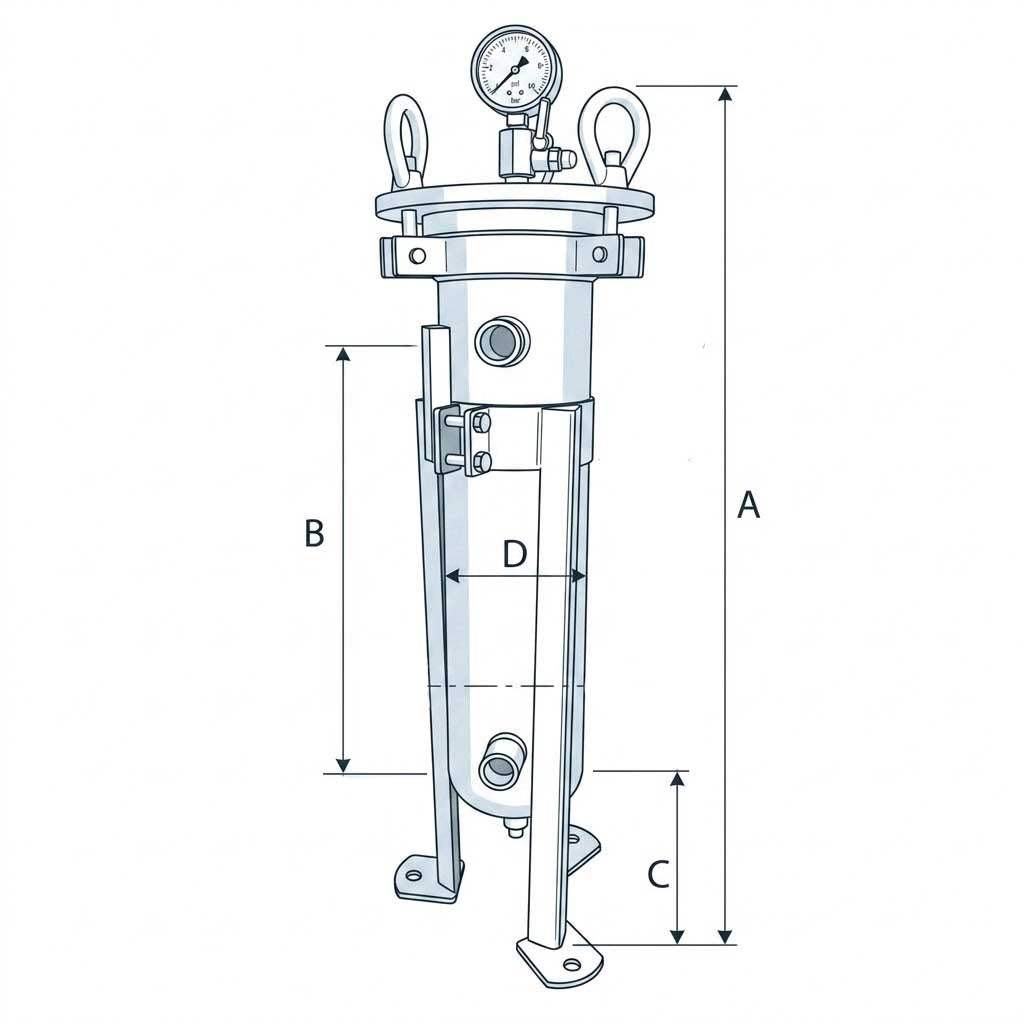

Dimensions (mm) | A min 730, B 355, C min 190, C max 440, D 114 |

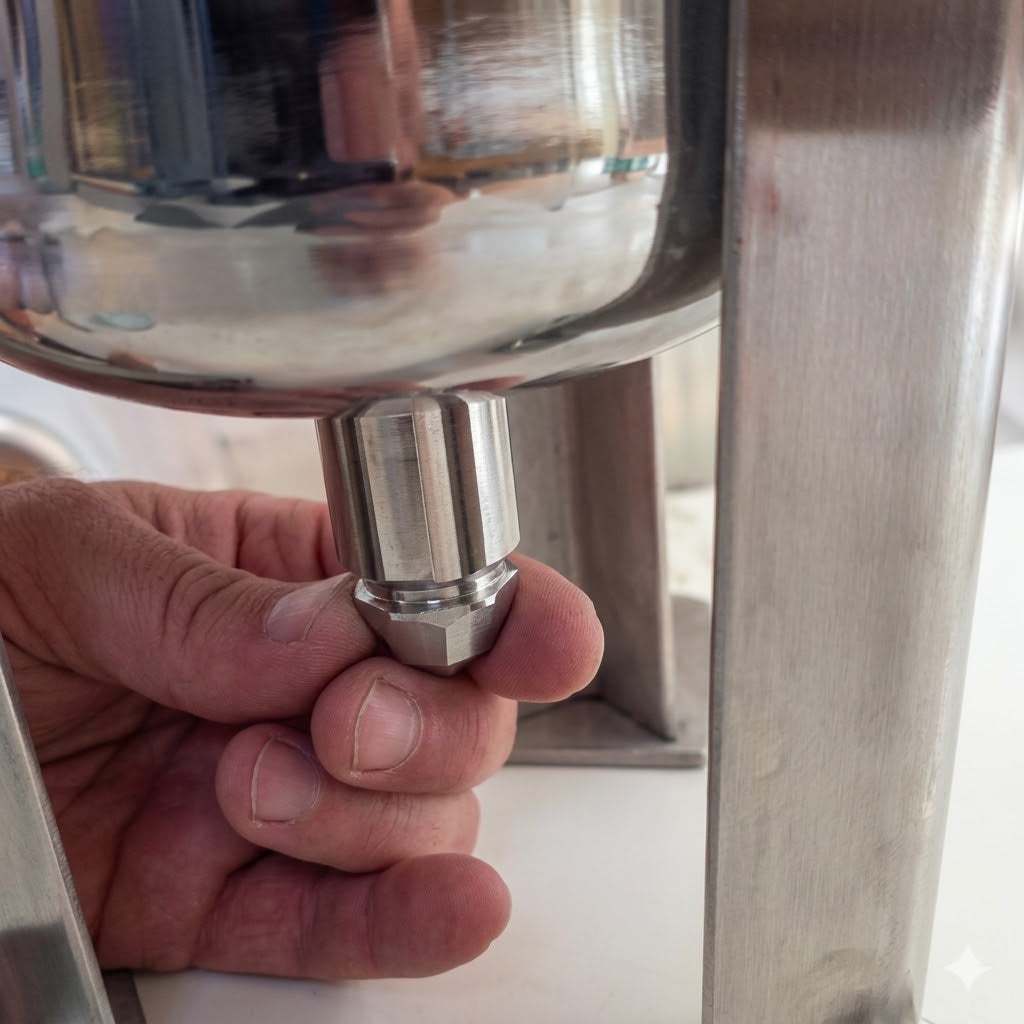

Drain Plug Size | ½” F 15x21 |
Recommended Water Quality | 14°dH Class 3 (or 25°F) |
Advanced Features
-
Pressure Monitoring

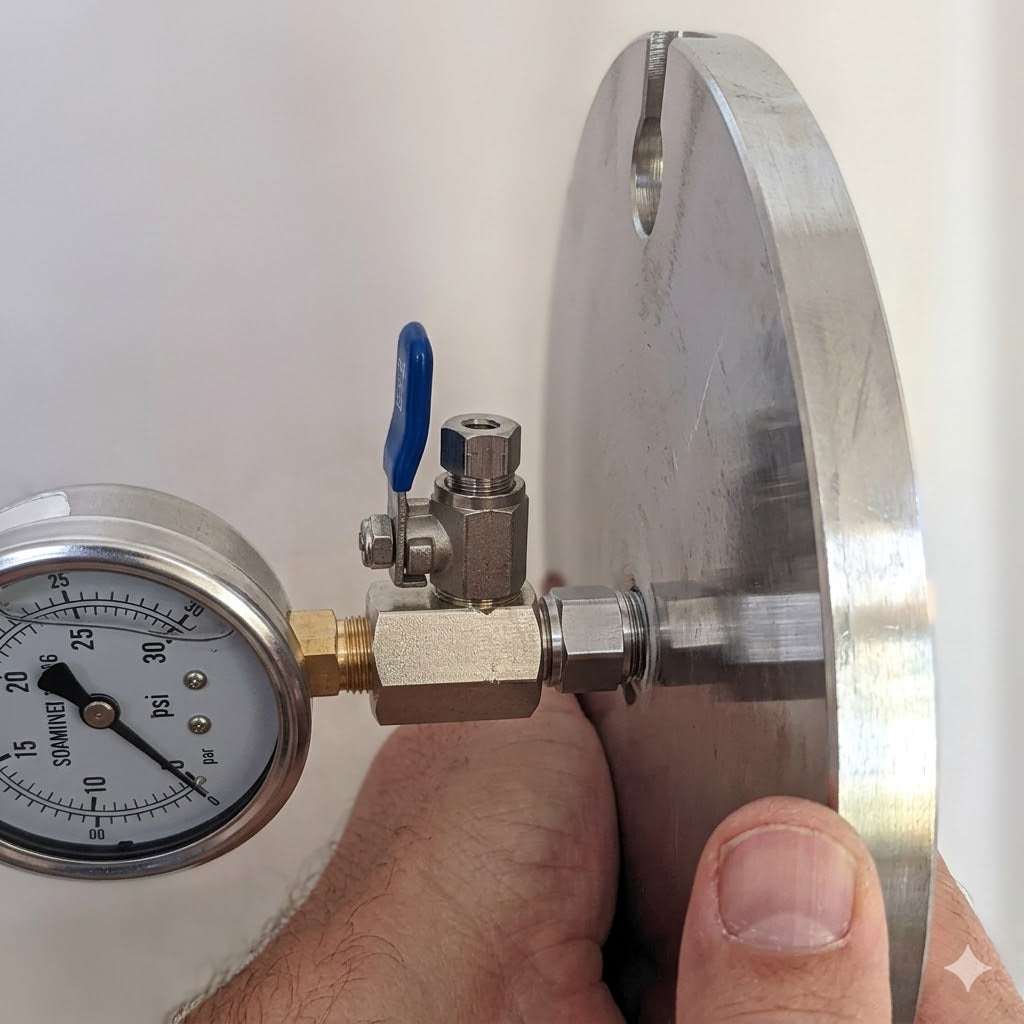

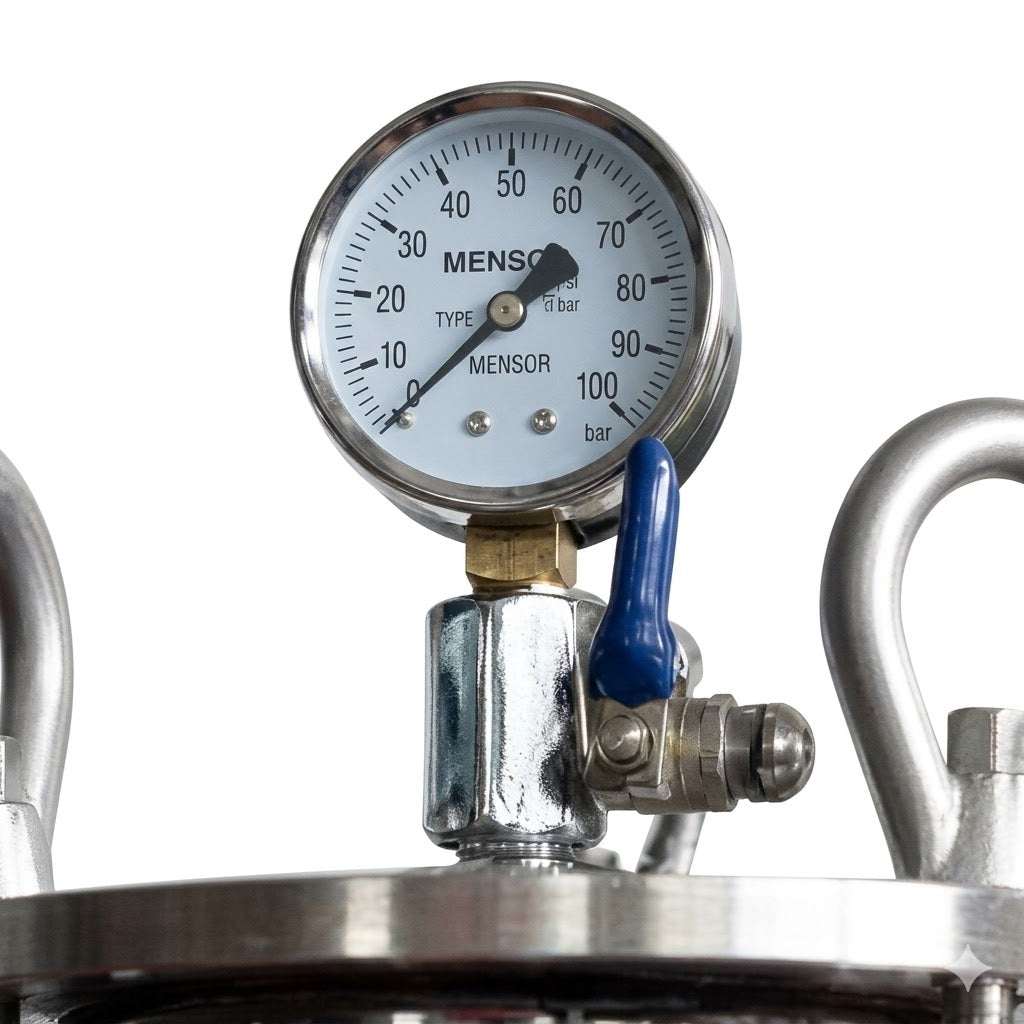

Comes with a glycerin-based pressure gauge (0-10 bars) and brass pipe for accurate performance tracking. -
Valves and Maintenance Tools

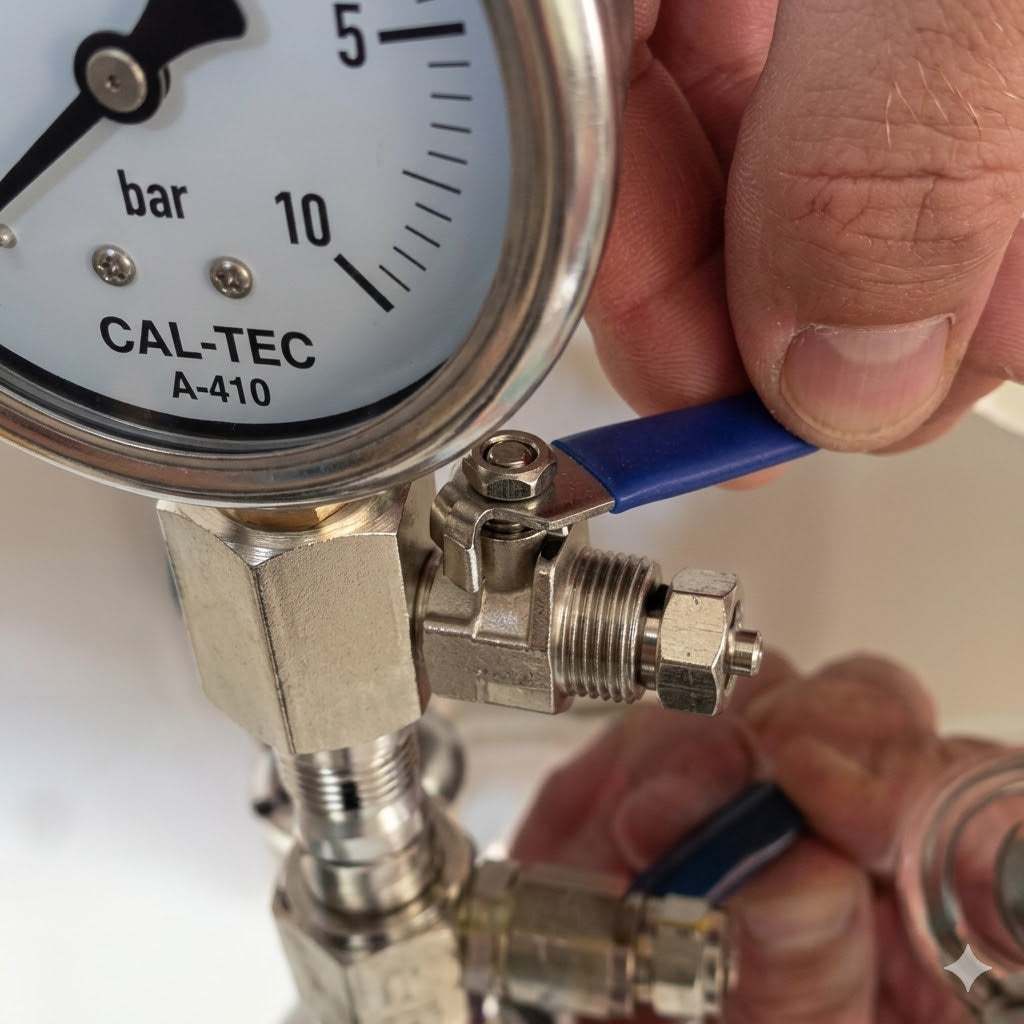

Includes a T-adaptor, ball valve purge, and air bleed/filling valve, ensuring effortless handling and system servicing. -
Variable Differential Pressure (Dp-v)
Automatically adjusts differential pressure setpoints to match flow rate changes, enhancing system adaptability. -
Three Fixed Speed Stages
Provides selectable Min/Med/Max speed options for flexible system control.
Benefits of the GreenLife Magnetic Bag Filter DN20
-
Prevents Corrosion and Deposits

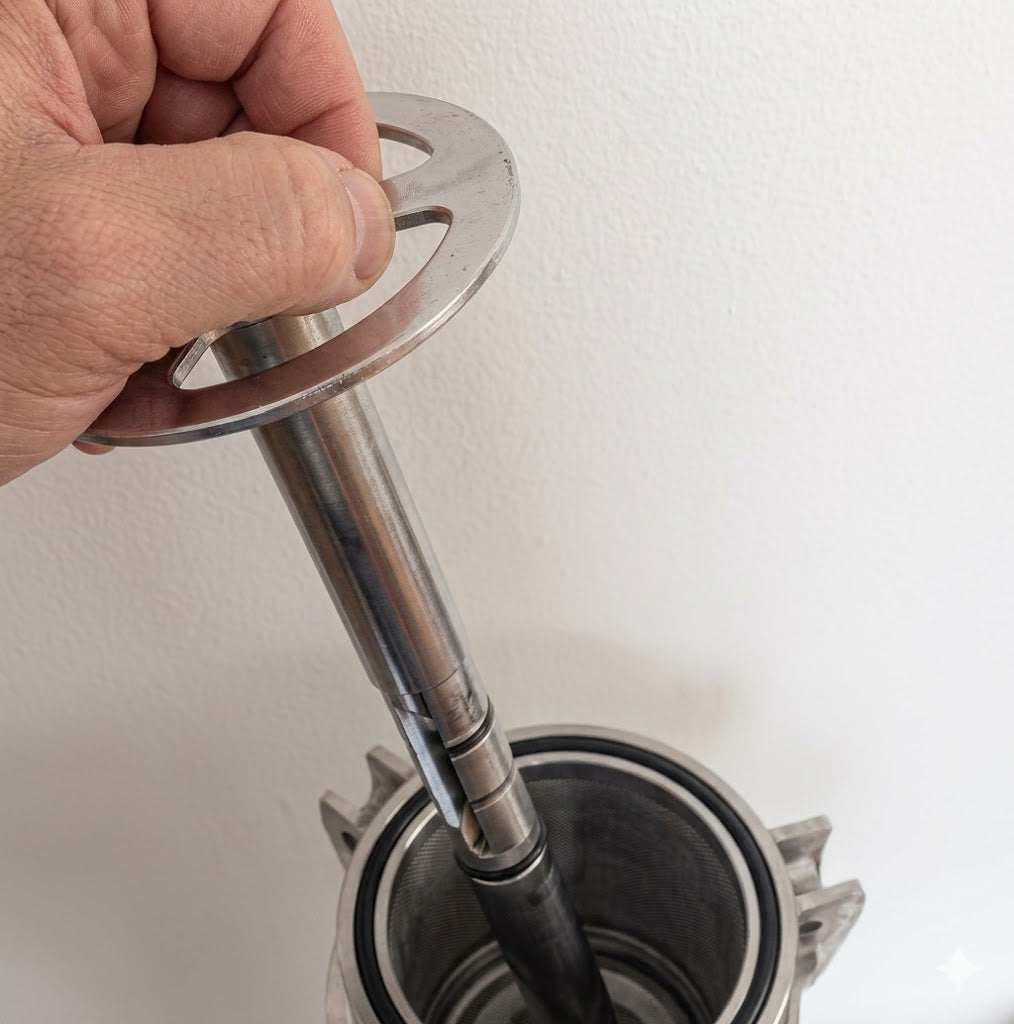

Magnetic bars remove ferrous particles, safeguarding pumps and heat exchangers from damage. -
Improves Energy Efficiency
Keeps water flowing efficiently, reducing pressure drops and energy consumption. -
Prolongs Equipment Lifespan
Protects critical components from wear and tear caused by metallic contamination. -
Easy to Use and Maintain
Fully dismountable design facilitates effortless cleaning and filter bag replacement.
Applications
The GreenLife Magnetic Bag Filter DN20 is ideal for:
- Small heating systems
- Cooling circuits
- Ice water circuits
Why Choose the GreenLife Magnetic Bag Filter DN20?
Compact yet powerful, the GreenLife Magnetic Bag Filter DN20 delivers unmatched filtration performance for smaller systems. Its advanced combination of magnetic and particulate filtration, along with easy installation features, makes it the perfect choice for efficient and reliable water treatment. Protect your system today with the GreenLife Magnetic Bag Filter DN20!
