SPECTRUM Aqualyze Standard Plastic Filter Housing Large Diameter 1" BSP
SPECTRUM Aqualyze Standard Plastic Filter Housing Large Diameter 1&...
SPECTRUM Aqualyze Large Diameter Filter Housing
The SPECTRUM Aqualyze Standard Plastic Filter Housing Large Diameter is designed to deliver superior performance for high-flow filtration applications. With a flow capacity of up to 90 lpm, this housing provides a cost-effective alternative to multi-round stainless steel systems while maintaining robust reliability. Engineered with 1" BSP ports and a convenient pressure release button, installation and maintenance are quick and hassle-free.
Choose the SPECTRUM Aqualyze LD Housing for a perfect blend of innovation, value, and functionality.
Features & Benefits
- Enhanced Flow Rate: The highest flow rate in the Standard Plastic Housing range (up to 90 lpm).
- User-Friendly: Equipped with pressure release buttons for effortless maintenance.

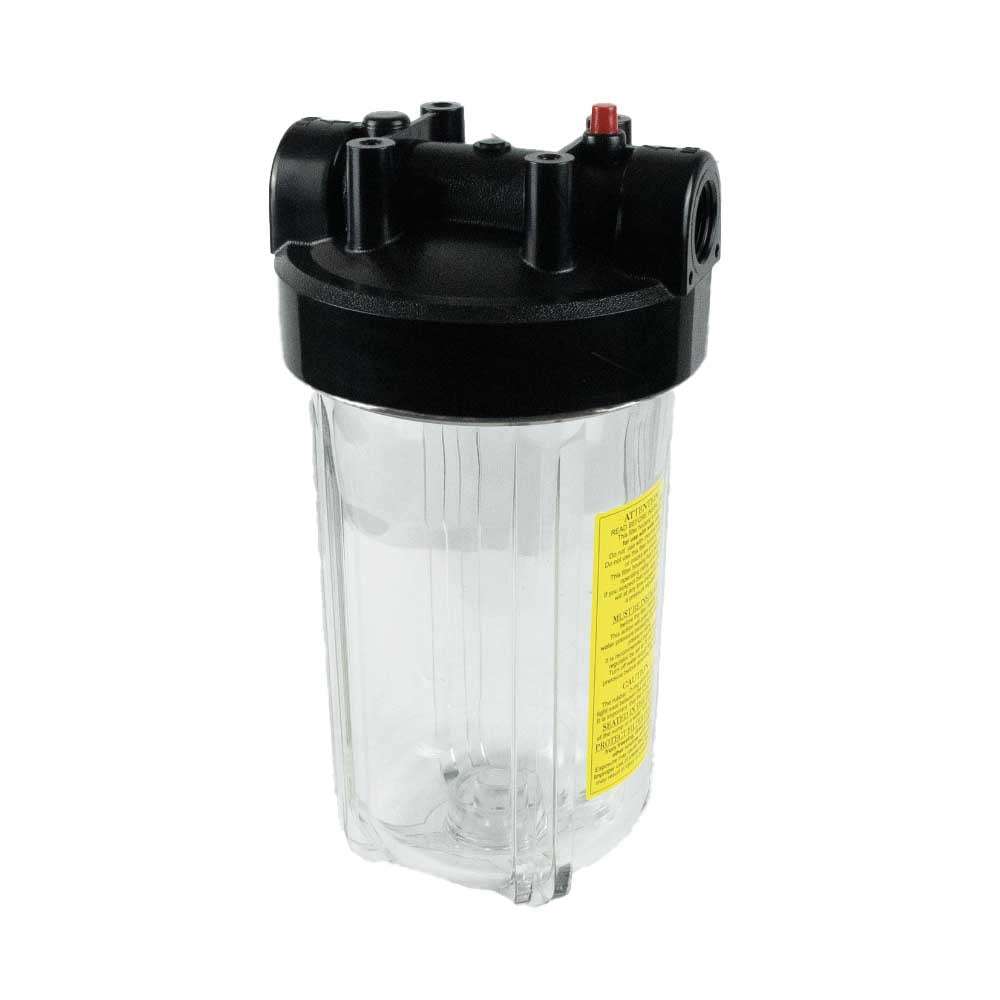

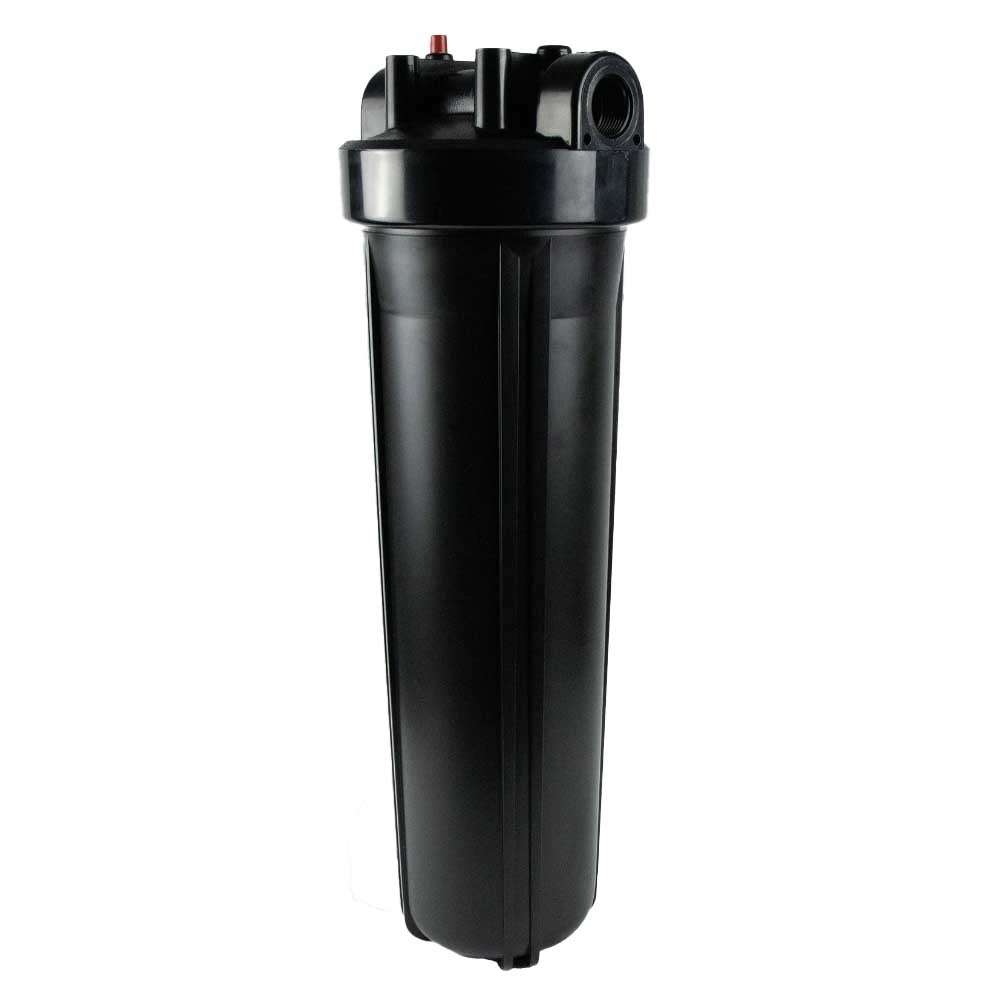

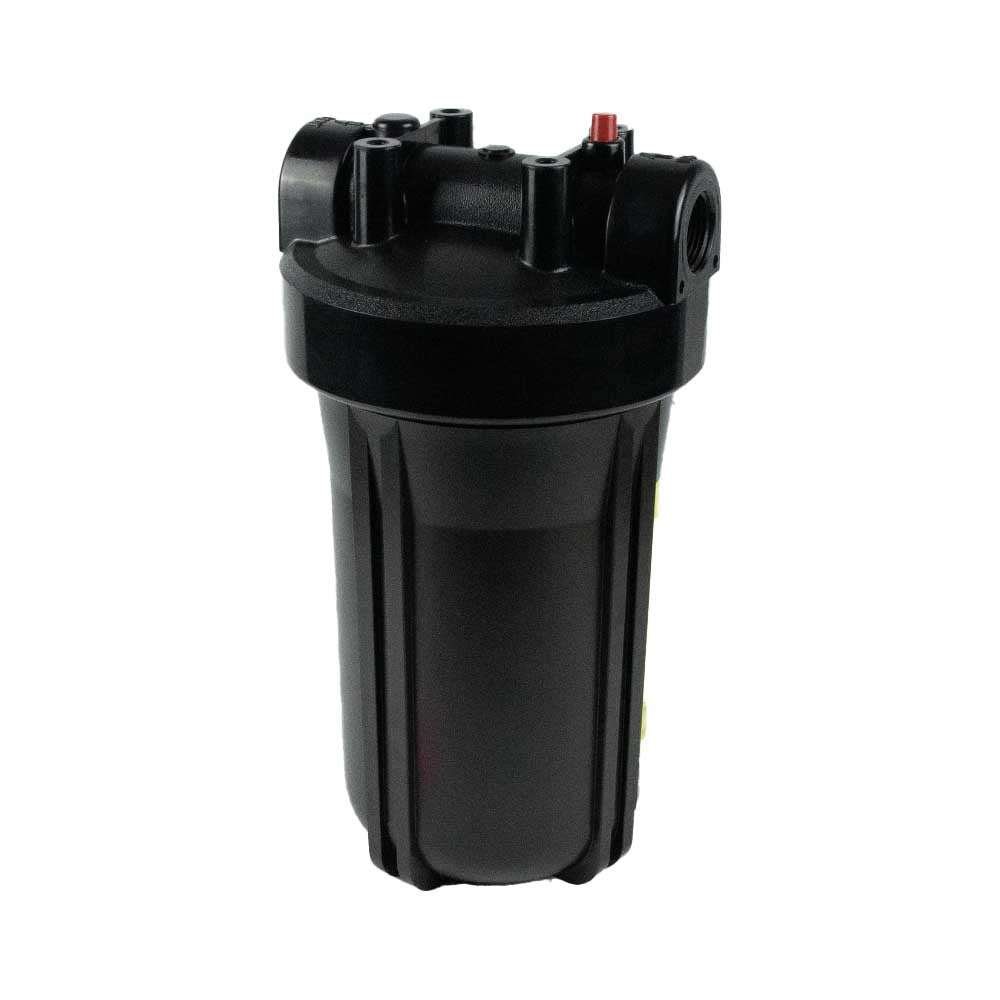

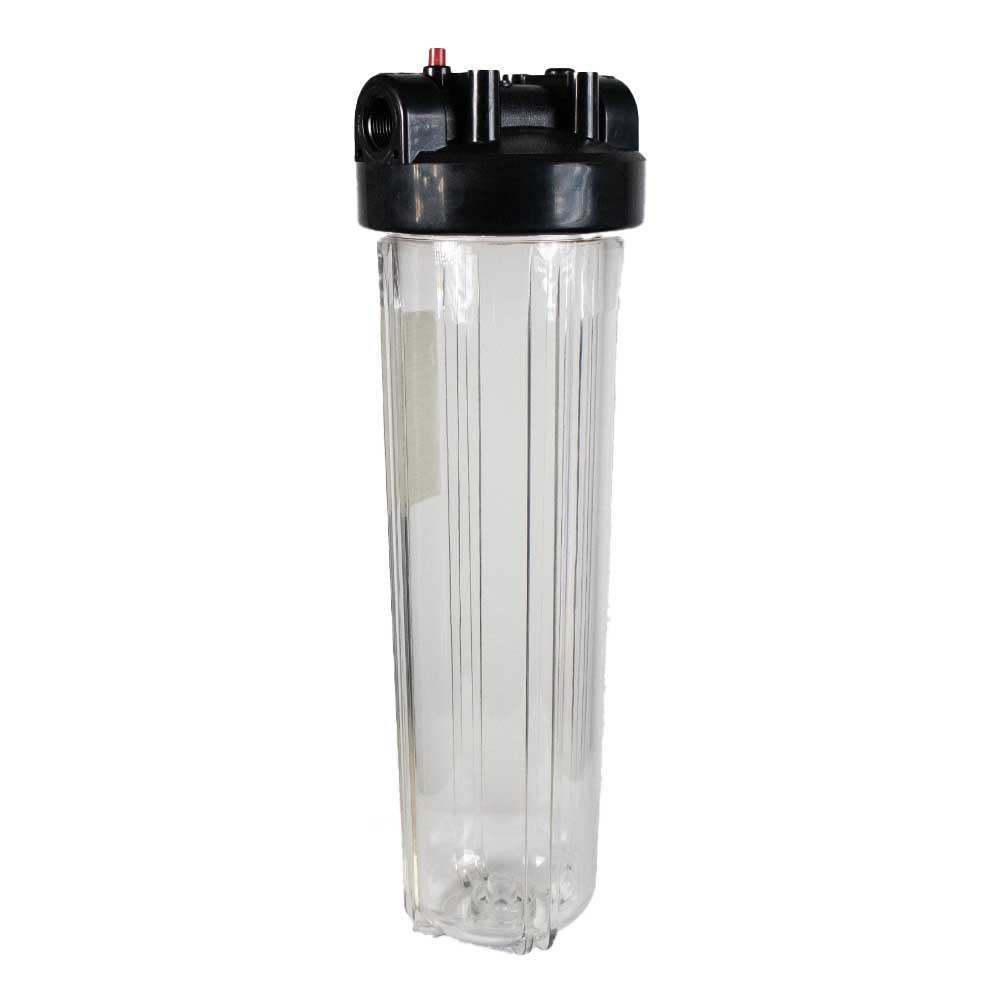

- Optimal Sizing Options: Available in 10” and 20” configurations with clear or black sump choices.
- Sturdy 1” Ports: Designed for high-demand filtration setups.
- Superior Value: An affordable alternative to stainless steel housings without compromising performance.
Materials of Construction
Built for durability, the SPECTRUM Aqualyze LD Filter Housing utilizes premium materials to ensure long-lasting use:
| Component | Material |
|---|---|
| O-ring | EPDM |
| Head | ABS |
| Pressure Release Valve (PRV) | Polypropylene |
| Spring | 304 Stainless Steel |
| Sump (Black) | Polypropylene (PK) |
| Sump (Clear) | Polycarbonate (SC) |
These high-grade materials provide corrosion resistance and support rigorous operational demands, making them ideal for commercial and residential applications.
Technical Specifications
- Port Size: 1” BSP for maximum throughput.
- Cartridge Compatibility: Fits 10" and 20" filters, compatible with DOE and AA end caps.
- Pressure Rating: Handles up to 6.9 bar for high-performance filtration.
- Temperature Range: Operates efficiently between 4°C and 42°C.
Dimensions
| Housing Model | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| SFH-PK-10” LD | 188 | 188 | 343 |
| SFH-SC-10” LD | 186 | 188 | 345 |
| SFH-PK-20” LD | 188 | 186 | 593 |
| SFH-SC-20” LD | 186 | 186 | 597 |
Compact yet sturdy, these housings are easy to install and save valuable space.
Why SPECTRUM Aqualyze LD Is a Top Choice
-
High-Flow Capability
Achieve exceptional water filtration for demanding environments, thanks to its high-capacity design. -
Flexible Application
Available in a range of sizes and sump options to meet varied filtration needs. -
Easy Maintenance
Features like pressure release buttons and wide port compatibility simplify operation and upkeep. -
Affordable Excellence
Teams premium materials and features with a competitive price point, bringing innovation within reach.
Accessories
Pair your housing with essential accessories to enhance operation and reliability.
| Accessory | Code |
|---|---|
| Spanner | EFH-SWLD |
| Single Bracket | EFH-BK-1LD |
| Double Bracket | EFH-BK-2LD |
| Triple Bracket | EFH-BK-3LD |
Transform Your Filtration System
Upgrade your water filtration system with the SPECTRUM Aqualyze Large Diameter Filter Housing. Engineered for unparalleled flow and reliability, it is the ideal solution for demanding applications.
Invest in long-term value and performance today!
