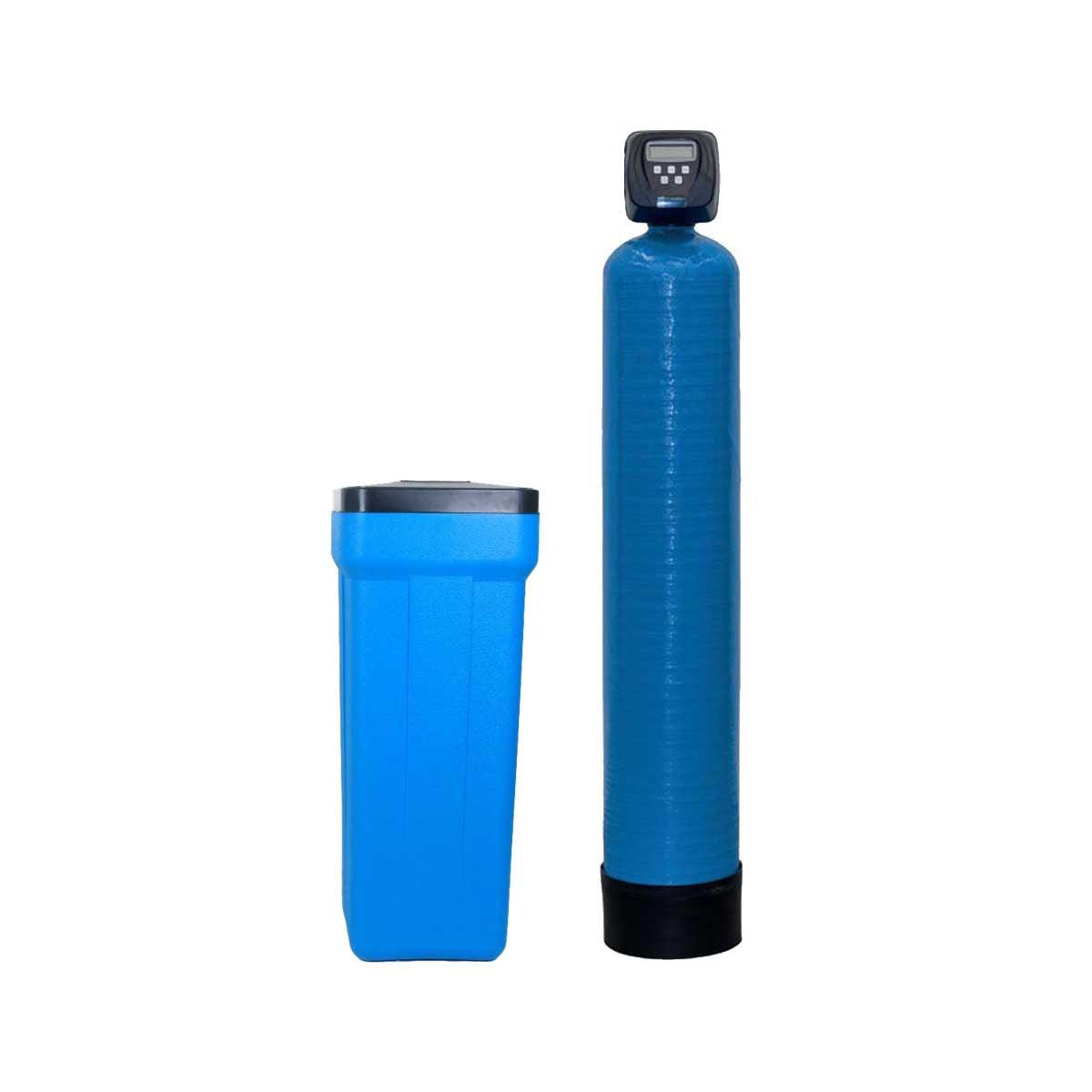

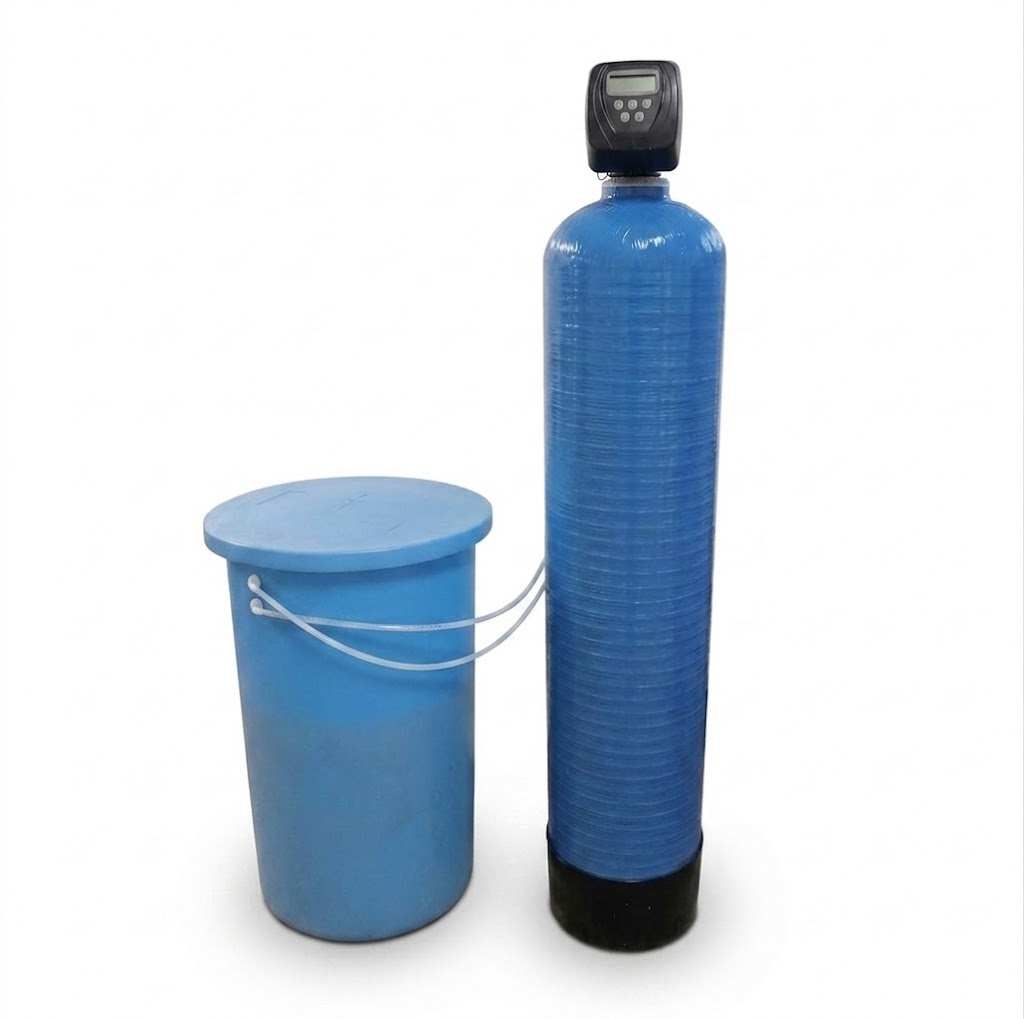

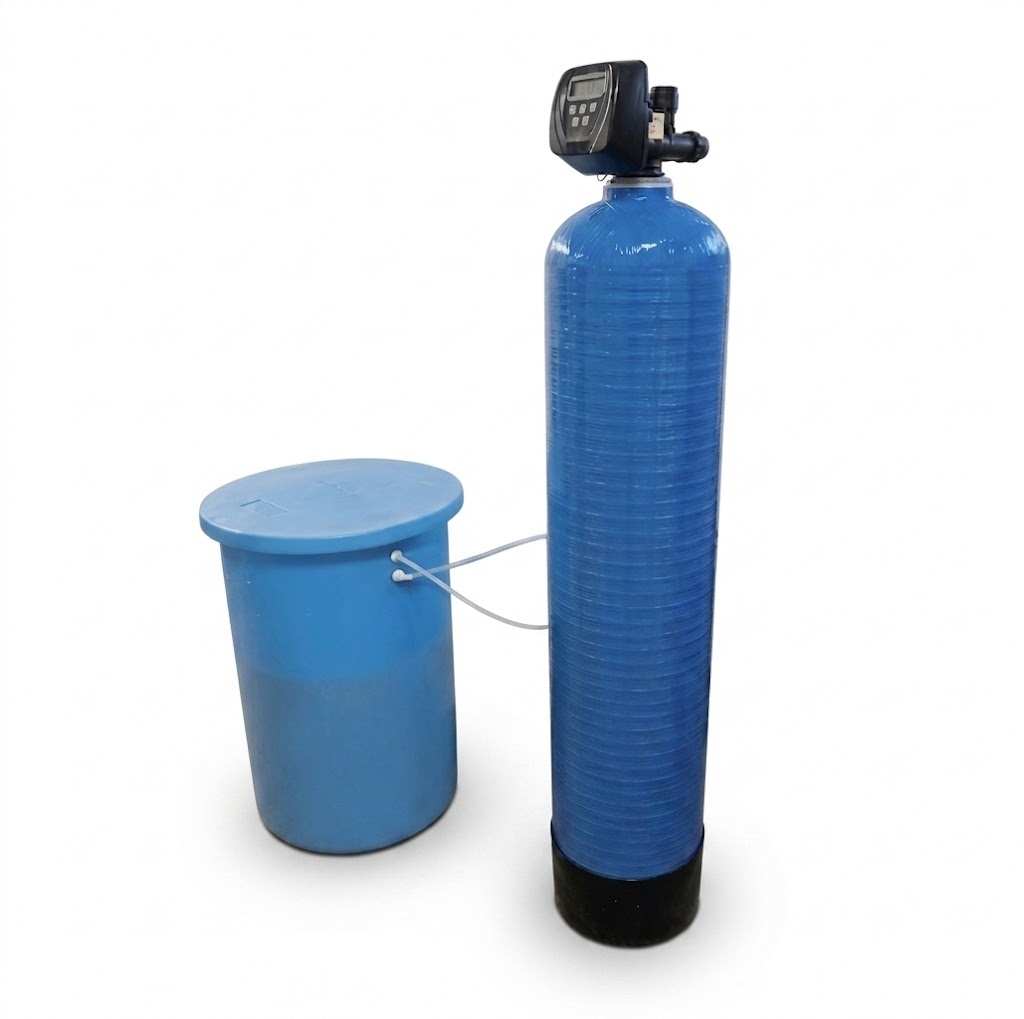

Simplex Water Softener with Clack WS1 CI Digital Meter Controller 1" (0.8 - 6.8 m³/hr)
The Simplex Water Softener with Clack WS1 CI Digital Meter Controller is the ultimate solution for commercial and industrial water-softening needs. Engineered to deliver reliable performance, this system enhances water quality while ensuring cost-efficiency and low maintenance.
Key Features
-
Clack WS1 CI Digital Meter Controller
Advanced controller offering accurate and reliable functionality with customizable regeneration options.
-
Wide Flow Rate Range
Supports flow rates between 0.8 and 6.8 m³/hour, making it versatile for various operations.
-
Ion Exchange Technology
Effectively removes calcium and magnesium, reducing scale build-up and improving water quality.
-
Flexible Regeneration Settings
Options include delayed (default at 2:00 AM), immediate, time-volume-based, days-override, or manual regeneration.
-
Compact Design
Available in multiple sizes with a space-efficient footprint to meet diverse spatial requirements.
Benefits
-
Protect Equipment & Infrastructure
Prevent limescale damage to pipes, boilers, and appliances, prolonging their lifespan.
-
Cost Savings
Reduced salt, water, and energy usage ensures operating costs remain low.
-
Consistent Water Softening
Keeps your systems running efficiently with reliable, softened water output.
-
Easy Maintenance
User-friendly setup and minimal upkeep simplify day-to-day operations.
Specifications
General Dimensions

Model |
Resin Volume (L) |
H1 (mm) |
H2 (mm) |
H3 (mm) |
D1 (mm) |
D2 (mm) |
Mass (Kg) |
817 |
10 |
619 |
485 |
450 |
215 |
320 |
26 |
735 |
14 |
1078 |
944 |
450 |
190 |
320 |
28 |
835 |
20 |
1078 |
944 |
450 |
215 |
320 |
39 |
935 |
25 |
1092 |
958 |
450 |
233 |
320 |
40 |
1035 |
30 |
1078 |
944 |
950 |
268 |
365x430 |
53 |
1044 |
40 |
1305 |
1171 |
950 |
268 |
365x430 |
67 |
1054 |
50 |
1565 |
1431 |
950 |
267 |
365x430 |
80 |
1248 |
60 |
1417 |
1283 |
830 |
315 |
670 |
90 |
1252 |
60 |
1525 |
1391 |
830 |
315 |
670 |
90 |
1354 |
75 |
1571 |
1437 |
980 |
349 |
760 |
115 |
1465 |
100 |
1870 |
1736 |
920 |
370 |
880 |
158 |
1665 |
150 |
1862 |
1713 |
1150 |
406 |
880 |
216 |
Flow Rates
Resin Volume (L) |
Nominal Flow Rate (m³/h) |
Minimum Flow (L/h) |
10 |
0.4 |
60 |
20 |
0.8 |
60 |
25 |
1.0 |
60 |
30 |
1.2 |
60 |
40 |
1.6 |
60 |
50 |
2.0 |
60 |
60 |
2.4 |
60 |
75 |
3.0 |
60 |
100 |
4.0 |
60 |
125 |
5.0 |
60 |
Salt & Regeneration Data
Resin Volume (L) |
Capacity (Kg CaCO₃) |
Salt Usage (Kg) |
Total Time (Min) |
10 |
0.5 |
1.5 |
65 |
20 |
1.0 |
3.0 |
65 |
25 |
1.25 |
3.75 |
65 |
30 |
1.5 |
4.5 |
79 |
40 |
2.0 |
6.0 |
71 |
50 |
2.5 |
7.5 |
81 |
60 |
3.0 |
9.0 |
73 |
75 |
3.75 |
11.25 |
75 |
100 |
5.0 |
15.0 |
97 |
125 |
6.25 |
18.75 |
97 |
Note: Regeneration options for all sizes include immediate, delayed, days-override, time-volume-based, and manual regeneration.
Water Consumption
Resin Volume (L) |
Total Effluent (L) |
10 |
143 |
20 |
138 |
25 |
201 |
30 |
238 |
40 |
216 |
50 |
224 |
60 |
316 |
75 |
397 |
100 |
472 |
125 |
455 |

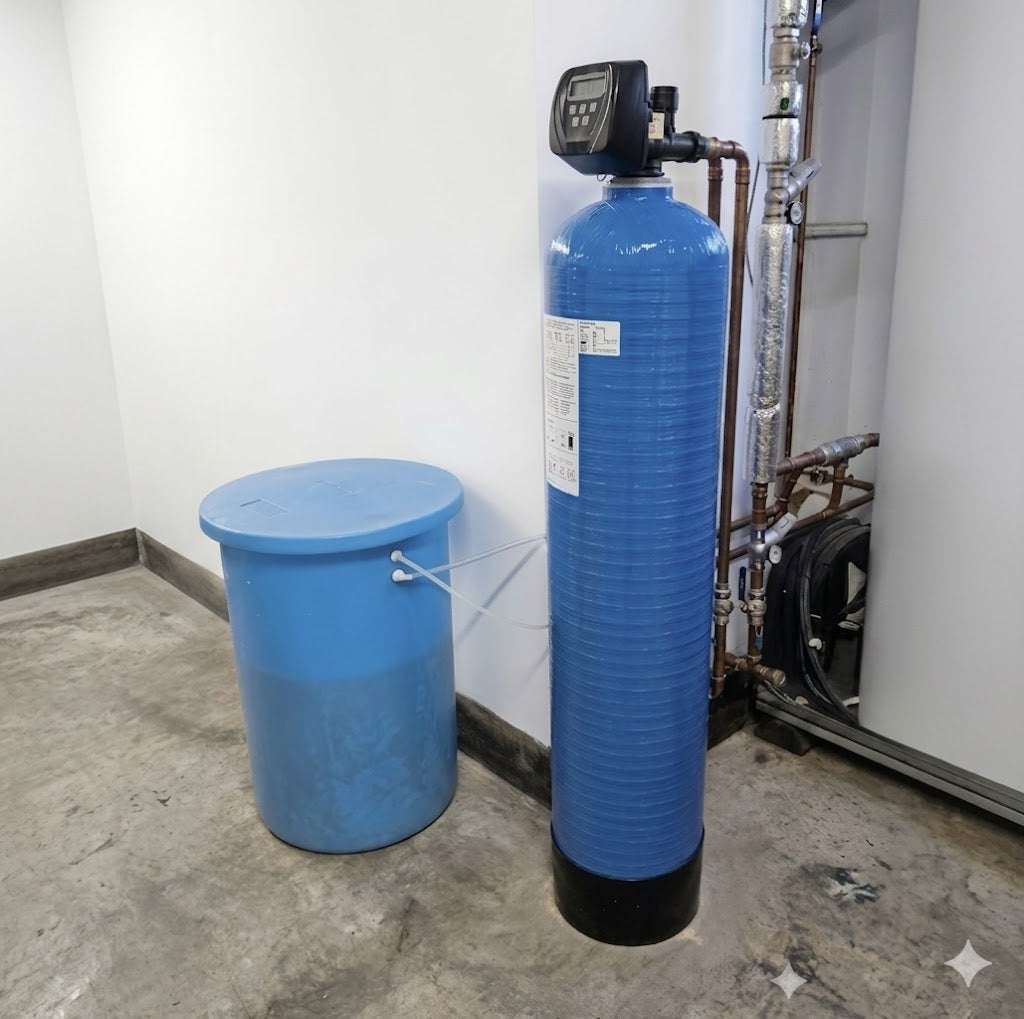

General Conditions for Installation
Connection Requirements
-
Connection IN & OUT: 1"
-
Drain Connection: 3/4" or 1" (Dependent on DLFC flows over 10 gpm)
Electrical Specifications
-
Electrical Rating: 230V 50Hz with 12V Transformer
-
Maximum Power Rating: 6W
-
IP Protection Class: Double isolated transformer
Water & Pressure Parameters
-
Minimum Inlet Pressure: 200 kPa (2 bar)
-
Maximum Inlet Pressure: 600 kPa (6 bar)
-
Vacuum: No allowance
-
Average Pressure Loss: 100 kPa (1 bar) under normal conditions
-
Minimum & Maximum Water Temperature: 5°C to 35°C
Recommendations
- Always install a 25-micron cartridge filter before the softener to ensure optimal performance and system longevity.
Resin Specifications
-
Type: Strong acid cation resin (food-grade quality)
-
Life Span: 15 years under normal circumstances
-
Ion Exchange Efficiency: Optimized for average salt consumption of 150 g/L
Why Choose Simplex Water Softener?
With its customizable settings, durable design, and energy-efficient operation, the Simplex Water Softener is the preferred choice for businesses reliant on superior water quality. Whether you're running a hotel, laundry, or manufacturing plant, this system provides a dependable supply of softened water, improving operational efficiency and reducing costs over time.
Upgrade your water-softening system today with the Simplex Water Softener featuring the Clack WS1 CI Digital Meter Controller!
