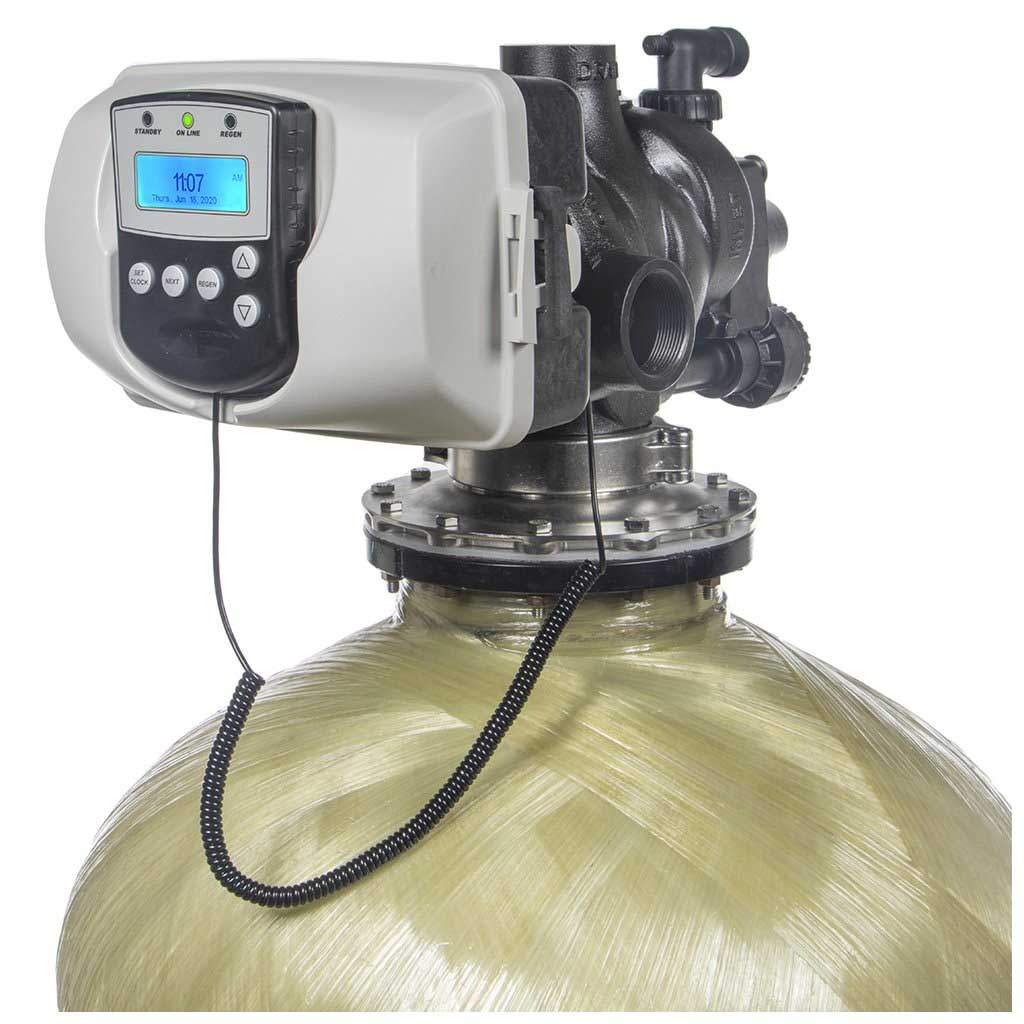

Duplex Water Softener with Clack WS3 Metered Digital Controller

High-Performance Water Softening System

The Duplex Water Softener with Clack WS3 Metered Digital Controller, supplied by GAPS Water Treatment, is designed to efficiently handle high-demand water softening needs in commercial settings. This robust system ensures superior water quality and operational efficiency with its advanced features and reliable construction.

Key Features

• Dual Vessel Design: Features two resin-filled vessels, allowing continuous operation by alternating between duty and standby modes.

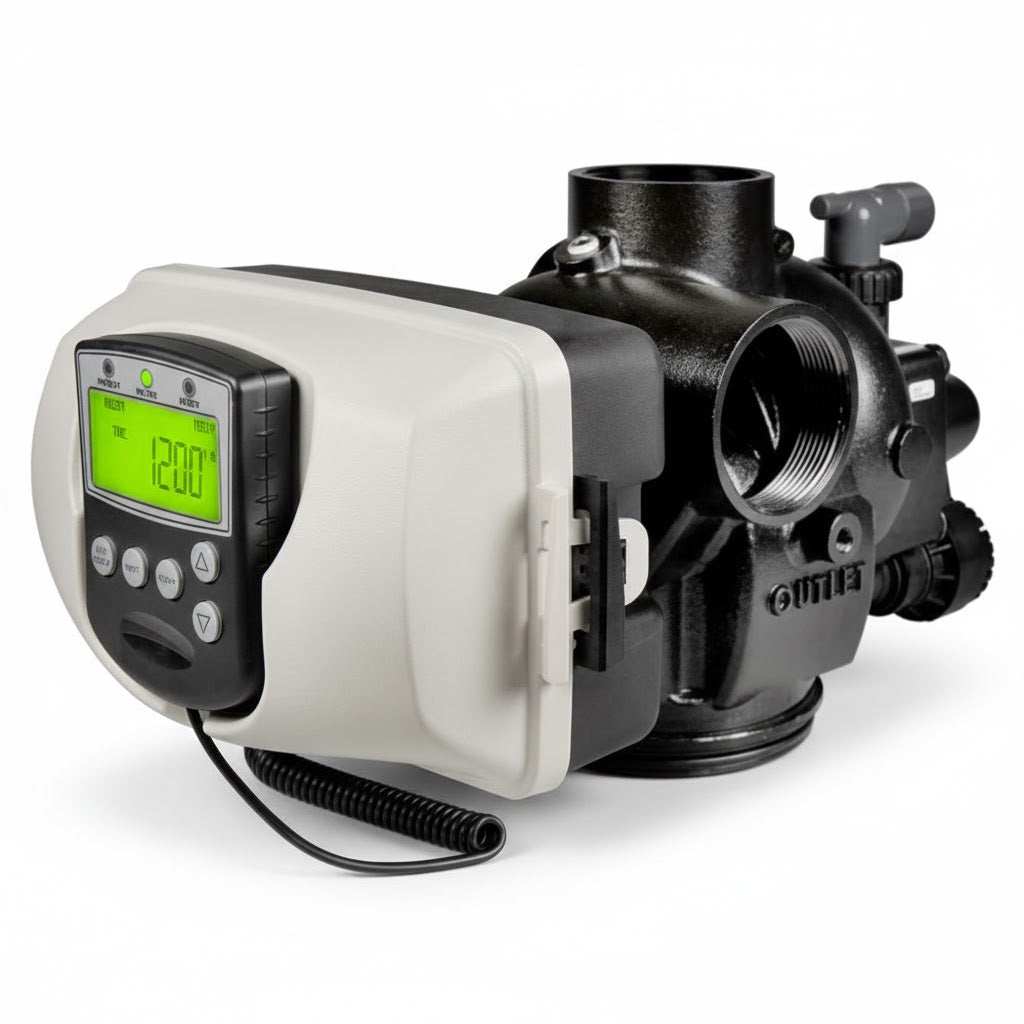

• Metered Digital Control: Equipped with the Clack WS3 controller for precise monitoring and management, ensuring optimal performance.
• High Flow Rate Capacity: Various sizes available capable of handling flow rates from 40.0 to 56.0 m³/hr, making it suitable for large-scale applications.

Benefits

• Improved Water Quality: Effectively reduces hardness, ensuring water is safe and pleasant to use for various applications.
• Durability: Constructed with high-quality materials, including food-grade cation resin and resilient structural vessels, for long-lasting performance.
• Ease of Installation: Supplied partially assembled with comprehensive instructions, simplifying the setup process.

Technical Details

• Connection Sizes: 3" in/out connections with a 3" drain connection.
• Pressure Ratings: Operates efficiently between 2 to 7 bar inlet pressure, with an average pressure loss of 1 bar.
• Recommended Conditions: Optimal water temperature range is 5-43°C. A 25-micron cartridge filter is recommended before installation.

Application

Ideal for commercial water treatment, this system ensures consistent and reliable water softening, enhancing overall water quality and system longevity. Choose the Duplex Water Softener with Clack WS3 to meet your high-capacity water treatment needs effectively.

**sizes may vary dependent on components used and should only be used as a guide.

THIS KIT MUST BE PARTIALLY ASSEMBLED AND PROGRAMMED IN OUR WORK SHOP - CONTACT US FOR LEAD TIME

General conditions for installation

Connection IN & OUT: 3"
Drain connection(*): 3"
Electrical rating: 230V 50Hz 12V Transformer
Max power rating: 24 W
Minimum inlet pressure: 200 kPa (2 bar)
Maximum inlet pressure: 700 kPa (7 bar)
Vacuum: no allowance
Average pressure loss (**): 100 kPa (1 bar)
Min-max water temperature: 5-43°C

It is always recommended to install a 25 micron cartridge filter before a softener.

Resin

Type: Strong acid cation resin - softening ,food grade quality
Life span: 15 years under normal circumstances

Ion exchange ( for average salt consumption of 150 g/L )





Flow Rate



The interval between regenerations should not be more than 4 days, to prevent bacteria growth. There is the option to set a day override regeneration.
