Duplex Water Softener with Clack WS1.5 CI Metered Digital Controller 1.5" (5.0 - 13.5 m3/hr)

1.5" in/out connections

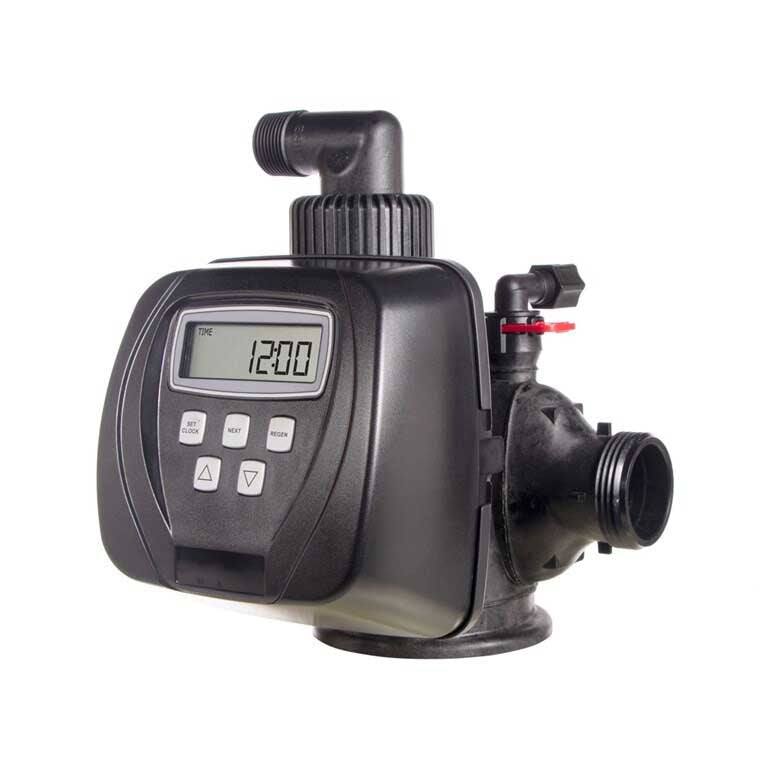

These Simplex water softeners use high quality vessels and superior softening resin. The units are controlled with a Clack WS1.5 PCI multiport valve on top of the vessel allowing automatic regeneration.
Systems can regenerate after a given time (time) or quantity of water (metered).

Systems range in size from 500 litres per hour to 50,000 litres per hour.

All systems come with vessel, valve, resin, brine tank and all fittings. In commercial softeners the brine tank sits next to the resin filled resin rather than the vessel sitting inside the brine tank. The very reliable multiport valve can record system information such as average and maximum flow rates.

Timed controlled models regenerate automatically every 2 or 3 days. Meter controlled versions monitor the amount of water used to regenerate when it needs to.
This softener is supplied partially assembled for shipping. Some assembly will be required.





* Estimated weight of the system without water or salt.
** Sizes may vary dependent on components used and should only be used as a guide.

THIS KIT MUST BE PARTIALLY ASSEMBLED AND PROGRAMMED IN OUR WORK SHOP - CONTACT US FOR LEAD TIMEGeneral conditions for installation

Connection IN & OUT: 1.5"
Drain connection(*): 3/4", 1" or 1.25" dependent on flow
Electrical rating: 230V 50Hz 12V Transformer
Max power rating: 6W
IP protection class: Double isolated transformer
Minimum inlet pressure: 200 kPa (2 bar)
Maximum inlet pressure: 600 kPa (6 bar)
Vacuum: no allowance
Average pressure loss (**): 100 kPa (1 bar)
Min-max water temperature: 5-35°C

Remarks
(*) Dependent on Drain line flow control.
(**) Under normal circumstances.
It is always recommended to install a 25 micron cartridge filter before a softener.

Resin

Type: Strong acid cation resin - softening ,food grade quality
Life span: 15 years under normal circumstances

Ion exchange ( for average salt consumption of 150 g/L )




Regeneration

Start: Default Time 2:00 am, set on the timer as ( delayed regeneration )
Options: TIME - VOLUME - IMMEDIATE - DELAYED - DAYS OVERRIDE and manual regeneration.


Remarks
The interval between regenerations should not be more than 14 days, to prevent bacteria growth.

Flow Rate



Consumption of Rinse Water
