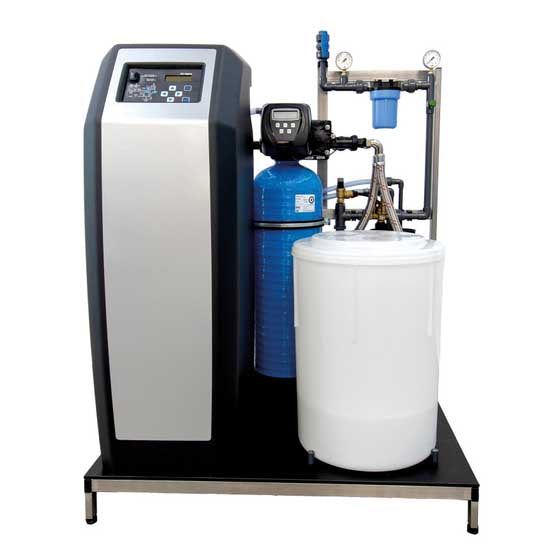

Herco UO-D 300 C 300 lph Reverse Osmosis System with Simplex Softener 420 212

Product Description

The reverse osmosis unit with designer cover is used for the desalination of softened water with a salinity of up to 1,000 mg/l. It is equipped with a compact rotary vane pump. The RO digital microprocessor controller enables fully automatic operation with logging of all relevant operating data and freely adjustable limit values. The unit can be connected to the central control system via an optional Profinet interface.

Benefits

• Available from stock
• Beautifully designed cover
• Versatile RO digital controller with logging of operation data and many parametrization options

Applications

• Desalination of softened water
• Suitable for all commercial and industrial applications
• Ideal for medical practices or other public locations with visitors

Controller : RO digital
Desalination rate min.: 97 %
Permeate recovery: 75 – 80 %
Permeate back pressure max.: 0.3 bar
pH value operation: 3.6 – 9.5
pH value cleaning: 2 – 12
Ambient temperature: 5 – 40 °C

Conditions of use: The unit may only be used for the desalination of softened feed water of drinking water quality or appropriately pre-treated well or surface water. The unit is designed for a salinity (TDS) of 1,000 mg/l and a temperature of 15 °C. Under these conditions, the projected permeate output is achieved even after three years of operation. The permeate yield depends on the raw water quality and the pre-treatment. The following parameters must be maintained in the feed water:

Free chlorine: not detectable
Iron (Fe): < 0.2 mg/l
Manganese (Mn): < 0.05 mg/l
Silica (SiO2): < 25 mg/l
Silt density index (SDI): < 3
Feed water temperature: 5 – 35 °C
Feed water pressure: 3 – 6 bar
Pressure fluctuation: ± 0.5 bar
