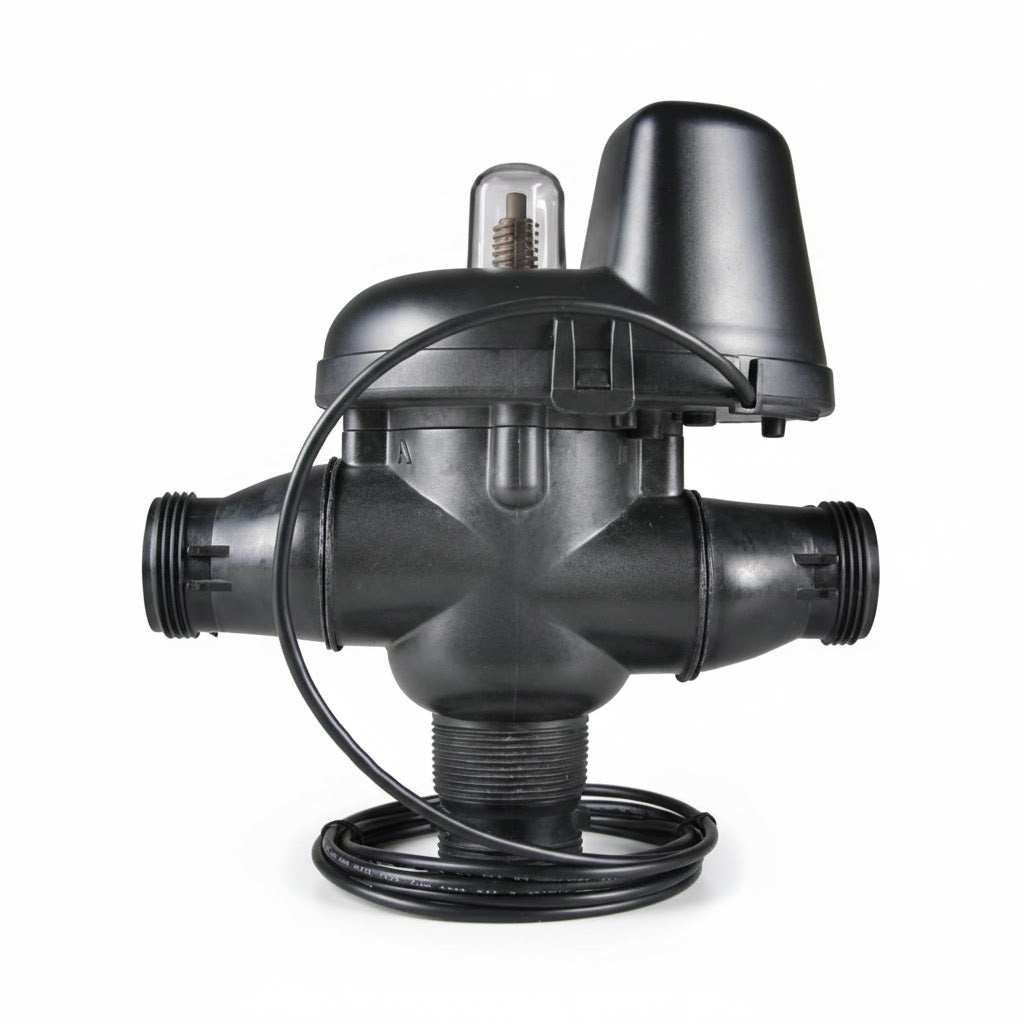

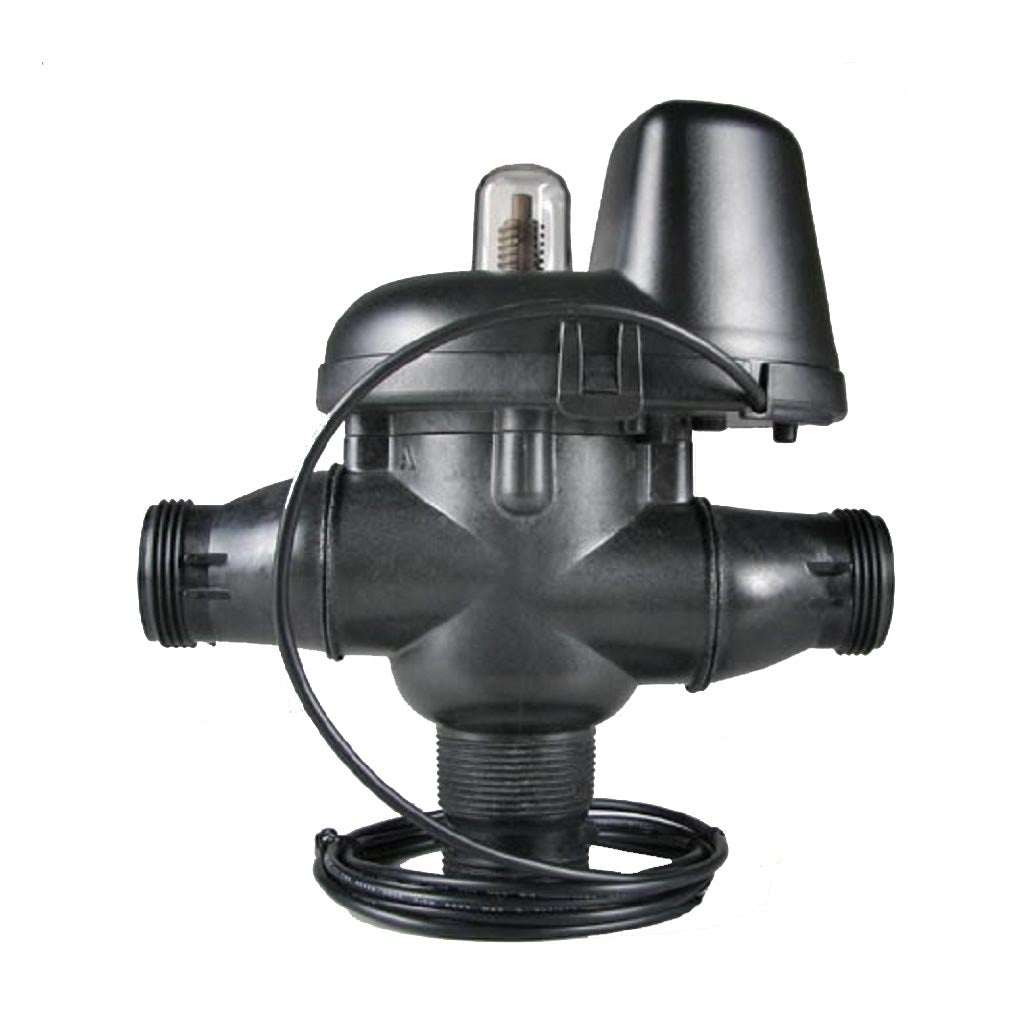

Motorised Alternating Valve (MAV) Fx F (V3069FF-01) WS1 and WS1.25

• Allows for twin alternating system
• Low voltage drive assembly controlled by valve’s circuit board
• Utilizes WS1 and WS1.25 Control Valve Fittings
• Full 1.25” ports for minimal pressure loss
• Provides choices of treated or non-treated water regeneration
• Proven and reliable Clack DC drive assembly
• Can be utilized with a single control valve system to accommodate a clean water source for regeneration
• Flow from Port A to Common has a CV factor of 16.3 (3.4 psi drop at 30 gpm)
• Flow from Port B to Common has a CV factor of 17.4 (3.0 psi drop at 30 gpm)
• Operating Pressures: 20 PSI Minimum 125 PSI Maximum
• Operating Temperatures: 40°F Minimum 110°F Maximum

*Used without vertical adaptors
