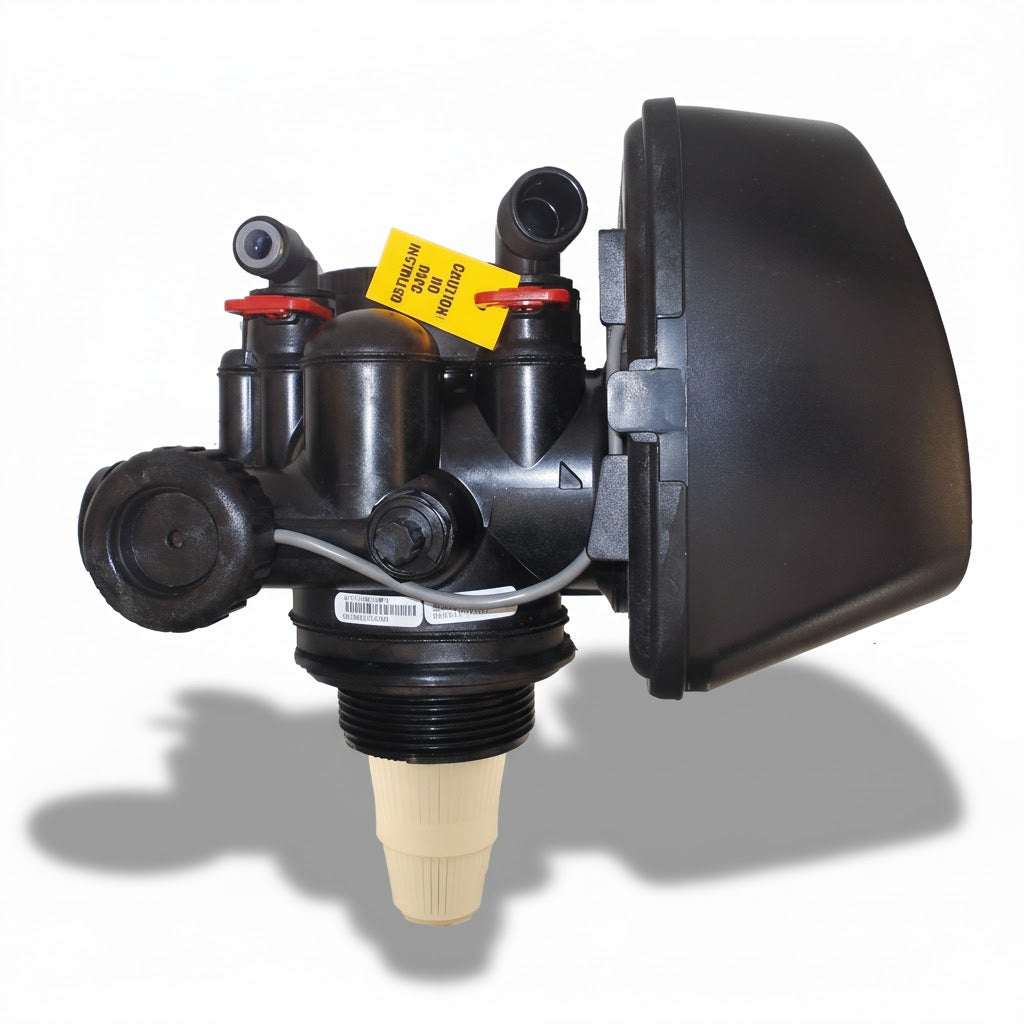

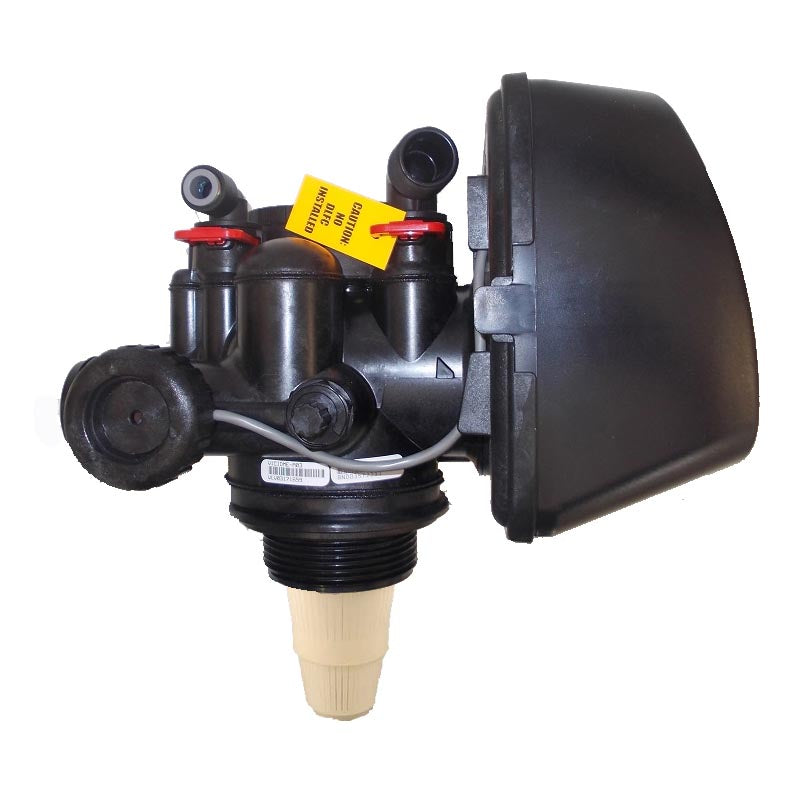

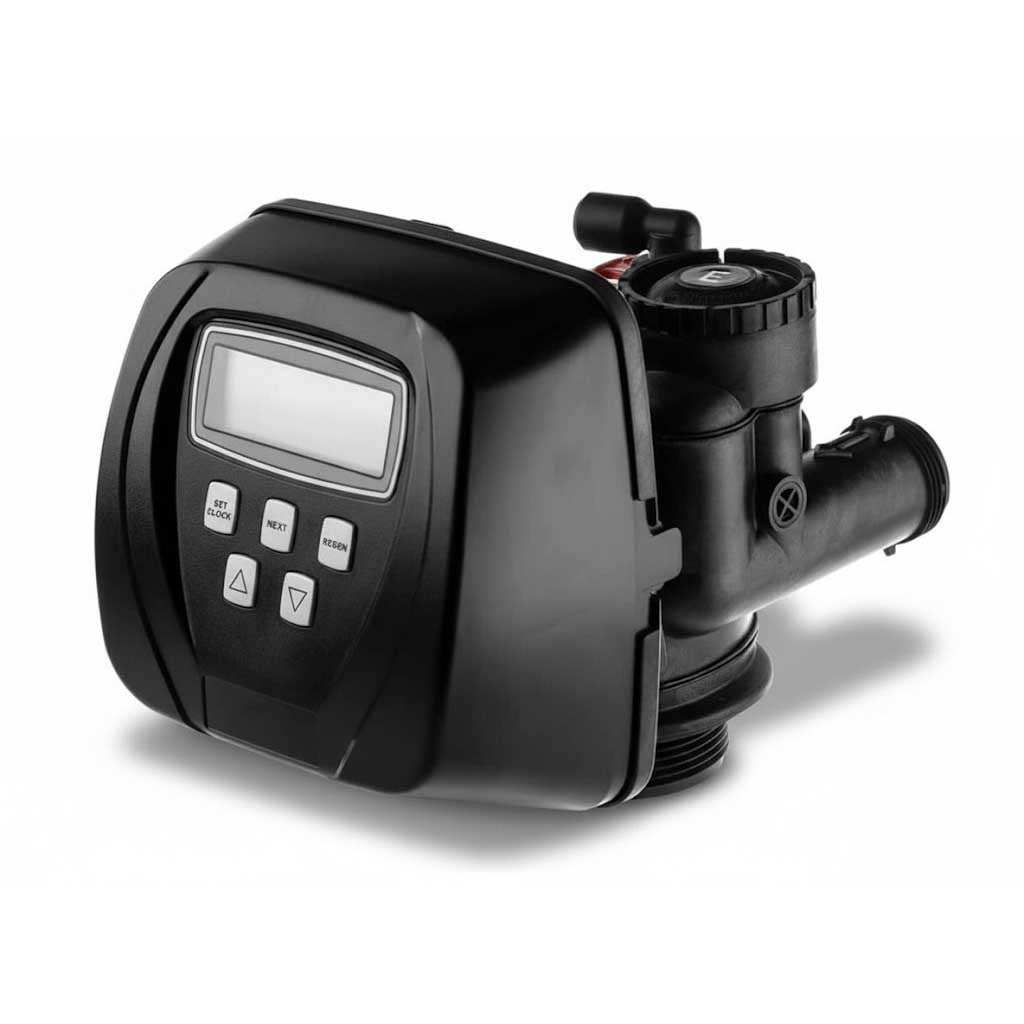

Clack WS1CI Softener Meter Controlled Valve 1" V1CIDEME-05

Product Description

Drain Line Flow Control (DLFC) Not Included

Clack's WS1 Automatic valve is a state of the art control head designed for residential and commercial applications requiring flow rates up to 27 GPM (6.1 M3/hr). It has a backwash ability capable of servicing up to 22" diameter tanks.
The valve acts as a primary center that directs and regulates all cycles of water softening or filtration. It can be set to perform downflow regeneration or simply backwash and rinse.
The valve comes in different program versions and is controlled by a solid state microprocessor with front panel setting and screen display.
The WS1 has 9 injector sizes to choose from for different draw rates (if you tell us how you are using the valve (media and vessel size) we will size this up for you).

Features
•Solid state microprocessor with easy access front panel settings
•Three modes of operation; meter immmediate, meter delayed, or time clock delayed program in ppm, French degrees, German degrees, or cubis meters
•Fully programmable regeneration cycle sequence (maximum 9 )
•Programmable regeneraion cycle times
•Days override feature; 1-28 days available
•Backwash and brining ability to 22" diameter tanks
•Downflow/upflow regeneration
•Stores system configuration and operation data in nonvolatile memory
•Coin Cell Lithium battery back-up with a 24 hour carry over
•12-volt output AC Adapter provides safe and easy installation
•Control valve design provides optimum service and backwash rates
•Treated water regenerant refill
•Mixing valve option available
•Low salt alarm
•24-hour clock
•Reliable and proven DC drive
