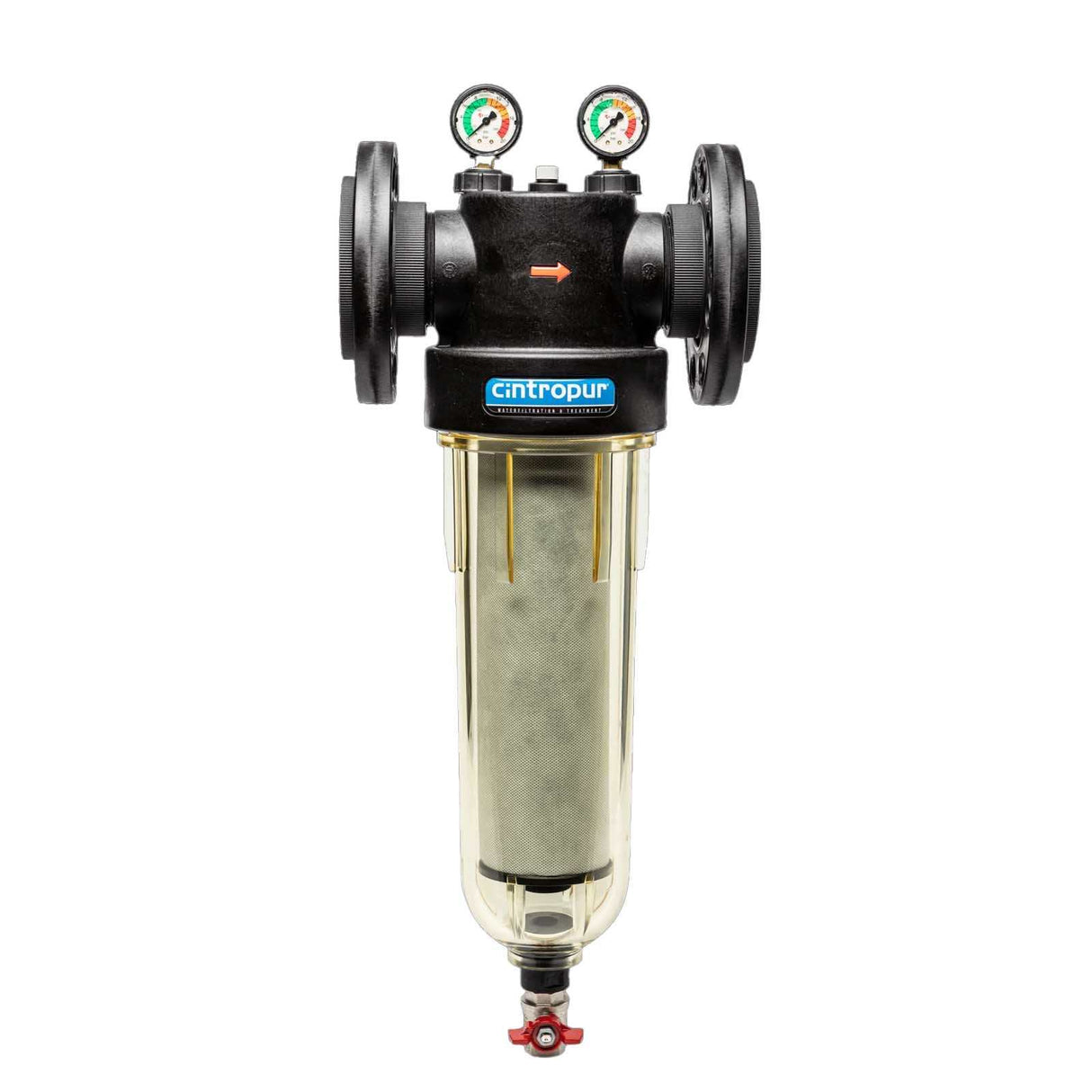

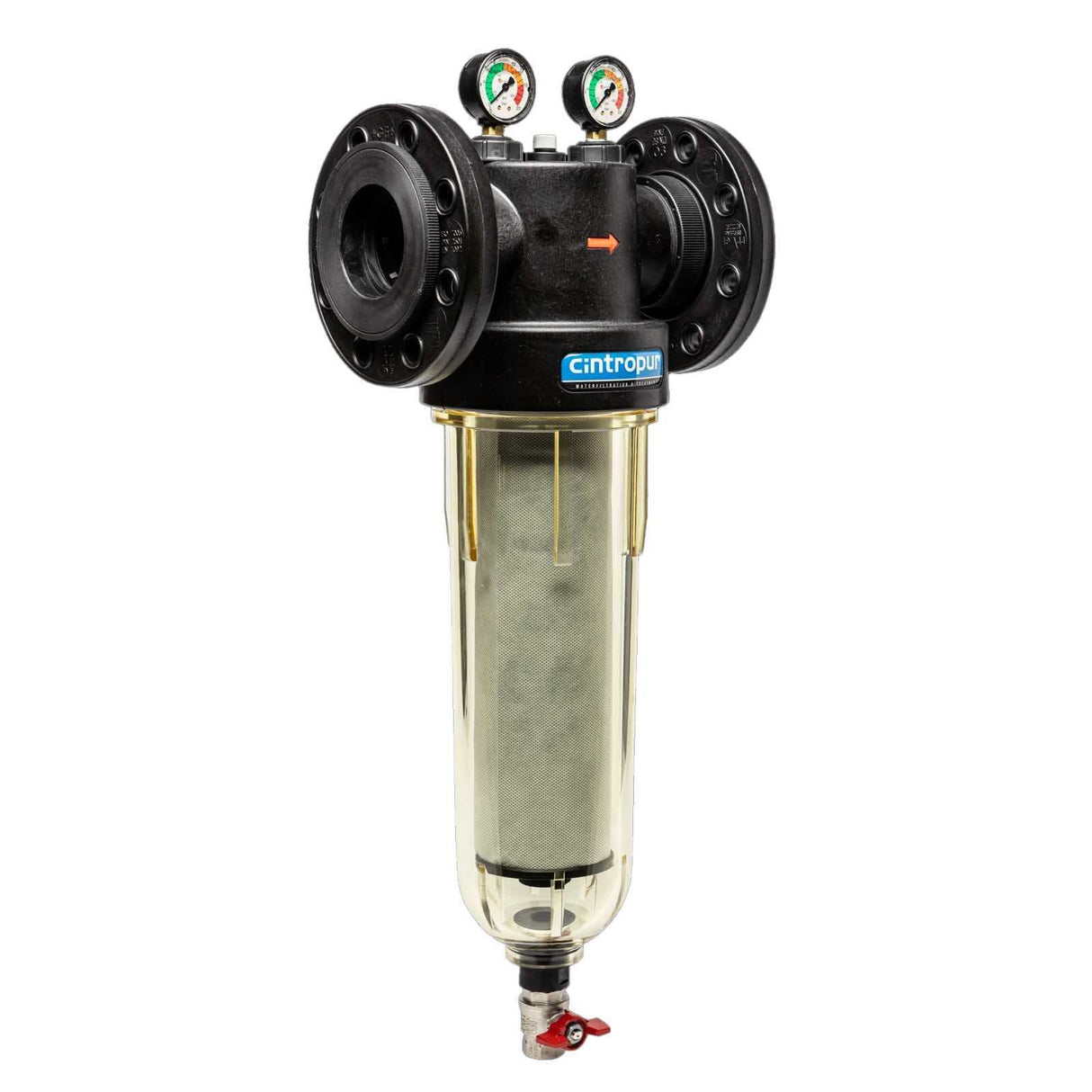

Cintropur NW 800 3" FI-0502-05

Cintropur NW 800 3" FI-0502-05

Optimize your water filtration with the Cintropur NW 800, a leading mechanical filter crafted to efficiently handle clear and slightly contaminated water.

Key Advantages

• Double-Stage Filtration: Uses centrifugal flow and a filtering sleeve to remove particles such as earth, sand, and rust.
• Outstanding Flow Rate: Capable of processing 32 m³/h at 0.2 bar differential pressure, providing superior water purification.

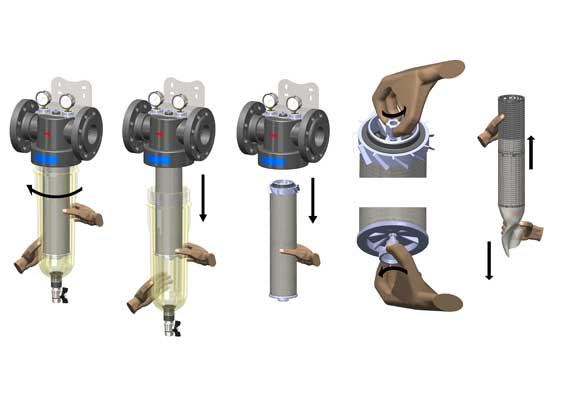

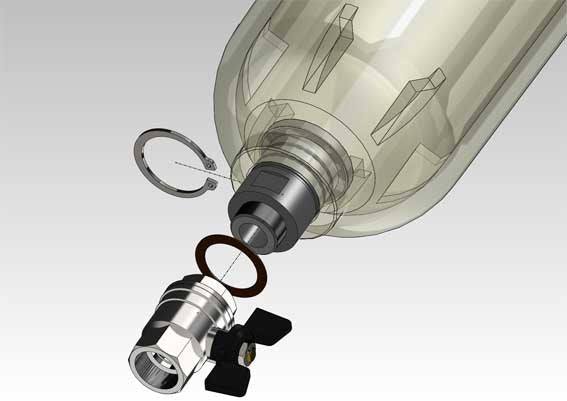

• Low Maintenance: Equipped with a convenient drain cock and O-ring system for easy rinsing and secure sealing.
• Versatile Filtration Options: Offers a wide range of filtering fineness from 5 to 300 microns, accommodating diverse filtration requirements.

Specifications

• Working Pressure: Operates effectively at 10 bar (142 psi) with a maximum pressure tolerance of 16 bar (228 psi).
• Temperature Range: Maintains efficiency in temperatures up to 50°C.

Applications

• Industrial: Ideal for protecting sanitary fittings and machine tools, suited for high-pressure systems.
• Agricultural: Suitable for watering systems, animal water filtration, and rainwater and well water treatment.
• Group Settings: Ensures reliable protection for sanitary systems in hotels, restaurants, schools, and buildings, safeguarding appliances.

Compatibility

• System Integration: Can be combined with UV and activated carbon systems using DUO and TIO® solutions to enhance water treatment capabilities.

Enhance your filtration system's performance with the Cintropur NW 800, offering exceptional efficiency and minimal maintenance across a range of applications.
