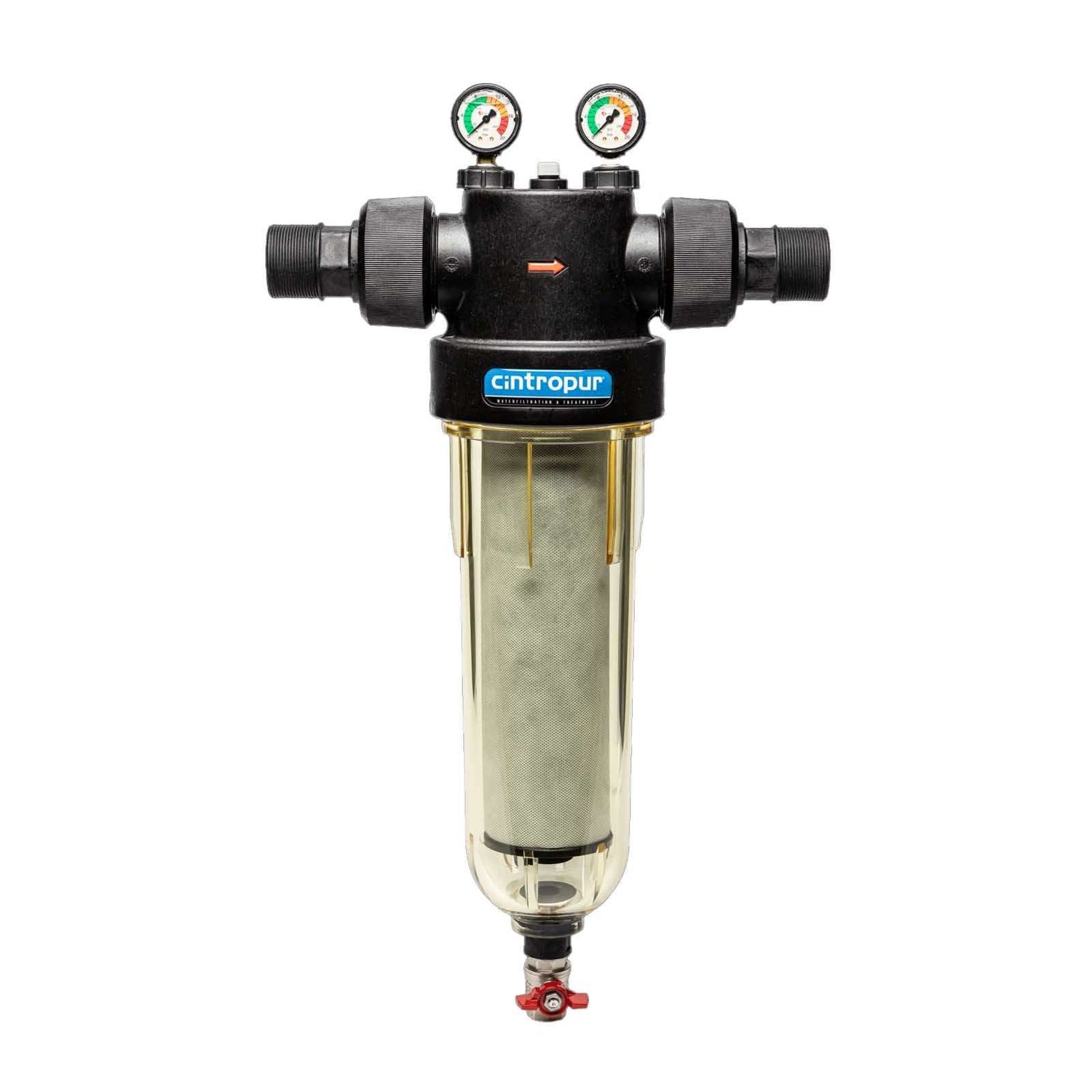

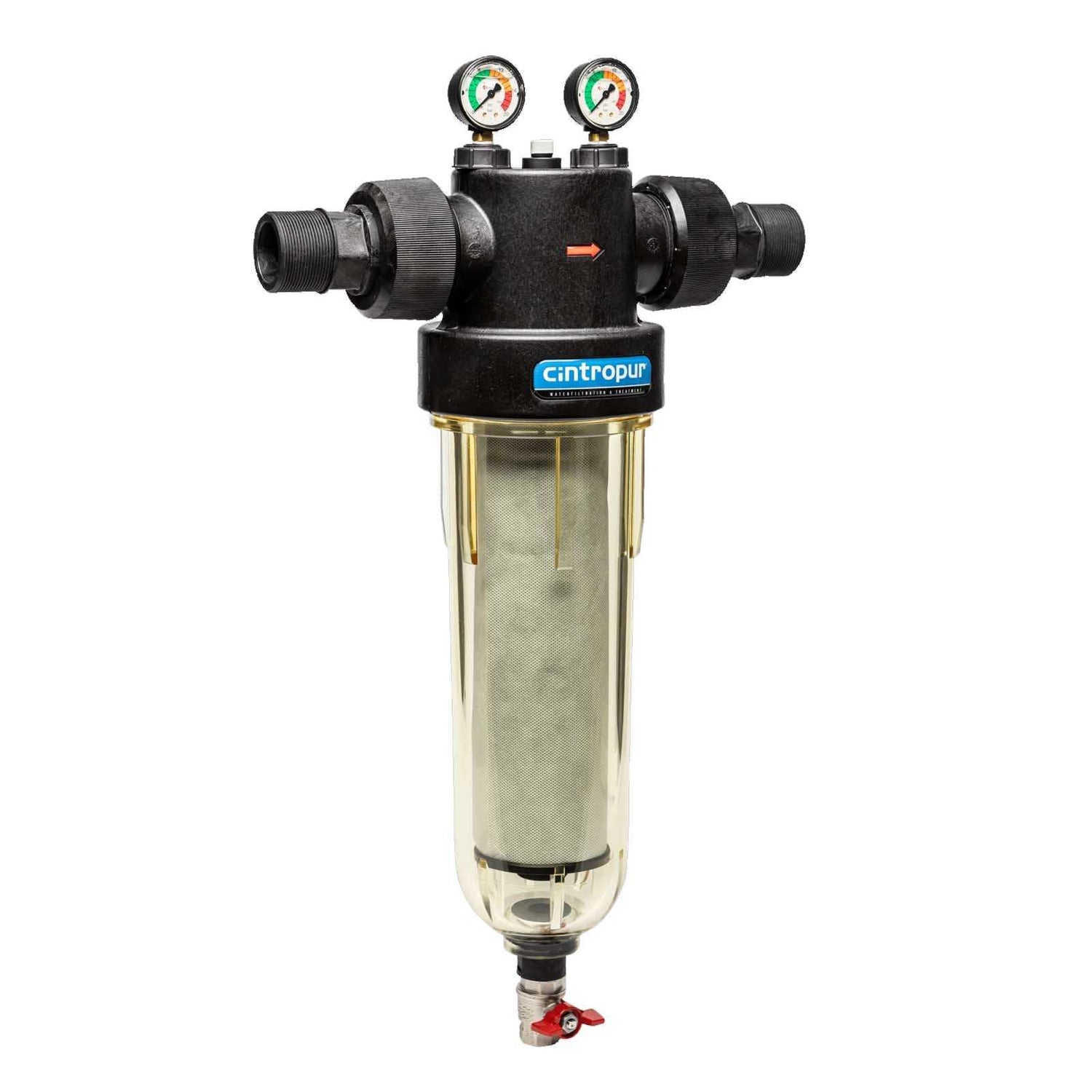

Cintropur NW 500 2" FI-0502-03

Cintropur NW 500 2" FI-0502-03

Upgrade your water filtration system with the Cintropur NW 500, a robust mechanical filter expertly designed for clear and slightly contaminated water.

Key Advantages

• Double-Stage Filtration: Combines centrifugal flow and a filtering sleeve to efficiently remove solid particles such as earth, sand, and rust.
• High Flow Rate: Ensures a powerful flow of 18 m³/h at 0.2 bar differential pressure, guaranteeing effective water processing.

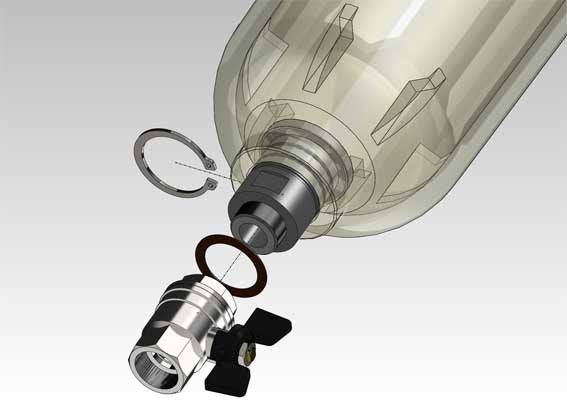

• Low Maintenance: Features a convenient drain cock for easy rinsing and an O-ring system for secure sealing, reducing maintenance needs.
• Diverse Filtration Options: Offers a variety of filtering fineness from 5 to 300 microns, adaptable to different filtration requirements.

Specifications

• Working Pressure: Operates optimally at 10 bar (142 psi) and can withstand a maximum pressure of 16 bar (228 psi).
• Temperature Range: Functions efficiently in environments up to 50°C.

Applications

• Industrial: Protects sanitary fittings and machine tools, perfect for high-pressure systems.
• Agricultural: Ideal for irrigation systems and filtering water for livestock, rainwater, and well water.
• Group Settings: Ensures the safety of sanitary installations in hotels, restaurants, schools, and other buildings, safeguarding electrical and domestic appliances.

Compatibility

• System Integration: Easily integrates with UV and activated carbon systems through DUO and TIO® solutions for enhanced water purification.

Elevate your water treatment with the Cintropur NW 500, delivering exceptional filtration and minimal upkeep across a range of applications.
