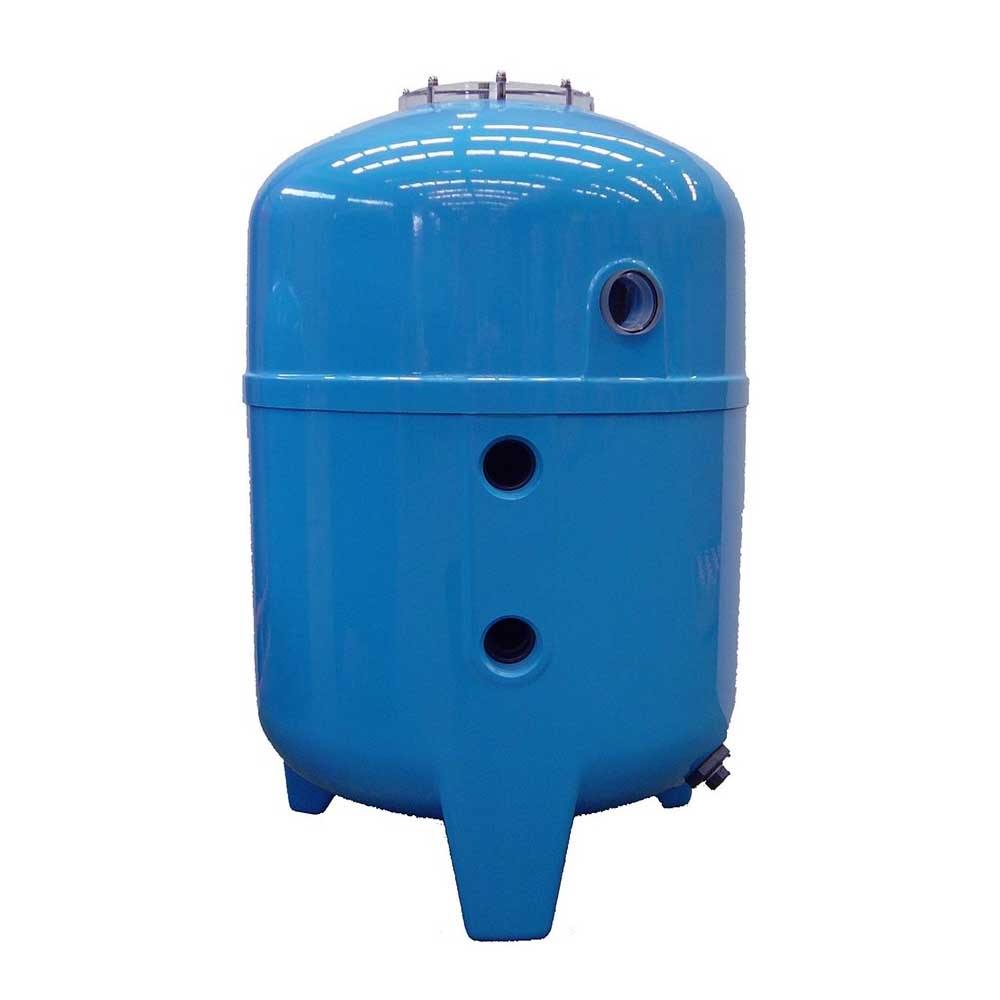

Calplas HFX Series Steel Reinforced GRP Vessel Ø 415T - 960T
Calplas HFX Series Steel Reinforced GRP Vessel Ø 415T - 960T
The Calplas HFX Series Steel Reinforced GRP Vessel Ø 415T - 960T is a high-performance filtration solution designed for industrial applications. Built using the highest quality materials and cutting-edge manufacturing standards, the HFX Series ensures durability, efficiency, and adaptability for a wide range of processes.
Engineered to meet EN 13121-3 standards, this vessel provides unmatched reliability and safety for industries seeking optimal filtration performance.
Key Features
-
Durable Construction
Manufactured from hand lay-up GRP (glass-reinforced polyester) with steel reinforcement for exceptional strength. -
Integrated Design
All threaded connections and legs are part of the vessel's structure, ensuring robust and leak-free operation. -
Temperature & Pressure Tolerance
Operates at a design temperature of 40ºC and tested at 1.5 times the design pressure for guaranteed reliability. -
Enhanced Performance
Features top and lateral distributors tailored to media or application, and offers a bed height of 500-600 mm for efficient filtration. -
Safety Standards
Manufactured and calculated according to EN 13121-3, ensuring adherence to industry benchmarks.
Additional Options
The HFX Series is customizable to meet unique industrial requirements. Choose from various options to tailor the vessel to your specific needs:
- Sightglass for monitoring filtration and backwash performance.
- Cylindrical height modifications for ad-hoc applications.
- Enhanced chemical resistance and capability for higher temperatures.
- Flexible flange connection positions for easy integration.
- Anchorage system and seismic calculations for earthquake-prone regions.
- Drinking water and food contact compatibility for safe operation in sensitive environments.
Specifications Table
| Model | Diameter (mm) | Height (mm) | Top Access (mm) | I/O Connection | Emptying | Air Relief | Area (m²) |
|---|---|---|---|---|---|---|---|
| FA-6 | 415 | 821 | 260 | 2" | 3/4" | 1/4" | 0.13 |
| FA-8 | 460 | 821 | 260 | 2" | 3/4" | 1/4" | 0.16 |
| FA-10 | 520 | 891 | 310 | 2" | 3/4" | 1/4" | 0.20 |
| FA-15 | 640 | 946 | 310 | 2" | 3/4" | 1/4" | 0.30 |
| FA-20 | 720 | 1125 | 360 | 2" | 3/4" | 1/4" | 0.40 |
| FA-30 | 840 | 1065 | 360 | 2" | 3/4" | 1/4" | 0.52 |
| FA-35 | 960 | 1135 | 360 | 2 1/2" | 3/4" | 1/4" | 0.70 |
Why Choose the HFX Series?
-
Enhanced Bed Depth
The HFX Series offers a greater bed depth compared to FA filters, improving filtration efficiency. -
Industrial-Grade Durability
Designed for demanding applications, it delivers long-lasting performance with minimal maintenance. -
Customizable Design
Adapt the vessel to suit varying industrial applications with a wide range of additional options. -
BESGO-Ready Filters
The HFX Series is designed for BESGO compatibility, offering improved automation and operational efficiency.
Invest in the Calplas HFX Series Steel Reinforced GRP Vessel Ø 415T - 960T for reliable, high-quality filtration in any industrial setting. Its exceptional build quality and flexible customization ensure it caters to even the most challenging filtration needs.
