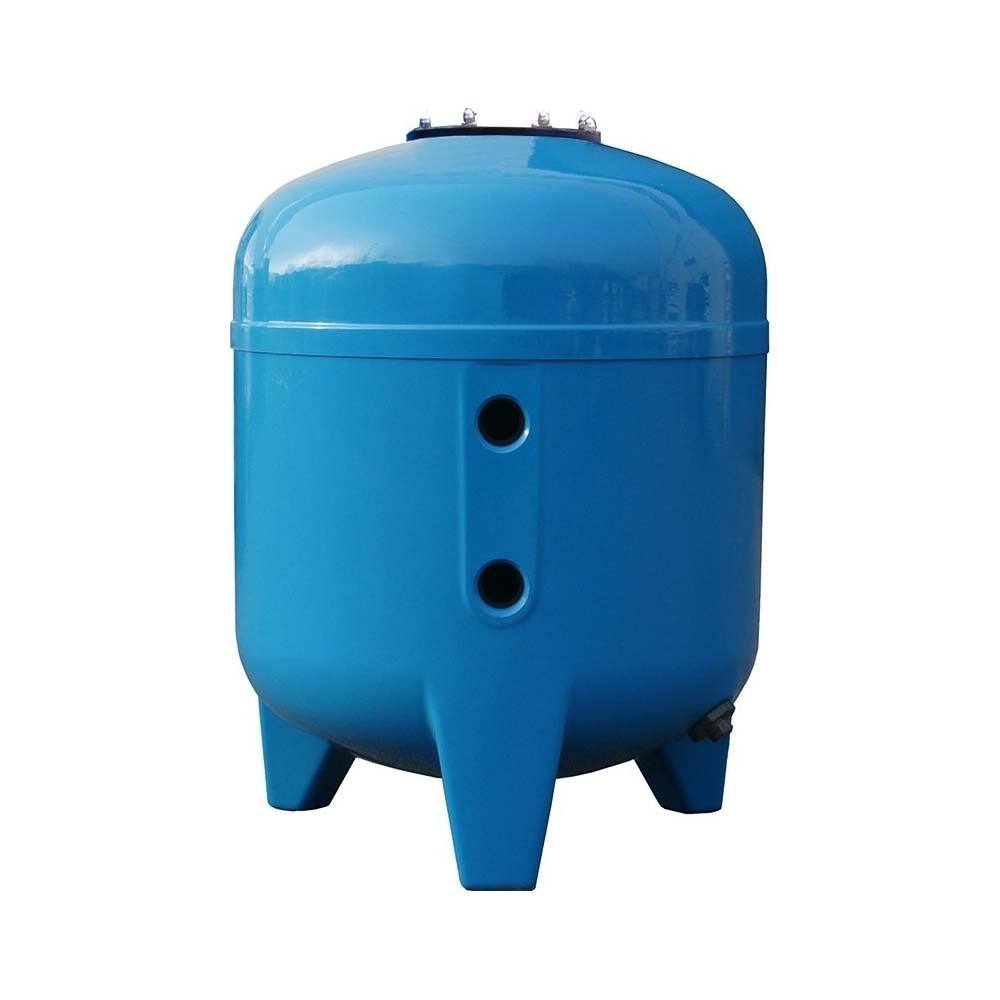

Calplas FA Series Steel Reinforced GRP Vessel Ø 415T - 960T
Calplas FA Series Steel Reinforced GRP Vessel Ø 415T - 960T
The Calplas FA Series Steel Reinforced GRP Vessel Ø 415T - 960T offers a robust and reliable solution for industrial filtration systems. Built to meet the strict EN 13121-3 standards, these vessels combine advanced materials with superior craftsmanship for high performance in demanding environments.
Key Features
- Durable Construction: Manufactured using hand lay-up polyester with fiberglass, reinforced with steel for unmatched strength and durability.
- Threaded Connections: Integrated threaded connections enhance structural integrity.
- Closed Legs: Promotes stability and ensures compatibility with filtration systems.
- High Chemical Resistance: Ideal for applications involving corrosive or aggressive substances.
- Temperature Resilience: Operates at a standard design temperature of 40ºC, with the ability to handle higher temperatures.
- Seismic Stability: Equipped with anchorage systems and designed with seismic calculations to ensure stability in earthquake-prone areas.
- Drinking Water/Food Contact Approved: Fully certified for safe use in food and beverage industries.
Versatile Performance
- Available with three design pressure options (2.5 bar, 5 bar, 7 bar) to meet diverse operational requirements.
- Advanced laterals distribution and top distributor ensure efficient filtration performance.
- Prepped for Besgo valve direct connection (sold separately), streamlining installation and reducing setup time.
Technical Specifications
The FA Series caters to various filtration requirements with seven model options. Below are the dimensions and filtration surface areas for each model:
| Model | Ø (mm) | H (mm) | O (mm) | A (mm) | B (mm) | I/O | Filter Surface (m²) |
|---|---|---|---|---|---|---|---|
| FA-6T | 415 | 730 | 190 | 260 | 190 | 2” | 0.13 |
| FA-8T | 460 | 740 | 190 | 260 | 190 | 2” | 0.16 |
| FA-10T | 520 | 800 | 190 | 310 | 190 | 2” | 0.20 |
| FA-15T | 640 | 830 | 190 | 310 | 190 | 2” | 0.30 |
| FA-20T | 720 | 930 | 190 | 360 | 190 | 2” | 0.40 |
| FA-30T | 840 | 950 | 190 | 360 | 190 | 2” | 0.52 |
| FA-35T | 960 | 1040 | 305 | 360 | 250 | 2½” | 0.70 |
Applications
The Calplas FA Series is designed for sensitive environments requiring compliance with food-grade and drinking water standards. With its robust construction and high chemical resistance, it is perfectly suited for industrial processes such as water treatment, chemical handling, and food processing.
Explore the Calplas FA Series Steel Reinforced GRP Vessel for trusted industrial filtration solutions that perform under pressure, resist corrosion, and deliver exceptional results every time.
