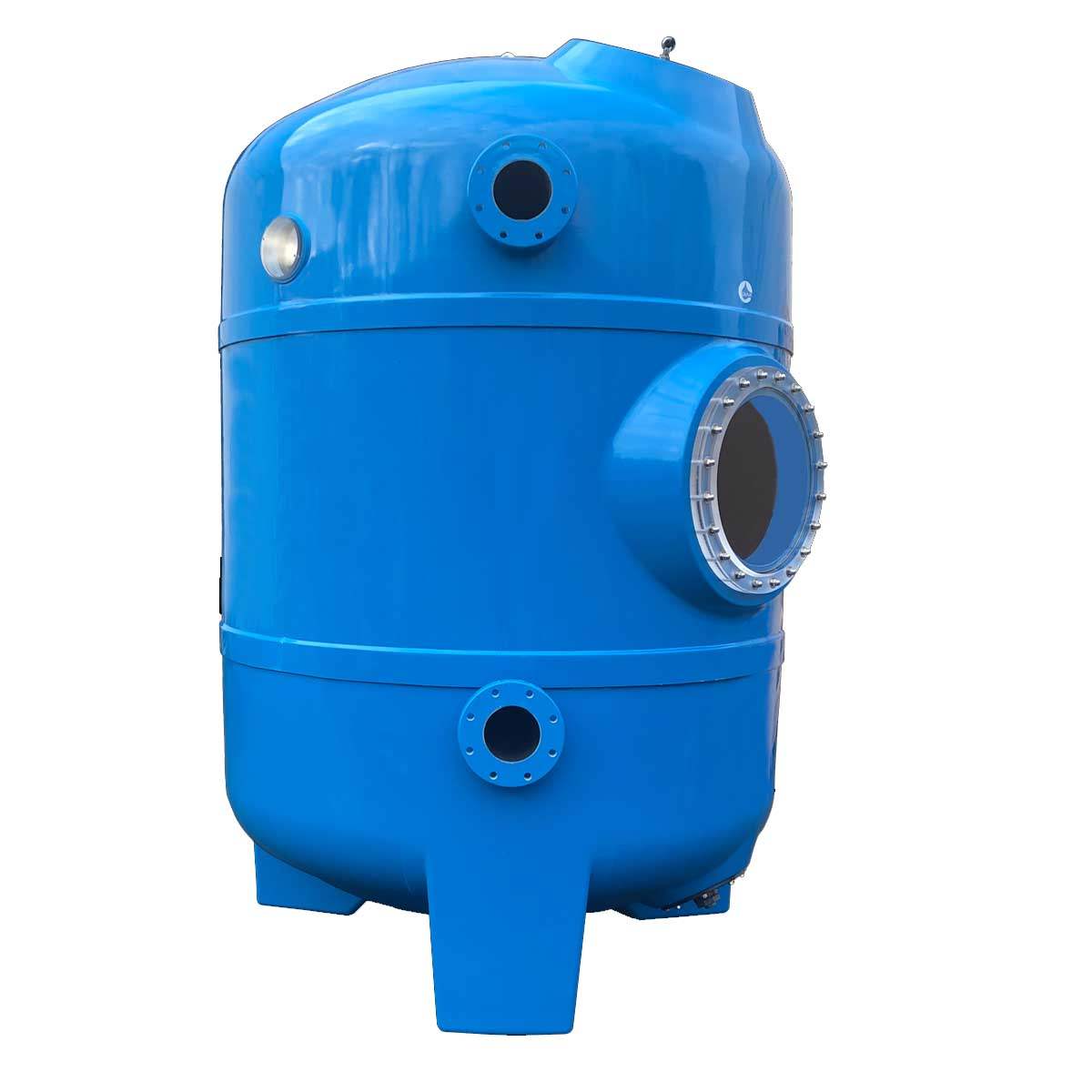

Calplas DCS Series Steel Reinforced GRP Vessel Ø 110T - 3000T
Calplas DCS Series Steel Reinforced GRP Vessel Ø 110T - 3000T
The Calplas DCS Series Steel Reinforced GRP Vessel Ø 110T - 3000T is a premium filtration solution engineered for industrial applications requiring maximum durability and performance. Manufactured to meet EN 13121-3 standards, the DCS Series offers long-term reliability and efficiency, even in demanding environments.
Its robust design, customizable options, and innovative features make it the perfect choice for industrial filtration needs.
Key Features
-
Exceptional Construction
Hand lay-up GRP (glass-reinforced polyester) reinforced with steel ensures outstanding strength and reliability. -
Integrated Flange Design
Flanged connections are structurally integrated, providing leak-free and secure installation. -
Enhanced Accessibility
Includes a top access point and lateral manhole for easy maintenance and monitoring. -
Reliable Filtration
Equipped with a special top distributor tailored for Sand/AFM media and a sightglass for process visibility. -
Temperature & Pressure Standards
Operates efficiently at a design temperature of 40°C and tested rigorously at 1.5 times the design pressure.
Additional Customization Options
The DCS Series offers a range of options to suit diverse industrial needs:
- Higher Temperature Capabilities to handle extreme conditions.
- High-Chemical Resistance for harsh environments.
- Ground Anchorage System for improved stability.
- Seismic Calculations for installations in earthquake-prone regions.
- Optional Ø500 Manhole for added accessibility.
- Drinking Water & Food Contact Safety for compliance with regulatory standards.
Specifications Table
| Model | Diameter (mm) | Height (mm) | Top Access (mm) | Manhole Access (mm) | A (mm) | B (mm) | E (mm) | I/O Connection | Filtration Surface (m²) |
|---|---|---|---|---|---|---|---|---|---|
| DCS-1010T | 1010 | 2160 | 165 | 420 | 500 | 1260 | 100 | DN80 | 0.78 |
| DCS-1160T | 1160 | 2265 | 165 | 420 | 550 | 1265 | 100 | DN100 | 1.01 |
| DCS-1260T | 1260 | 2305 | 165 | 420 | 530 | 1375 | 100 | DN100 | 1.21 |
| DCS-1440T | 1440 | 2380 | 165 | 420 | 600 | 1335 | 100 | DN100 | 1.55 |
| DCS-1640T | 1640 | 2500 | 165 | 420 | 630 | 1370 | 100 | DN125 | 2.04 |
| DCS-1840T | 1840 | 2560 | 165 | 420 | 690 | 1115 | 100 | DN125 | 2.52 |
| DCS-2040T | 2040 | 2660 | 165 | 420 | 725 | 1105 | 100 | DN150 | 3.17 |
| DCS-2210T | 2210 | 2840 | 165 | 420 | 760 | 1455 | 100 | DN200 | 3.77 |
| DCS-2340T | 2340 | 2850 | 165 | 420 | 765 | 1450 | 100 | DN200 | 4.06 |
| DCS-2550T | 2550 | 2920 | 165 | 420 | 760 | 1550 | 100 | DN200 | 4.91 |
| DCS-2800T | 2800 | 3040 | 190 | 420 | 850 | 1500 | 100 | DN250 | 5.97 |
| DCS-3000T | 3000 | 3070 | 190 | 420 | Check | 100 | DN250 | 6.90 |
Why Choose the DCS Series?
-
Robust and Dependable
The steel-reinforced GRP construction and flanged connections ensure unmatched durability and stability. -
Optimized Accessibility
Maintenance is simplified with the addition of lateral and top access points, as well as the optional Ø500 manhole. -
Tailored Solutions
Customize the vessel to meet specific industrial requirements with versatile options and configurations. -
Safety-Compliant Design
Designed to meet strict safety and quality standards, including compatibility with drinking water and food contact applications.
The Calplas DCS Series Steel Reinforced GRP Vessel Ø 110T - 3000T is your go-to solution for advanced industrial filtration. Engineered to last, it provides reliability, flexibility, and efficiency for even the most demanding applications. Make the smart choice for your filtration needs with the DCS Series.
