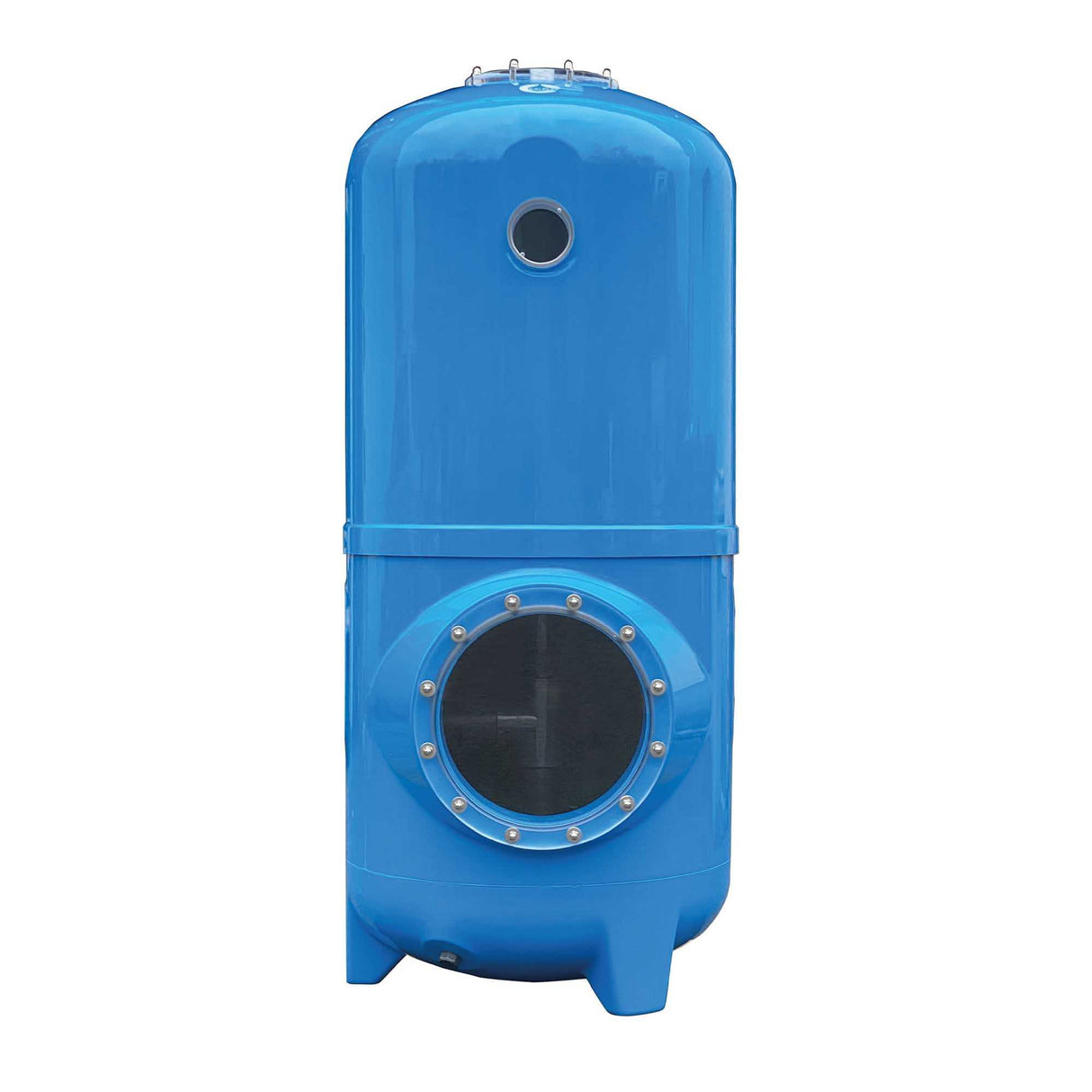

Calplas AFMP Series Steel Reinforced Vessel Ø 520T - 960T
Calplas AFMP Series Steel Reinforced Vessel Ø 520T - 960T
The Calplas AFMP Series Steel Reinforced Vessel Ø 520T - 960T offers a top-tier solution for industrial filtration, combining innovative design with uncompromising durability. Manufactured to EN 13121-3 standards, the AFMP Series is tailored for heavy-duty applications, providing reliable performance and customizable options to meet complex industrial needs.
This series guarantees exceptional filtration efficiency, thanks to its sturdy construction and advanced technology.
Key Features
-
High-Quality Construction
Built with hand lay-up GRP (glass-reinforced polyester) and reinforced with steel for long-lasting strength and reliability. -
Integrated Nozzle Plate Design
Features a steel-reinforced nozzle plate for complete reliability and optimal filtration efficiency. -
Advanced Connectivity
All threaded connections are part of the vessel structure, ensuring leak-free, solid performance. -
Integrated Access Points
Includes a lateral manhole access for maintenance ease and a sightglass for monitoring filtration processes. -
Innovative Internal Design
Includes special diffusers specifically tailored for Sand/AFM® media and large-diameter internal piping for enhanced flow. -
Tested for Safety
Operates at a design temperature of 40°C and is rigorously tested at 1.5 times its design pressure to ensure safe operation.
Additional Customization Options
The AFMP Series caters to diverse industrial requirements with a range of customizable features, including:
- High-Chemical Resistance for harsh filtration environments.
- Higher Temperature Tolerances for demanding applications.
- Flexible Flange Connections for adaptable installations.
- Anchorage System & Seismic Calculations for stability in earthquake-prone areas.
- Drinking Water & Food Safety Compatibility to meet strict regulatory standards.
- BESGO Valve Integration (optional, ordered separately) for enhanced automation and efficiency.
Orientation Options
The series offers two versatile orientations for maximum adaptability:
- Position 6 (Standard)
- Position 2 (Alternative)
This flexibility makes the AFMP Series suitable for various industrial setups and layouts.
Specifications Table
| Model | Diameter (mm) | Height (mm) | Top Access (mm) | Manhole Access (mm) | A (mm) | B (mm) | E (mm) | I/O Connection | Filtration Surface (m²) |
|---|---|---|---|---|---|---|---|---|---|
| AFMP-520T | 520 | 1400 | 190 | 215 | 405 | 190 | 5 | 2" | 0.20 |
| AFMP-640T | 640 | 1440 | 190 | 305 | 420 | 190 | 5 | 2" | 0.30 |
| AFMP-720T | 720 | 1440 | 190 | 305 | 420 | 190 | 5 | 2" | 0.40 |
| AFMP-840T | 840 | 1460 | 190 | 305 | 440 | 190 | 5 | 2" | 0.52 |
| AFMP-960T | 960 | 1520 | 205 | 355 | 405 | 250 | 5 | 2 ½" | 0.70 |
Why Choose the AFMP Series?
-
Unmatched Durability
Built with steel-reinforced GRP and advanced nozzle plate technology, ensuring stability and long-term reliability. -
Optimized Performance
Designed with a specialized diffuser for Sand/AFM® media, delivering outstanding filtration results. -
Customizable Options
Tailor the vessel to your unique industrial needs with a variety of additional features and configurations available. -
Ease of Maintenance
Lateral manhole access and an integrated sightglass make monitoring and maintenance simple and hassle-free.
The Calplas AFMP Series Steel Reinforced Vessel Ø 520T - 960T is an industrial-grade filtration system designed to combine cutting-edge engineering with premium customization. Whether you're seeking versatility, durability, or efficiency, the AFMP Series provides the ideal solution for advanced filtration requirements.
