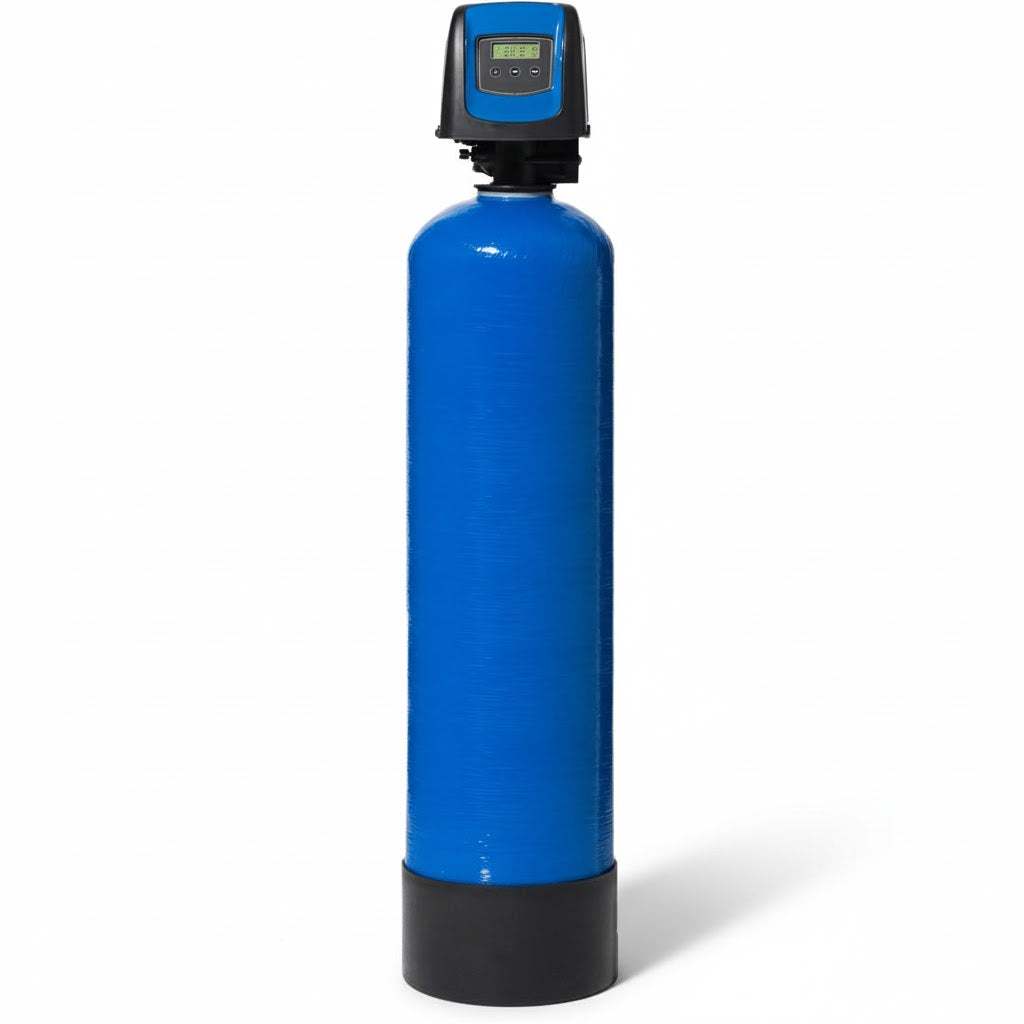

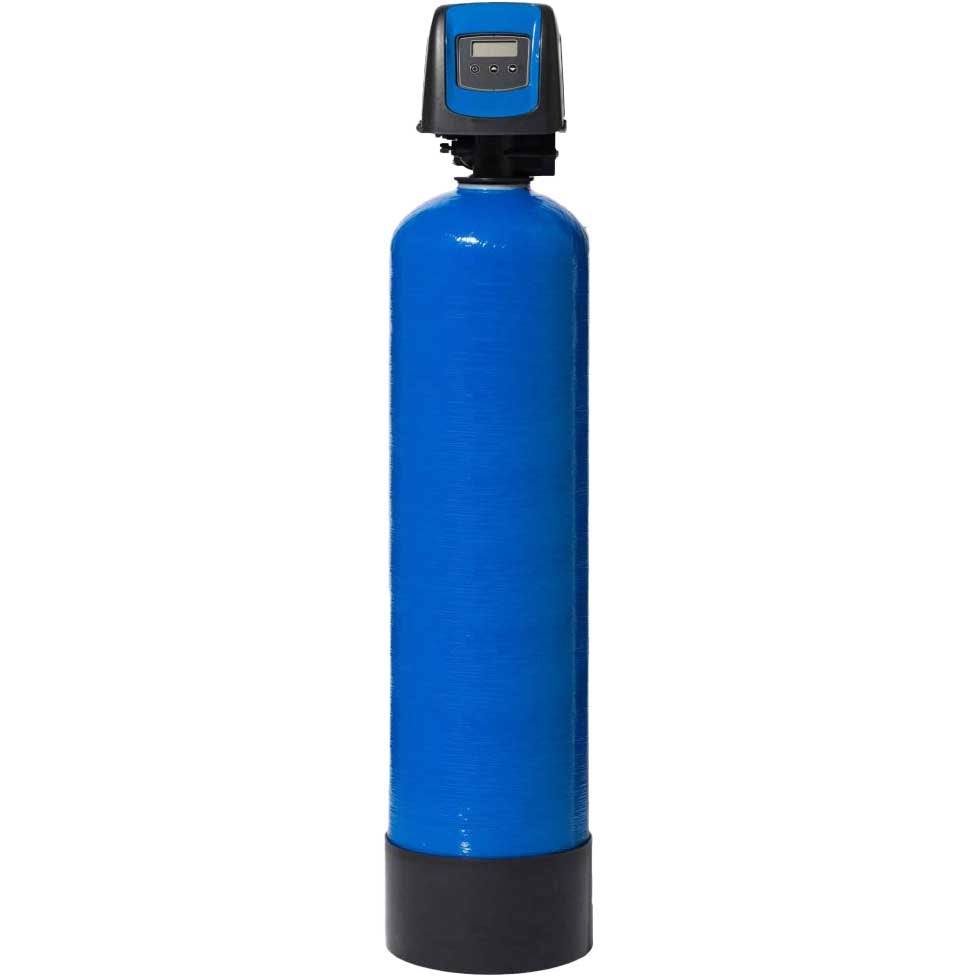

Activated Carbon Filter with Fleck Valve (0.4 to 20 m3/hr)

Activated Carbon Filter with Fleck Valve (0.4 to 20 m³/hr)

Enhance your water treatment system with the Activated Carbon Filter with Fleck Valve (0.4 to 20 m³/hr), supplied by GAPS Water Treatment. This advanced filtration system utilizes activated carbon to effectively remove chlorine, taste, odour, and organics, making it ideal for various applications.

Key Features:

• Activated Carbon Filter: Granular Activated Carbon (GAC) filters efficiently remove chlorine, taste, odour, and organics. Bone charcoal can also reduce some heavy metals. Available in coconut, coal, bone, or wood-based options.
• Fleck Control Valve: The system includes a reliable Fleck control valve for efficient operation.
• Flow Rates: Various sizes available designed for flow rates between 0.4 to 20 m³/hr. Flow is based on dichlorination and should be reduced to 20% for colour.

Partially Assembled for Convenience:

This unit is supplied partially assembled for shipping. Some assembly will be required upon arrival. The kit includes:

• Fleck Control Head
• Vessel
• 207c Activated Carbon
• Gravel

Benefits of Activated Carbon:

• Activated Carbon Filter: Provides excellent filtration by removing impurities and improving water taste and odour.
• Activated Carbon: Ensures better taste and odour, providing high-quality water for various uses.
• Activated Carbon Filtration: Versatile and suitable for commercial and industrial applications.

Upgrade your water filtration system with the Activated Carbon Filter with Fleck Valve, supplied by GAPS Water Treatment. Experience the superior performance and reliability of activated carbon filtration in every application11

THIS KIT MUST BE PARTIALLY ASSEMBLED AND PROGRAMMED IN OUR WORK SHOP - CONTACT US FOR LEAD TIME

General conditions for installation

Electrical Rating : 230-24V / 50 Hz
Power Rating : 55 watts
Minimum Inlet Pressure : 200 kPa ( 2 Bar )
Maximum Inlet Pressure : 700 kPa ( 7 Bar )
Vacuum : Not permitted
Average Pressure Loss : 100 kPa ( 1 Bar )
Maximum Water Temperature : 43ºc
Operating Conditions : Dissolved Oxygen (DO) content must be equal to at least 15% of the iron (or iron and manganese) content

Media
Type : Coconut Shell Carbon
3 - 5mm Support Gravel
Life Span : Dependent on frequency of backwashing and site conditions

The No By Pass (NBP) option stops water from bypassing the filter during the flush cycle.
