Treating hard water with an ion exchange water softener

What is hard water?

Hard water is water that has a high concentration of dissolved minerals, primarily calcium and magnesium. These minerals are often picked up as the water passes through limestone, chalk, or gypsum.

Here are some common signs of hard water:

• Scale buildup: White or yellowish deposits on fixtures, appliances, and pipes.
• Soap scum: Difficulty lathering with soap or shampoo.
• Dry skin and hair: Hard water can leave skin and hair feeling dry and brittle.
• Stained laundry: Hard water can cause stains on fabrics.

While hard water is generally safe to drink, it can be inconvenient and can cause problems with appliances. If you suspect you have hard water, it's worth considering a water softener to reduce the mineral content.

Hard water can cause a variety of problems in industrial settings, including:

1. Scale buildup: Scale buildup is one of the most common issues associated with hard water in industrial settings. The calcium and magnesium minerals in hard water can form deposits on pipes, valves, and other equipment. This can reduce water flow, increase energy consumption, and even cause equipment failures.
2. Corrosion: Hard water can also lead to corrosion. The minerals in hard water can react with metals, causing them to corrode and deteriorate. This can damage equipment, reduce its lifespan, and increase maintenance costs.
3. Boiler problems: Hard water can be particularly problematic for boilers. The minerals in hard water can form deposits on the boiler's heat exchanger, reducing its efficiency and increasing the risk of a boiler failure.
4. Process disruptions: Hard water can disrupt industrial processes. For example, hard water can interfere with the dyeing process in the textile industry, causing uneven color results.
5. Increased costs: Hard water can lead to increased costs for businesses. The costs of repairing damaged equipment, replacing parts, and cleaning up scale buildup can be significant.
6. Environmental concerns: In some cases, hard water can also have environmental implications. For example, hard water can contribute to the formation of scale in cooling towers, which can reduce their efficiency and increase water consumption.

To address the problems associated with hard water in industrial settings, it is often necessary to treat the water using a water softener or other treatment methods. This can help to reduce the mineral content of the water, preventing scale buildup and corrosion.

How do we measure water hardness?

Titration: This is a common laboratory method involving the addition of a known concentration of a chelating agent (like EDTA) to a water sample. The chelating agent binds to the calcium and magnesium ions in the water. The endpoint of the titration, when all the ions have been bound, is determined using an indicator. The volume of the chelating agent used is directly related to the hardness of the water.

Hardness testing strips: These are commercially available strips that change colour based on the concentration of calcium and magnesium ions in the water. They provide a quick, approximate measurement of water hardness, making them suitable for home use.

Reagent Drop Test Kit: These kits typically contain one or two chemical reagents and a small measuring vial. By adding drops of the reagent to your water sample and observing the colour change, you can estimate the water hardness with a margin of error of approximately 10-20 ppm calcium carbonate. The specific accuracy depends on the type of test included in the kit.

Yes/NO Kits: Hardness Yes/No kits use a colour indicator to quickly determine if your water is hard or soft. These kits are primarily used to assess the effectiveness of a water softener.

Water conductivity meters: These measure the ability of water to conduct an electrical current. This ability is primarily determined by the presence of dissolved ions, such as salts and minerals.  While the figure provided shows the total dissolved minerals in the water, hardness often constitutes a significant portion. Therefore, measuring conductivity can give you a general idea of water quality. However, since water softeners operate by exchanging hardness ions for sodium ions, a conductivity meter may not accurately reflect the effectiveness of the softener. This is because the sodium ions released by the softener can increase conductivity, even if the hardness has been reduced.

What are our units of measurement for hardness?

Hardness Units and Conversion

Hardness, a measure of dissolved calcium and magnesium ions, can be expressed in various units:

• Parts per million (ppm): Equivalent to milligrams per liter (mg/L).
• Grains per gallon (gpg): Commonly used in the USA.
• Degrees of general hardness (°dH or dGH): Primarily used in Europe.
• Millimoles per liter (mmol/L): A unit of concentration.
• French degrees of general hardness (°fH or fGH): Used in France.
• Clark degrees (°Clark or °e): Similar to grains per gallon but using imperial gallons.

Common Hardness Ranges:

• Soft: 0-60 ppm CaCO3
• Moderately hard: 61-120 ppm CaCO3
• Hard: 121-180 ppm CaCO3
• Very hard: Over 180 ppm CaCO3

How does an ion exchange water softener work?

Ion exchange water softeners work by replacing the hardness-causing minerals, primarily calcium and magnesium ions, with sodium or potassium ions. This process is achieved using a resin bed, which is a porous material containing ion exchange sites.

Here's a breakdown of how it works:

1. Hard Water Entry: Hard water enters the softener and flows through the resin bed.
2. Ion Exchange: The calcium and magnesium ions in the hard water are attracted to the resin sites and exchange places with the sodium or potassium ions already attached to the resin.
3. Soft Water Exit: The water now contains sodium or potassium ions instead of the hardness-causing minerals, making it soft.
4. Regeneration: Over time, the resin bed becomes saturated with calcium and magnesium ions. To regenerate the resin, a concentrated salt brine solution is passed through the bed. The high concentration of sodium or potassium ions in the brine forces the calcium and magnesium ions off the resin sites, regenerating the bed for future use.

Key Points:

• Resin Bed: The heart of the softener, containing ion exchange sites.
• Salt Regeneration: Periodically required to maintain the softener's effectiveness.
• Sodium or Potassium: The ions used to replace hardness-causing minerals.
• Water Softening: Reduces scale buildup, improves soap lathering, and protects appliances.

By understanding how ion exchange water softeners work, you can better appreciate their benefits and make informed decisions about their use in your home or business.

What are the components of an ion exchange water softener?

An ion exchange water softener typically consists of the following components:

1. Resin Tank: This is the main component where the ion exchange resin is housed. The resin is a porous material with ion exchange sites that facilitate the exchange of hardness-causing ions with sodium or potassium ions.
2. Brine Tank: This tank stores a concentrated salt brine solution used to regenerate the resin bed. The salt brine is typically composed of sodium chloride (common table salt).
3. Control Valve: This valve controls the flow of water through the softener and initiates the regeneration process. It is often programmable to schedule regenerations based on water usage or time.
4. Distribution Manifold: This component distributes the incoming hard water evenly across the resin bed for optimal ion exchange.
5. Salt Injector: This device injects the salt brine solution into the softener during the regeneration process.
6. Bypass Valve: This valve allows for bypassing the softener if necessary, such as during maintenance or in case of a malfunction.

These components work together to effectively remove hardness-causing minerals from water, providing soft water for various household and industrial applications.

What is the Regeneration Process?

Regeneration is a crucial process in ion exchange water softeners that restores the resin bed's ability to remove hardness-causing minerals. It involves flushing the resin bed with a concentrated salt brine solution.

Here's a step-by-step breakdown of the regeneration process:

1. Backwash: The softener first undergoes a backwash cycle to remove any accumulated dirt or debris from the resin bed.
2. Brine Injection: A concentrated salt brine solution is injected into the softener. The high concentration of sodium or potassium ions in the brine competes with the calcium and magnesium ions that have become trapped on the resin sites.
3. Rinse: The softener is then rinsed to remove any remaining brine and the displaced hardness-causing ions.
4. Service: After the regeneration process is complete, the softener is ready to return to service, providing soft water to the household or industrial application.

The frequency of regeneration depends on several factors, including:

• Water hardness: The higher the hardness of the incoming water, the more frequent regeneration is required.
• Water usage: The amount of water consumed will determine how quickly the resin bed becomes saturated with hardness-causing minerals.
• Softener size: Larger softeners can handle more water before requiring regeneration.
• Salt concentration: The concentration of the salt brine solution can affect the efficiency of the regeneration process.

Regular regeneration is essential to maintain the effectiveness of an ion exchange water softener and ensure a continuous supply of soft water.

Sizing a Commercial Ion Exchange Water Softener

Sizing a commercial ion exchange water softener depends on several factors, including:

1. Water Hardness:

• The higher the hardness level (measured in parts per million or grains per gallon), the more resin is needed to remove the hardness.

2. Flow Rate:

• The rate at which water flows through the softener will determine the size of the resin bed required. Higher flow rates necessitate larger softeners.

3. Desired Hardness Level:

• The desired output hardness level will influence the softener's size. If a very low hardness level is required, a larger softener may be needed.

4. Regeneration Frequency:

• The frequency of regeneration depends on water hardness, flow rate, and desired hardness level. More frequent regenerations may require a larger softener.

5. Service Interval:

• The desired time between regenerations (service interval) will also impact the softener's size. Shorter service intervals may necessitate a larger softener.

6. Peak Flow Rate:

• Consider the maximum water flow rate during peak usage periods. The softener should be able to handle this peak flow without exceeding its capacity.

7. Future Growth:

• If you anticipate future water usage increases, it's advisable to size the softener with some capacity to accommodate growth.

Professional Consultation:

• For complex applications or large-scale installations, consulting with a water treatment specialist such as GAPS Water Treatment is recommended. We can assess your specific needs and provide expert guidance on sizing the softener.

Key Considerations:

• Efficiency: Ensure the softener operates efficiently to minimize water and salt consumption.
• Maintenance: Consider the ease of maintenance and the availability of replacement parts.
• Cost: Evaluate the initial purchase cost, ongoing operating costs (salt, electricity), and maintenance expenses.

By carefully considering these factors and utilizing available resources, you can select a commercial ion exchange water softener that meets your specific requirements and provides optimal performance.

GAPS Water Treatment is your comprehensive water treatment partner. We offer expert services from initial equipment sizing and cost estimation to ongoing troubleshooting and support. Our extensive inventory includes parts from leading manufacturers like Clack, FleckAutorol,Siata,, and ensuring efficient and reliable solutions for your water treatment needs.

For domestic installations, space constraints may limit the size of the softener you can accommodate. GAPS Water Treatment offers expert guidance to help you select the optimal softener based on your specific needs and available space. Our ongoing support ensures you have the information and assistance required to make an informed decision and address any future challenges.

Metered vs. Time-Controlled Water Softeners

Metered water softeners and time-controlled water softeners are two primary types of water softeners used to remove hardness-causing minerals from water. They differ primarily in how they determine when to regenerate the resin bed.

Metered Water Softeners

• Regeneration Trigger: These softeners regenerate based on the volume of water that has passed through the unit. A meter measures the water flow, and when a predetermined volume is reached, the softener initiates regeneration.
• Benefits: More efficient, as regeneration occurs only when needed, reducing salt and water consumption.
• Drawbacks: Requires a meter and may be more expensive to install.

Time-Controlled Water Softeners

• Regeneration Trigger: These softeners regenerate based on a predetermined time interval. They are typically set to regenerate at a specific time of day or night.
• Benefits: Simpler and often less expensive to install.
• Drawbacks: May regenerate more frequently than necessary, leading to higher salt and water consumption.

Choosing the Right Softener:

• Water Usage: If your water usage is relatively consistent, a time-controlled softener might be sufficient. However, if usage fluctuates significantly, a metered softener can provide more efficient regeneration.
• Cost: Metered softeners may have a higher initial cost due to the additional meter.
• Environmental Considerations: Metered softeners generally reduce salt and water consumption, making them a more environmentally friendly option.

Ultimately, the best choice between a metered and time-controlled water softener depends on your specific needs and preferences. Consulting with GAPS Water Treatment can help you make an informed decision.

Simplex vs. Duplex Water Softeners

Simplex water softeners have a single resin tank and operate in a continuous cycle. This means that the softener is always in service, and regeneration occurs while the softener is still providing soft water.

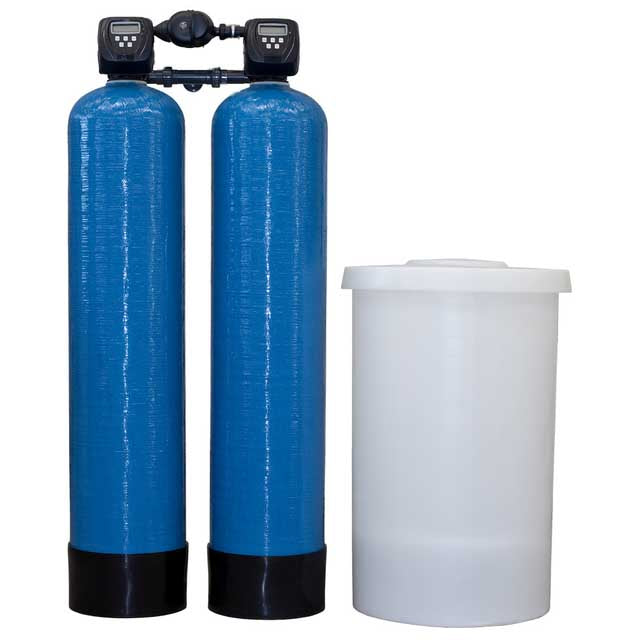

Duplex water softeners have two resin tanks that operate in an alternating cycle. While one tank is providing soft water, the other is undergoing regeneration. This allows for a continuous supply of soft water without interruptions.

Key Differences:

Feature	Simplex Softener	Duplex Softener
Resin Tanks	Single	Double
Operation	Continuous	Alternating
Regeneration	During service	Off-cycle
Continuous Supply	No	Yes



Advantages of Duplex Softeners:

• Continuous Soft Water: Provides a uninterrupted supply of soft water, ideal for applications where a constant flow is critical.
• Higher Flow Rates: Can handle higher flow rates due to the two-tank system.
• Reduced Regeneration Time: Since regeneration occurs off-cycle, it can be scheduled during off-peak hours to minimize disruptions.

Disadvantages of Duplex Softeners:

• Higher Cost: Duplex softeners are generally more expensive to purchase and install due to the additional components.
• Increased Complexity: The two-tank system can be more complex to maintain and troubleshoot.

Choosing Between Simplex and Duplex:

The choice between a simplex and duplex softener depends on your specific needs and requirements. Simplex softeners are often suitable for residential applications with moderate water usage. Duplex softeners are better suited for commercial applications or large households with high water demand or a need for continuous soft water supply.

Factors to consider when choosing:

• Water Usage: The volume of water used daily.
• Application: Whether the softener will be used for residential or commercial purposes.
• Desired Hardness Level: The required level of water hardness reduction.
• Budget: The cost of the softener and ongoing maintenance.

By carefully evaluating these factors, you can select the most appropriate type of water softener for your needs.

What Kind of Salt Should I use?

GAPS Water Treatment water softeners use either tablet or granular salt. While both options are effective, tablet salt is generally cleaner to handle. Some brands, like Kinetico, offer block salt, which is a larger, brick-sized salt form. However, block salt is incompatible with standard water softeners.

How much electricity does a softener use?

Domestic softeners consume a minimal amount of electricity, comparable to a kitchen clock. The power is primarily used to operate the internal clock and valve during regeneration. Even large commercial systems have modest power requirements, typically around 0.5 amps or 6 watts.

Here are a few alternative options to a water softener offered by GAPS Water Treatment:

Polyphosphate crystals

Polyphosphate crystals are a common type of scale inhibitor used in water treatment systems. They work by preventing the formation of scale, which is a deposit of minerals like calcium and magnesium carbonate that can build up on surfaces like pipes, fixtures, and appliances.

How polyphosphate crystals work:

• Crystal Dispersion: When added to water, polyphosphate crystals disperse and release phosphate ions.
• Scale Inhibition: These phosphate ions bind to calcium and magnesium ions in the water, preventing them from forming scale crystals.
• Crystal Growth: The phosphate ions can also promote the growth of calcium phosphate crystals, which are less likely to adhere to surfaces and are easier to remove.

Benefits of using polyphosphate crystals:

• Effective scale prevention: Polyphosphate crystals can effectively prevent scale formation in a variety of water treatment applications.
• Cost-effective: They are generally a relatively affordable option for scale inhibition.
• Easy to use: Polyphosphate crystals can be easily added to water treatment systems.

Limitations of using polyphosphate crystals:

• Phosphate buildup: Over time, excessive phosphate buildup can contribute to eutrophication, a process that can lead to algal blooms in water bodies.
• Ineffective in high-hardness water: Polyphosphate crystals may not be as effective in preventing scale formation in water with very high levels of hardness.
• Compatibility issues: Polyphosphate crystals may not be compatible with certain water treatment chemicals or systems.

NeutrAcalC

NeutrAcalC is a scale inhibiting water treatment technology designed to protect plumbing components, pipes, fixtures, valves, fittings, hot tanks, and more from the effects of limescale. It's a salt-free alternative to traditional water softening methods.

How it works:

• Media Templates: NeutrAcalC uses specially designed beads with imperfections called media templates.
• Mineral Attraction: These templates attract minerals like calcium and magnesium carbonates.
• Crystal Formation: The minerals combine to form microscopic crystals.
• Suspension: These crystals remain suspended in the water, reducing their ability to form scale.

Key benefits:

• Scale prevention: Effectively prevents scale buildup.
• No salt required: A salt-free solution, avoiding the need for regeneration.
• Low maintenance: Requires minimal maintenance.
• Compatible with various systems: Can be used in both residential and commercial settings.

Applications:

• Domestic use: Homes, apartments, and condos.
• Commercial use: Hotels, restaurants, and industrial facilities.

If you're looking for a way to prevent scale buildup in your water system without using traditional water softeners, NeutrAcalC might be a suitable option.
